Husqvarna PP11536KA (1995) Tractor

Model: PP11536KA (1995)

Back To Assemblies

Save Part Not Listed?
product name

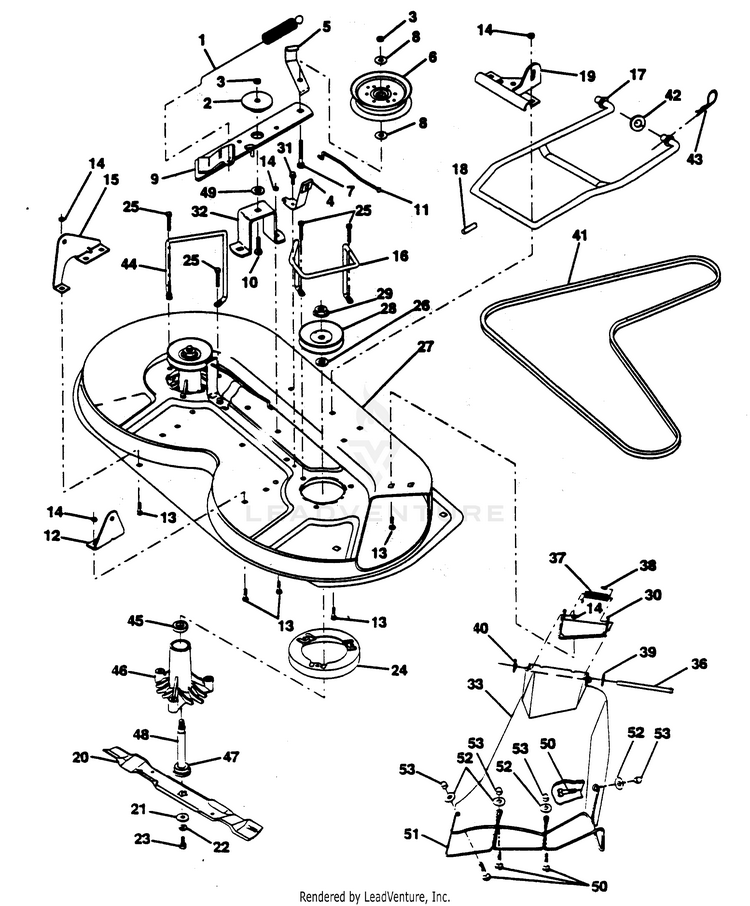

MOWER DECK

...
...
1
Spring, Mower Clutch HUS-532140064
...
2
Spacer Retainer HUS-532165723
...
3
Nut, Crownlock 3/8-16 HUS-873680600
...
4
Brake Asm. HUS-532130840
...
5
Guide, Belt Idler HUS-532131251
...
6
Pulley, Flat Idler HUS-532121316
...
7
Bolt, Carr. 3/8-16 x 1-3/4 Gr. 5 HUS-872110616
...
8
WASHER HUS-734117201
...
9
IDLER ARM ASSY HUS-532140092
...
10
Bolt, Carriage 3/8-16 x 1-1/4 HUS-872140610
...
11
Rod, Brake HUS-532130841
...
12
Bracket, Lift R. H. Rear HUS-532127356
...
13
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
14
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
15
Bracket, Lift L. H. Rear HUS-532127357
...
16
BELT KEEPER HUS-532153298
...
17
Link, Asm. Mower Stabilizer HUS-532128508
...
18
Pin, Drive HUS-532128511
...
19
Bracket, Asm. Front HUS-532127380
...
20
Blade Mulching HUS-532140101
...
21
Washer, Hard HUS-532140296
...
22
WASHER.3/8 HUS-539990118
...
23
Bolt 3/8-24 x 1-1/4 Gr. 8 HUS-532850857
...
24
Stripper, Mower HUS-532174493
...
25
BOLT, MANDREL HUS-532173984
...
26
SPACER, MANDREL HUS-532187690
...
27
KIT.HOUSING.MOWER.36.LR HUS-532174082
...
28
MANDREL PULLEY HUS-532173434
...
29
KIT.NUT.FLANGE HUS-532139729
...
30
Bracket, Asm. Deflector HUS-532136631
...
31
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
32
Arm, Support Idler Mower HUS-532122051
...
33
SHIELD.DEFL.MWR.36" HUS-532175029
...
36
Rod, Hinge HUS-532121980
...
37
Spring, Torsion Deflector HUS-532123713
...
38
Cap, Sleeve HUS-532105304
...
39
WASHER - 15X7.3X1.6 HUS-734116301
...
40
Pushnut HUS-532110452
...
41
V-Belt HUS-532131264
...
42
Washer HUS-532052160
...
43
SPRING RETAINER HUS-532003146
...
44
Keeper, L. H. HUS-532140608
...
45
Bearing HUS-532110485
...
46
Housing Mandrel Vented HUS-532128774
...
47
BALL-BEARING 6204-2RS HUS-738220419
...
48
KIT MANDREL W/NUT HUS-532137646
...
49
Washer Hardened HUS-532178515
...
50
Bolt, RdHd Sqnk M5 x 0.8 x 16 HUS-532145989
...
51
Guard, Dftr. Mwr. 36 Tuv HUS-532136383
...
52
Washer 7/32 x 7/16 x 18 HUS-819070718
...
53
Nut, Acom M5 x 0.8 HUS-532145990
...
xx
Mandrel Asm. (Inc.22-23, 26, 29 & 45-48) Not Shown. HUS-532130794
...
xx
DECK SERVICE.36" Not Shown. HUS-532156866
