Husqvarna PP11536KA (1995) Tractor

Model: PP11536KA (1995)

Back To Assemblies

Save Part Not Listed?
product name

ELECTRICAL

...
...
1
Nut, Hex Keps 1/4-20 HUS-873640400
...
2
Assembly, Cable HUS-532108423
...
3
BATTERY.DRY.30.AMP HUS-532123899
...
5
Bracket, Switch HUS-532108236
...
6
SWITCH.N.C *SUBS/1* HUS-539101080
...
8
Screw, Hex Hd. Tap #10-24 x 1/2 HUS-817021008
...
9
Key Ign Molded Generic HUS-532140401
...
10
Cover, Key Ignition HUS-532141226
...
11
KIT-WASHER/NUT HUS-532145774
...
12
IGNITION SWITCH KIT HUS-532158913
...
15
SWITCH.SNAPMOUNT.NC HUS-532421062
...
17
Fuse HUS-532108824
...
18
Assembly, Cable HUS-532128353
...
19
Hamess, Ignition HUS-532146063
...
20
NUT.HEX..25-20.UNC HUS-532050675
...
21
WASHER, LOCK 1/4 HUS-810040400
...
22
HCS.1/4-20.X1/2 HUS-539990071
...
24
Cover, Terminal Red HUS-532154336
...
25
Solenoid HUS-532145653
...
26
Bolt, Hex Hd. 1/4-20 UNC x 3/4 HUS-874760412
...
27
Washer 9/32 x 5/8 x 16 HUS-819091016
...
28
Washer, Lock 1/4 HUS-810040400
...
30
NUT.HEX..25-20.UNC HUS-532050675
...
36
Washer Lock Inter. Tooth 1/4 HUS-811150400
...
39
Bracket Switch Clutch HUS-532141735
...
55
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
70
Harness Engine HUS-532140413

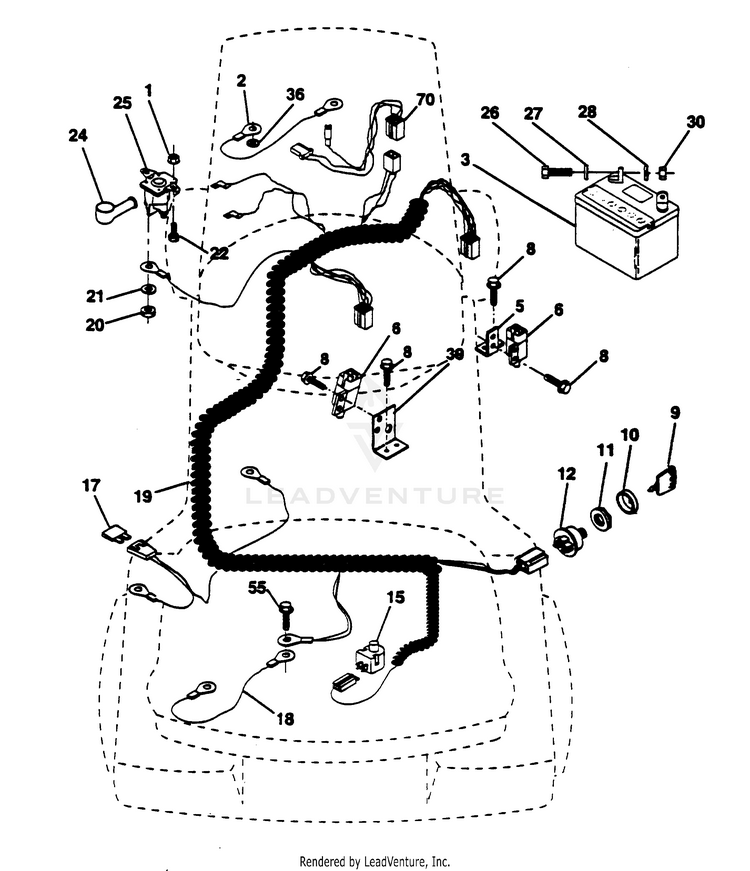

Schematic Image Zoomed
