Husqvarna PP1136 (1991) Tractor

Model: PP1136 (1991)

Back To Assemblies

Save Part Not Listed?
product name

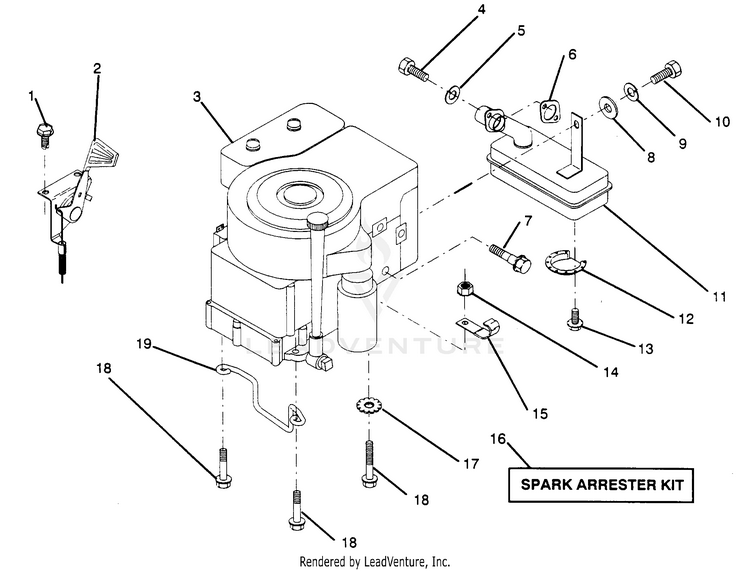

ENGINE / THROTTLE

...
...
1
HCS.1/4-20.X1/2 HUS-539990071
...
2
Control, Throttle HUS-532132752
...
3
Engine, Briggs and Stratton HUS-532124101
...
4
Screw Socket Hd 5/16-18 x .75 HUS-532192334
...
5
Washer, Lock Heavy Helical Spring 5/16 HUS-810040500
...
6
Gasket Eng 1 313 Id Tin Plated HUS-532272293
...
7
Bolt, Shoulder 5/16 HUS-532121094
...
8
WASHER - M6 HUS-734115201
...
9
Washer, Lock Heavy Helical Spring 1/4 HUS-810040400
...
10
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 HUS-874780416
...
11
Muffler HUS-532124097
...
12
Deflector, Muffler HUS-532101326
...
13
Screw Hex WSHD 8-18 x 7/8 HUS-532161464
...
14
Nut, Keps 3/8-16 HUS-873510600
...
15
Clip Line Fuel 13/32 Mtg Hole HUS-532002751
...
16
Arrestor, Spark (optional equipment) HUS-532121851
...
17
WASHER.3/8 HUS-539990118
...
18
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
19
Keeper, Ground Drive Belt HUS-532126636
...
xx
Decal, Engine HP Not Shown. HUS-532108760
