Husqvarna PP1136 (1991) Tractor

Model: PP1136 (1991)

Back To Assemblies

Save Part Not Listed?
product name

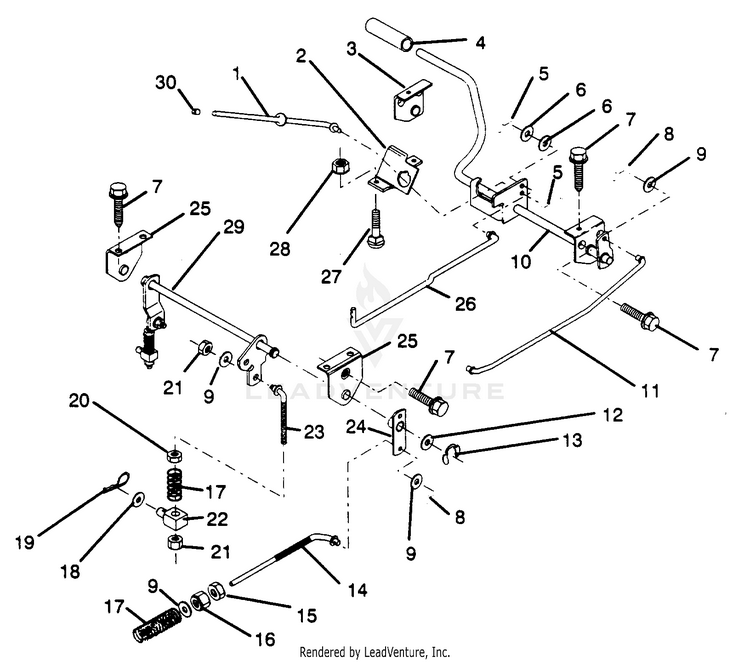

BRAKE / REAR MOWER LIFT ASSEMBLY

...
...
1
Rod, Parking Brake HUS-532123436
...
2
Bracket, Parking Brake HUS-532123437
...
3
Bracket, L.H. Clutch Pedal HUS-532122504
...
4
Cover, Pedal HUS-532008883
...
5
COTTER PIN HUS-532003145
...
6
Washer, 13/32 x 5/8 x 16 Ga. HUS-819131016
...
7
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
8
Pin, Cotter 3/32 x 3/4 HUS-876020412
...
9
Washer 13/32 x 13/16 x 16 Ga. HUS-819131316
...
10
Assembly, Clutch/Brake Pedal HUS-532128198
...
11
Rod, Front Brake HUS-532123543
...
12
Washer 25/32 x 1 1/8 x 16 Ga. HUS-819251816
...
13
Ring, Clip HUS-812000034
...
14
CLUTCH KIT HUS-532131461
...
15
Nut, Hex 3/8-16 HUS-873220600
...
16
Nut HUS-873680600
...
17
SPRING, BRAKE ROD HUS-532151332
...
18
Washer 13/32 x 1 1/4 x 12 Ga. HUS-819132012
...
19
Spring, Retainer HUS-532004921
...
20
Nut HUS-873680600
...
21
Nut, Crownlock 3/8-16 UNC HUS-873680600
...
22
LIFT TRUNION HUS-532132793
...
23
Link, Threaded HUS-532123672
...
24
Assembly, Brake Pivot Arm HUS-532123641
...
25
Bracket, Lift Shaft HUS-532121978
...
26
Rod, Clutch HUS-532123394
...
27
Bolt, Carriage 5/16-18 UNC x 3/4 HUS-872110506
...
28
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
29
Assembly, Rear Mower Lift HUS-532123547
...
30
Cap, Plunger HUS-532071673
