Husqvarna PP1136 (1991) Tractor

Model: PP1136 (1991)

Back To Assemblies

Save Part Not Listed?
product name

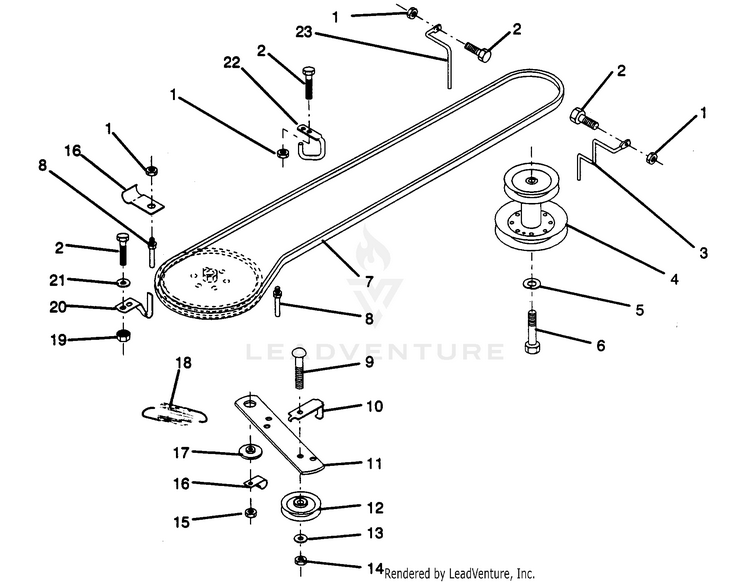

GROUND DRIVE

...
...
1
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
2
HCS.5/16-18X3/4 HUS-539976934
...
3
Keeper, Mower Drive, R. H. HUS-532131205
...
4
KIT/ENGINE PULLEY HUS-532135893
...
5
LOCKWASHER.7/16 HUS-539990247
...
6
Bolt, Fin. Hex 7/16-20 UNF x 1 1/4 Gr. 8 HUS-871130720
...
7
Traction, V-Belt Drive HUS-532124525
...
8
KEEPER.BELT.ENGINE HUS-532164173
...
9
Bolt, Carriage 3/8-16 UNC x 1 1/2 HUS-872140612
...
10
Keeper, Belt Ground Drive Idler HUS-532123396
...
11
Arm, Ground Drive Clutch HUS-532140911
...
12
Idler, Flat HUS-532123674
...
13
Washer 13/32 x 13/16 x 16 Ga. HUS-819131316
...
14
Nut HUS-873680600
...
15
Nut, Crownlock 3/8-16 UNC HUS-873680600
...
16
Clip, Insulated HUS-532126471
...
17
Spacer Retainer HUS-532165723
...
18
CLUTCH KIT HUS-532131461
...
19
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
20
Keeper, T/A Ground Drive Belt HUS-532123891
...
21
WASHER - 15X7.3X1.6 HUS-734116301
...
22
Keeper, Frame Ground Drive Belt HUS-532123404
...
23
Keeper, Mower Drive, L. H. HUS-532131204
