Husqvarna PP1136 (1991) Tractor

Model: PP1136 (1991)

Back To Assemblies

Save Part Not Listed?
product name

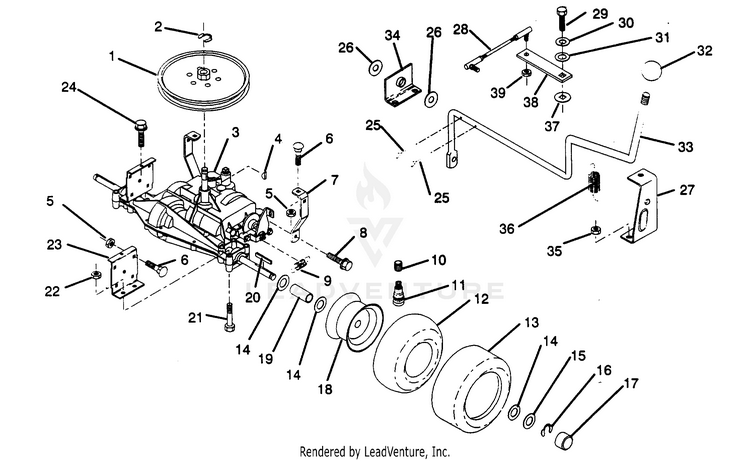

TRANSAXLE

...
...
1
Pulley HUS-532123385
...
2
Ring, Retaining HUS-532002267
...
3
Transaxle, Foot, 4 Speed HUS-532123383
...
4
Key, Woodruff #9 HUS-532125096
...
5
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
6
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
7
Strap, Torque HUS-532123378
...
8
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
9
Spring Return Brake HUS-532146682
...
10
Cap, Valve HUS-532059192
...
11
Stem, Valve HUS-532065139
...
12
Tube HUS-532008134
...
13
Tire, Rear HUS-532124143
...
14
Washer 25/32 x 1-1/4 x 16 Ga. HUS-532121749
...
15
Washer, 25/32 x 1-5/8 x 16 Ga. HUS-532121748
...
16
E-Ring HUS-812000001
...
17
Hub, Cap HUS-532104757
...
18
Rim HUS-532124844
...
19
Spacer HUS-532123409
...
20
Key, Square HUS-532123583
...
21
Bolt, Fin, Hex 3/8-16 x 2-3/4 HUS-874760644
...
22
Nut, Crownlock 3/8-16 HUS-873680600
...
23
Bracket, Transaxle HUS-532123377
...
24
HCS.5/16-18X3/4 HUS-539976934
...
25
Pin, Cotter 1/8 532 1 HUS-876020416
...
26
Washer HUS-532052160
...
27
Support, Handle Shift R.H. HUS-532124601
...
28
Link, Shift HUS-532123632
...
29
Bolt, Fin, Hex 1/4-28 UNF x 3/4 Gr.8 HUS-871040412
...
30
Washer, Lock Hvy. Helical Spring 1/4 HUS-810040400
...
31
WASHER - M6 HUS-734115201
...
32
Knob, Shift Contol HUS-532106933
...
33
Shift Rod HUS-532124599
...
34
Support, Handle Shift L.H. HUS-532124600
...
35
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
36
Extension, Spring HUS-532128085
...
37
Washer, Shift Plate HUS-532105701
...
38
Arm, Shift HUS-532123484
...
39
NUT HUS-873610500
