Husqvarna PP1136 (1991) Tractor

Model: PP1136 (1991)

Back To Assemblies

Save Part Not Listed?
product name

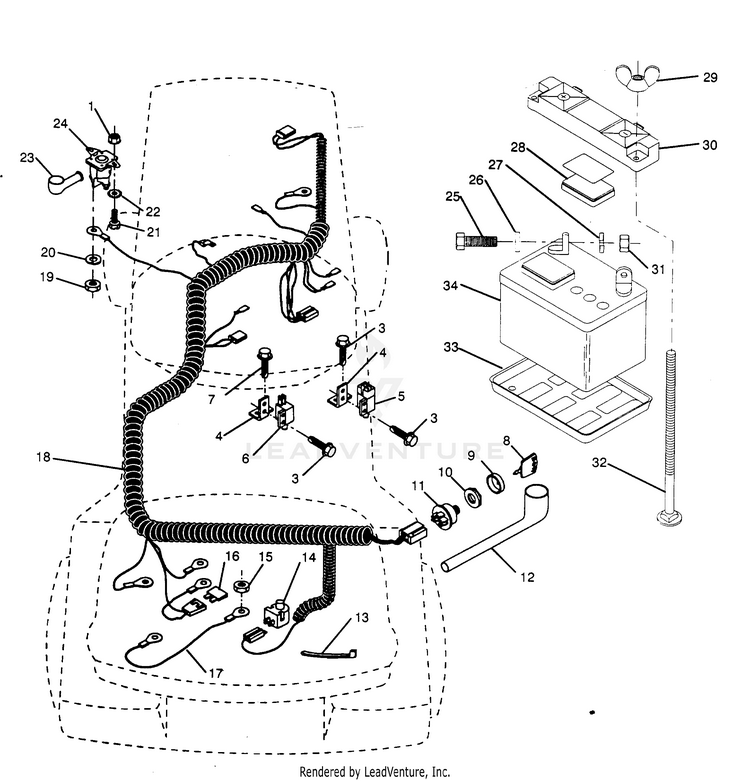

ELECTRICAL

...
...
1
Nut Crownlock 1/4-20 unc HUS-873680400
...
2
Assembly, Cable HUS-532105002
...
3
Screw, Tap Hex Hd #10-24 x 1/2 HUS-817021008
...
4
Bracket, Switch HUS-532108236
...
5
Switch, Interlock HUS-532104445
...
6
SWITCH.N.C *SUBS/1* HUS-539101080
...
7
Screw, Hex Wsh. Tap #10-16 x 1/2 HUS-817211008
...
8
Key, Molded HUS-532122147
...
9
Cover, Key Ignition HUS-532141226
...
10
Nut, Ignition HUS-532124211
...
11
High Speed Gear HUS-532004206
...
12
Cover, Ignition Switch HUS-532124083
...
13
WIRE TIE HUS-532007192
...
14
SWITCH.SNAPMOUNT.NC HUS-532421062
...
15
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
16
Fuse HUS-532108824
...
17
CABLE HUS-532002955
...
18
Harness, Ignition HUS-532123703
...
19
NUT.HEX..25-20.UNC HUS-532050675
...
20
WASHER, LOCK 1/4 HUS-810040400
...
21
HCS.1/4-20.X1/2 HUS-539990071
...
22
WASHER, LOCK 1/4 HUS-810040400
...
23
Cover, Terminal Red HUS-532154336
...
24
KIT SOLENOID .95 HUS-532146154
...
25
Bolt, Hex Hed. 1/4-20 UNC x 3/4 HUS-874760412
...
26
Washer 9/32 x 5/8 x 16 Ga. HUS-819091016
...
27
Washer, Lock Hvy. Helical Spring 1/4 HUS-810040400
...
28
Battery, Cap HUS-532121300
...
29
KNOB BLK 1/2 NYLON HUS-532146525
...
30
SUB= 150109 HUS-532150109
...
31
NUT.HEX..25-20.UNC HUS-532050675
...
32
Bolt, Carriage 1/4-20 UNC x 7 1/2 HUS-872240460
...
33
TRAY.BATTERY HUS-532007603
...
34
BATTERY NLA HUS-532123888
...
xx
Manual, Operator's(English) Not Shown. HUS-532127735
...
xx
Briggs & Stratton, Operating and Maintenance Manual Not Shown. HUS-MS-9811
...
xx
Parts List Not Shown. HUS-532125547
...
xx
Sheet, Slope Not Shown. HUS-532101539
