Husqvarna PP1130ESA (2002) Snow Thrower

Model: PP1130ESA (2002)

Back To Assemblies

Save Part Not Listed?
product name

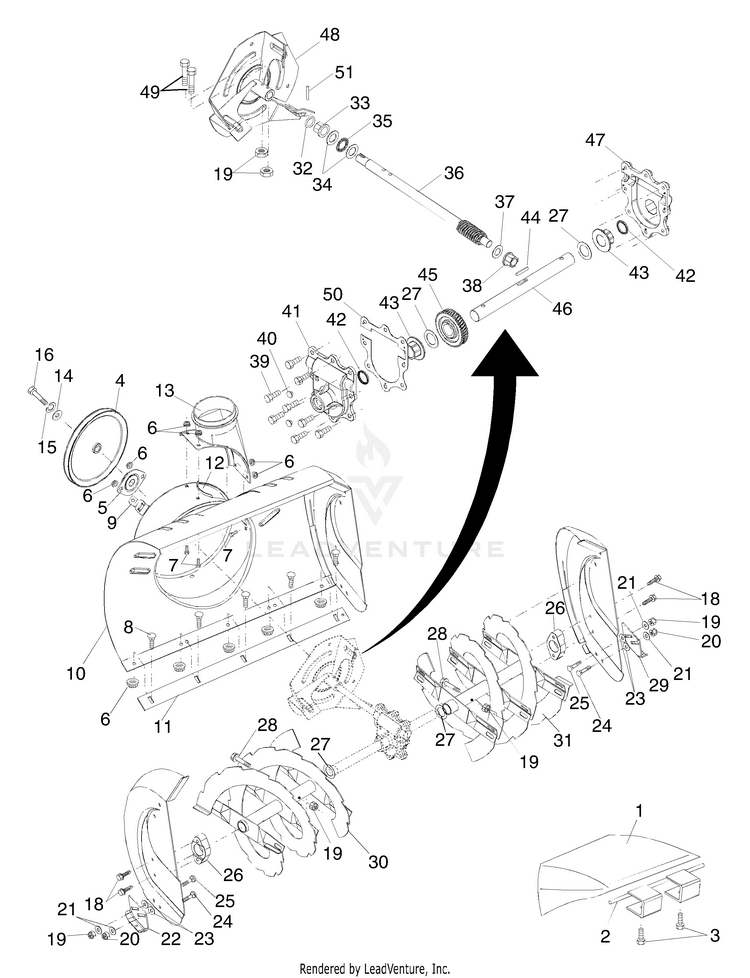

Auger Housing/Impeller Assembly

...
...
1
BAG.WEIGHT.ASM HUS-183576
...
2
Bracket, Weight Bag HUS-183577
...
3
Screw, Hex Head 5/16-18 x 1-1/2 HUS-74520524
...
4
Pulley, Impeller HUS-181083
...
5
Bearing Assembly, Flange HUS-175323
...
6
Nut, Hex Flange 5/16-18 HUS-155377
...
7
Bolt, Flat Head, Carriage 5/16-18 x 5/8 HUS-180355
...
8
Bolt, Carriage 5/16-1 8 x 5/8 HUS-72270505
...
9
Nut, Cage 3/8-16 HUS-178820
...
10
Housing, Auger HUS-178827X428
...
11
Bar, Scraper HUS-178691X479
...
12
Bracket, Corner Discharge HUS-178675X008
...
13
Base, Discharge Chute HUS-175322
...
14
Washer, Flat HUS-59289
...
15
Washer, Lock 5/16 HUS-10040500
...
16
Screw, Hex Head 5/16-18 x 3/4 HUS-74950512
...
18
Screw, Hex Head 5/16 x 1 HUS-179582
...
19
Nut, Hex Lock 1/4-20 HUS-73800400
...
20
Nut, Hex Lock 5/16-18 HUS-73800500
...
21
Washer, Flat HUS-155415
...
22
Skid Plate, RH HUS-178777X479
...
23
Washer, Nylon, Friction HUS-179246
...
24
Bolt, Carriage 5/16-18 x 3/4 HUS-72270506
...
25
Bolt, Shoulder HUS-179829
...
26
Bearing, Auger HUS-174658
...
27
Washer, Thrust, 1" HUS-174697
...
28
Bolt, Shoulder 1/4-20 x 2 HUS-179828
...
29
Skid Plate, LH HUS-174762X479
...
30
Auger Assembly, RH HUS-178765X479
...
31
Auger Assembly, LH HUS-178764X479
...
32
O-Ring HUS-174699
...
33
Bushing, Flange 3/4 HUS-174700
...
34
Washer, Thrust 3/4 HUS-174681
...
35
Bearing, Thrust 3/4 HUS-174684
...
36
Shaft, Impeller HUS-174660
...
37
Washer, Thrust 5/8 HUS-174683
...
38
Bushing, Flange 5/8 HUS-174686
...
39
Screw, Hex Head 5/16-18 x 3/4 HUS-150078
...
40
Plug, Case HUS-86447
...
41
Housing, Gearbox, RH HUS-174688
...
42
Seal, Oil HUS-174698
...
43
Bushing, Flange, 1" HUS-174701
...
44
Key, Square 1/4 x 1/4 x 7/8 HUS-178879
...
45
Gear, Worm HUS-174659
...
46
Shaft, Auger HUS-174657
...
47
Housing, Gearbox, LH HUS-174687
...
48
Impeller Assembly HUS-175321X479
...
49
Screw, Hex Head 1/4-20 x 1-5/8 HUS-74780426
...
50
Gasket, Gearbox HUS-175311
...
51
Pin, Roll 3/16 x 1-1/8 HUS-7836M
