Husqvarna PP1036SA (1993) Tractor

Model: PP1036SA (1993)

Back To Assemblies

Save Part Not Listed?
product name

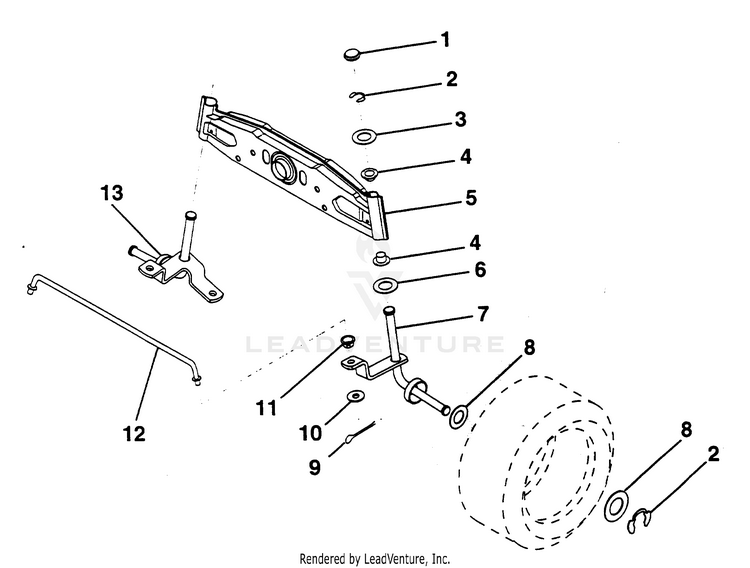

FRONT AXLE

...
...
1
Cap, Spindle HUS-532121232
...
2
Ring, Clip HUS-812000029
...
3
Washer 25/32 x 1-5/8 x 16 Ga. HUS-532121748
...
4
Nyliner HUS-532121922
...
5
Axle, Front HUS-532121914
...
6
WASHER THRUST HUS-532006266
...
7
Spindle, R.H. Asm. HUS-532121919
...
8
Washer 25/32 x 1-1/4 x 16 Ga. HUS-532121749
...
9
Pin, Cotter 1/8 x 3/4 HUS-876020412
...
10
Washer 13/32 x 13/16 x 16 Ga. HUS-819131316
...
11
Bushing HUS-532126847
...
12
Rod, Tie HUS-532121924
...
13
Spindle, L.H. Asm. HUS-532121916
