Husqvarna PP1036SA (1993) Tractor

Model: PP1036SA (1993)

Back To Assemblies

Save Part Not Listed?

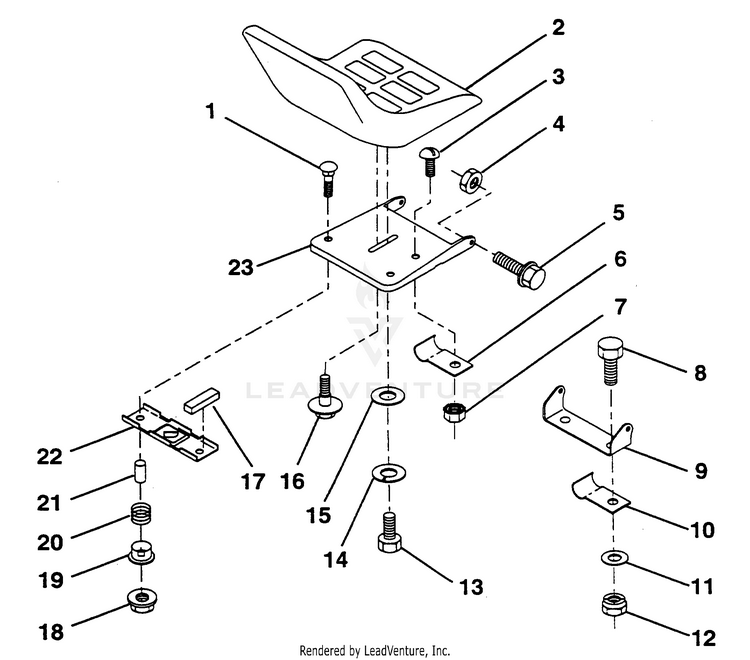

product name

SEAT

...
...
1
Bolt, Carriage 1/4-20 x 1-3/8 HUS-872050411
...
2
SEAT.XG090.BLK.KB/BLT.NO-LOG HUS-532401042
...
3
Screw, Slotted Pan Head #10-32 x 1/2 HUS-874641008
...
4
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
5
Bolt Shoulder 5/16-18 Type T.T.T.R. HUS-532139888
...
6
Clip, Insulated HUS-532124967
...
7
HUS-873161000
...
8
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
9
Bracket, Pivot Seat HUS-532126656
...
10
Clip, Insulated HUS-532126471
...
11
WASHER.13/32 X 1 X 1/2.11GUARD HUS-532413524
...
12
Nut, Crownlock 3/8-16 UNC HUS-873680600
...
13
BOLT.HEX.BLACK HUS-871110814
...
14
Washer, Lock Hvy Helical Spring HUS-810040800
...
15
Washer, 17/32 x 1-3/16 x 12 Ga. HUS-819171912
...
16
Bolt, Shoulder HUS-532127018
...
17
Strip, Foam HUS-532121251
...
18
Nut Crownlock 1/4-20 unc HUS-873680400
...
19
Bushing, Snap HUS-532121248
...
20
Spring, Compression HUS-532121250
...
21
Spacer, Split 28 Id. x .96 Lg. HUS-532134300
...
22
Bracket Mounting Switch HUS-532174648
...
23
PAN, SEAT HUS-532195530
