Husqvarna PP1036S (1993) Tractor

Model: PP1036S (1993)

Back To Assemblies

Save Part Not Listed?
product name

DASH

...
...
1
Cap, Fuel HUS-532132734
...
2
Assembly, Dash & Fuel Tank HUS-532138393
...
3
Clamp, Hose HUS-532123487
...
4
FUEL LINE HUS-532000295
...
5
Line, Fuel HUS-532008548
...
6
Nut Crownlock 1/4-20 unc HUS-873680400
...
7
Clip Line Fuel 13/32 Mtg Hole HUS-532002751
...
8
WASHER - M6 HUS-734115201
...
9
Bolt, Fin. Hex 1/4-20 x 1 1/2 HUS-874760432
...
10
Washer 9/32 X 7/8 X 16ga HUS-819091416
...
11
Spacer, Split HUS-532121249
...
12
Spring HUS-532003720
...
13
Clip, Height Adjustment HUS-532126450
...
14
Knob, Height Stop HUS-532126115
...
15
Adjustment, Quadrant Height HUS-532122023
...
16
Nut, Self-Threading 3/16-18 HUS-532124346
...
17
Bolt, Carriage 1/4-20 x 1/2 Gr. 5 HUS-872110404
...
18
Support Assembly, Dash HUS-532130745
...
19
Brace, Cross HUS-532134744
...
20
Screw, Self-Tapping 1/4-20 x 1/2 HUS-818000408
...
21
Plug, Dome Black HUS-532134014

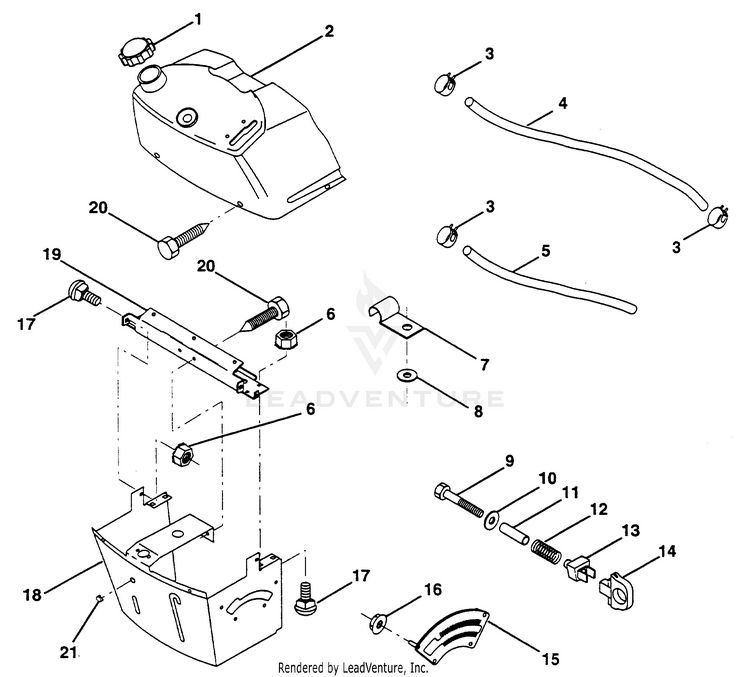

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
