Husqvarna PP1036S (1993) Tractor

Model: PP1036S (1993)

Back To Assemblies

Save Part Not Listed?
product name

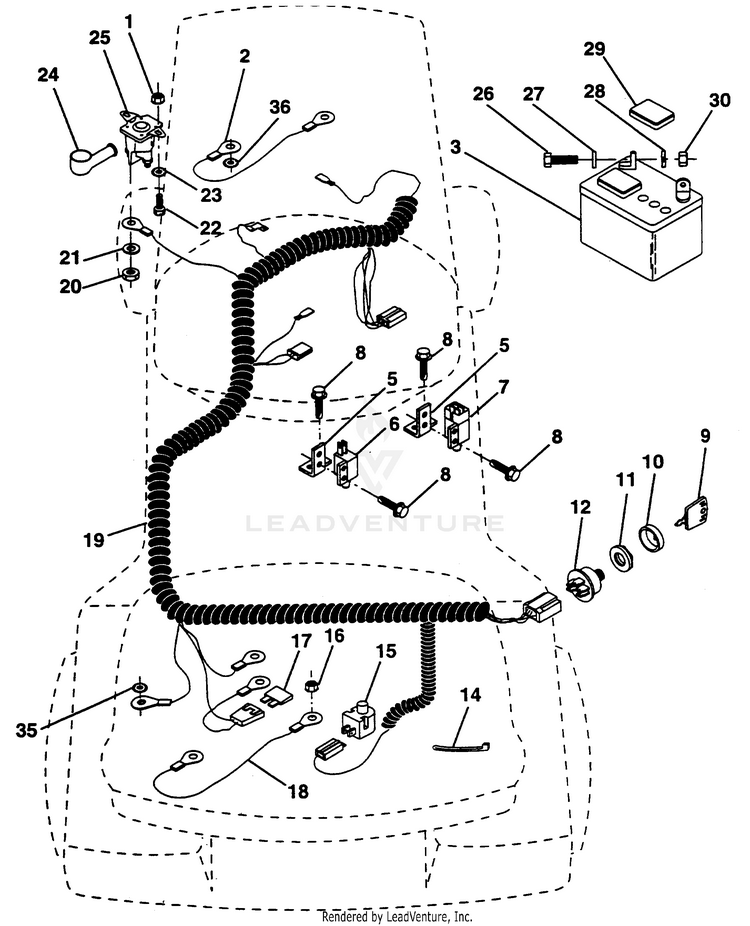

ELECTRICAL

...
...
1
Nut Crownlock 1/4-20 unc HUS-873680400
...
2
Assembly, Cable HUS-532108423
...
3
BATTERY.DRY.30.AMP HUS-532123899
...
5
Bracket, Switch HUS-532108236
...
6
Switch, Interlock (2-terminal) HUS-532104445
...
7
SWITCH.N.C *SUBS/1* HUS-539101080
...
8
Screw, Hex Hd. Tap #10-24 x 1/2 HUS-817021008
...
9
Key, Molded HUS-532122147
...
10
Cover, Key Ignition HUS-532141226
...
11
Nut, Ignition HUS-532124211
...
12
KIT.SWITCH.IGNITN HUS-532365402
...
14
WIRE TIE HUS-532007192
...
15
SWITCH.SNAPMOUNT.NC HUS-532421062
...
16
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
17
Fuse HUS-532108824
...
18
Assembly, Cable HUS-532128353
...
19
Harness, Ignition HUS-532132223
...
20
NUT.HEX..25-20.UNC HUS-532050675
...
21
WASHER, LOCK 1/4 HUS-810040400
...
22
HCS.1/4-20.X1/2 HUS-539990071
...
23
WASHER, LOCK 1/4 HUS-810040400
...
24
Cover, Terminal Red HUS-532154336
...
25
KIT SOLENOID .95 HUS-532146154
...
26
Bolt, Hex Hd. 1/4-20 UNC x 3/4 HUS-874760412
...
27
Washer 9/32 x 5/8 x 16 HUS-819091016
...
28
Washer, Lock 1/4 HUS-810040400
...
29
Cap, Battery HUS-532121264
...
30
NUT.HEX..25-20.UNC HUS-532050675
...
35
WASHER.3/8 HUS-539990118
...
36
WASHER, LOCK 1/4 HUS-810040400
