Husqvarna PP1036S (1993) Tractor

Model: PP1036S (1993)

Back To Assemblies

Save Part Not Listed?
product name

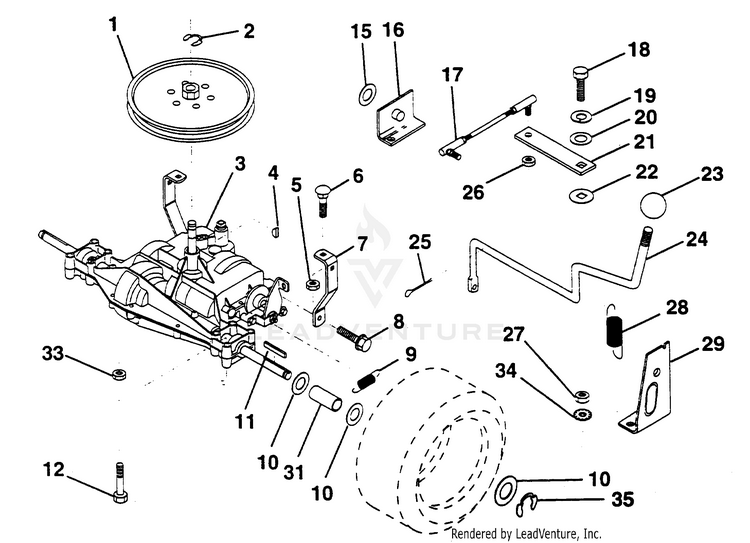

TRANSAXLE

...
...
1
Pulley HUS-532123385
...
2
Ring, Retaining HUS-532002267
...
4
Key, Woodruff #9 HUS-532125096
...
5
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
6
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
7
Strap, Torque HUS-532123378
...
8
Screw 5/16 - 18 x 3/4 HUS-871490512
...
9
Spring Return Brake HUS-532146682
...
10
Washer 25/32 x 1-1/4 x 16 Ga. HUS-532121749
...
11
Key, Square HUS-532123583
...
12
Bolt, Fin Hex 5/16-18 x 2-1/2 HUS-874760644
...
15
Washer HUS-532052160
...
16
Support, Handle Shift L. H. HUS-532124600
...
17
Link, Shift HUS-532123632
...
18
Bolt, Fin Hex 1/4-28 UNF x 3/4 Gr. 8 HUS-871040412
...
19
Washer, Lock 1/4 HUS-810040400
...
20
WASHER - M6 HUS-734115201
...
21
Arm, Shift HUS-532123484
...
22
Washer, Shift Plate HUS-532105701
...
23
Knob, Shift Control HUS-532106933
...
24
Shift Rod HUS-532128215
...
25
Pin, Cotter 1/8 x 1 HUS-876020416
...
26
NUT HUS-873610500
...
27
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
28
Extension, Spring HUS-532128085
...
29
Support, Handle Shift R. H. HUS-532128084
...
31
Spacer, Split HUS-532123409
...
33
Nut Crownlock 3/8 - 16 HUS-8736800600
...
34
Washer Lock Hvy Hlcl Spr 5/16 HUS-810040500
...
35
E-Ring HUS-812000001
