Husqvarna PO500N22S, 96112004102 (2008-01) Walk-Behind Mower

Model: PO500N22S, 96112004102 (2008-01)

Save Part Not Listed?
product name

Product Complete

...
...
1
Kit, Housing (Includes Key Number 38) HUS-403018
...
2
Control Bar HUS-194177X428
...
3
Rope Guide HUS-194788
...
4
Upper Handle HUS-194179X479
...
5
Lower Handle HUS-169708X479
...
6
Shoulder Bolt 5/16-18 x 1/2 HUS-192301X004
...
7
Handle Bolt 5/16-18 HUS-191574
...
8
Clip, Closeout HUS-161622
...
10
Locknut, Hex 1/4-20 HUS-132004
...
11
Engine Zone Control Cable HUS-183281
...
12
Screw, Hex Head, Threaded, Rolled #10-24 x 1/2 HUS-750634
...
13
Up-Stop Bracket HUS-86899X004
...
15
Axle Arm Assembly, Left Front & Right Rear HUS-401174X004
...
16
Handle Knob HUS-189713X428
...
18
Axle Arm Assembly, Right Front & Left Rear HUS-401175X004
...
19
Hairpin Cotter HUS-51793
...
20
Screw, Tapping, Hex Washer Head #10-24 HUS-750097
...
21
Rear Skirt HUS-413160
...
22
Wire Tie HUS-664-26
...
23
Discharge Guard HUS-160831
...
25
Nut, Hex, Flangelock 5/16-18 HUS-166785
...
27
Torsion Spring HUS-408585
...
28
Blade Adapter HUS-193825
...
29
22" Blade HUS-406713
...
30
Hardened Washer HUS-851074
...
31
Helical Lockwasher 3/8 HUS-850263
...
32
Screw, Hex Head, Grade 8, 3/8-24 x 1-3/8 HUS-851084
...
33
Nut, Hex, Flangelock 5/16-18 HUS-73930500
...
34
Wheel Bracket Support (Left) HUS-400781X479
...
35
Wheel Bracket Support (Right) HUS-400782X479
...
36
Wheel Bracket Adjuster HUS-407494X005
...
37
Hinge Rod HUS-160833
...
38
Danger Decal HUS-404763
...
39
Selector Spring HUS-401621X004
...
40
Selector Knob HUS-87877
...
41
Screw, Hex Head, Threaded, Rolled 3/8-16 x 1 HUS-150406
...
43
Spacer HUS-401629
...
44
Shoulder Bolt 5/16-18 x .33 HUS-401638
...
45
Wheel & Tire Assembly HUS-193850X427
...
46
Nut, Hex, Flangelock 3/8-16 HUS-409148
...
53
Clip, Cable HUS-197991
...
61
Washer, Curved, Cylindrical HUS-401630
...
61
Warning Decal (not shown) HUS-404764
...
61
Operator's Manual, English HUS-193732
...
61
Operator's Manual, French HUS-193734
...
61
Repair Parts Manual HUS-418812

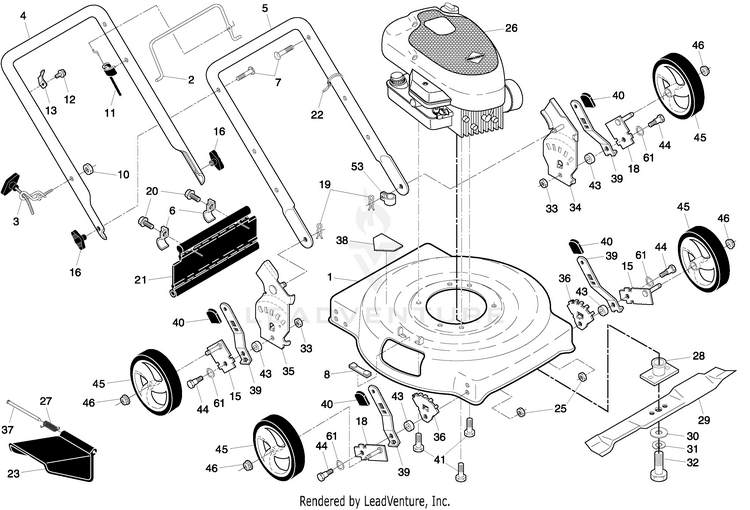

Schematic Image Zoomed
