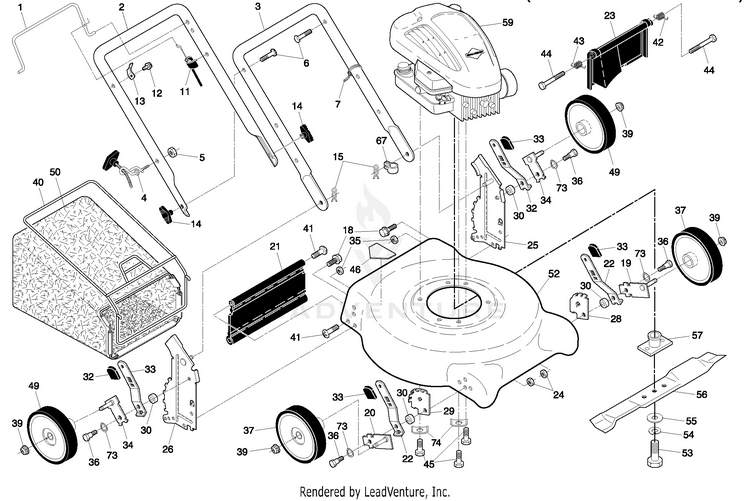

Husqvarna PO500N21R, 96132003000 (2006-12) Walk-Behind Mower

Model: PO500N21R, 96132003000 (2006-12)

Save Part Not Listed?
product name

Product Complete

...
...
1
Control Bar HUS-194177X428
...
2
Upper Handle HUS-194179X479
...
3
Lower Handle HUS-169708X479
...
4
Rope Guide HUS-194788
...
5
Nut, Hex HUS-132004
...
6
Handle Bolt HUS-191574
...
7
Wire Tie HUS-664-26
...
11
Cable, Engine Zone Control HUS-176556
...
12
Hex Washer Head Screw HUS-750634
...
13
Up-Stop Bracket HUS-86899X004
...
14
Knob, Handle HUS-189713X428
...
15
Hairpin Cotter HUS-51793
...
18
Screw HUS-17600406
...
19
Axle Arm Assembly, Front, LH HUS-401174X004
...
20
Axle Arm Assembly, Front, RH HUS-401175X004
...
21
Rear Skirt HUS-188987
...
22
Selector Spring, Front HUS-401621X004
...
23
Rear Door Assembly HUS-401814X428
...
24
Nut, Hex 5/16-18 HUS-166785
...
25
Handle Bracket Assembly, LH HUS-400623X479
...
26
Handle Bracket Assembly, RH HUS-400624X479
...
28
Wheel Adjusting Bracket, Front, LH HUS-407500X005
...
29
Wheel Adjusting Bracket, Front, RH HUS-407499X005
...
30
Spacer HUS-401629
...
32
Selector Spring, Rear HUS-401623X004
...
33
Selector Knob HUS-87877
...
34
Axle Arm Assembly, Rear, LH HUS-401173X004
...
35
Locknut, Hex 5/16-18 HUS-73930500
...
36
Shoulder Bolt 5/16-18 HUS-401638
...
37
Wheel & Tire Assembly, Front 7 x 1-3/4 HUS-193931X427
...
39
Flanged Locknut, Hex HUS-83923
...
40
Frame, Grassbag HUS-401808
...
41
Hinge Screw HUS-88652
...
42
Spring, Rear Door, LH HUS-405421
...
43
Spring, Rear Door, RH HUS-405423
...
44
Bolt, Rear Door HUS-184193
...
45
Hex Head Thread Rolling Screw 3/8-16 x 1 HUS-150406
...
46
Danger Decal HUS-404763
...
49
Wheel & Tire Assembly, Rear 8 x 1-3/4 HUS-193905X427
...
50
Grassbag HUS-402263
...
52
Kit, Lawn Mower Housing (Includes Key Numbers 17, 18 and 46) HUS-410180
...
53
Hex Head Screw 3/8-24 x 1-3/8 Grade 8 HUS-851084
...
54
Helical Lockwasher HUS-850263
...
55
Hardened Washer HUS-851074
...
56
21" Blade HUS-406712
...
57
Blade Adapter HUS-193825
...
67
Clip, Cable HUS-197991
...
73
Washer, Curved, Cylindrical HUS-401630
...
74
Washer, Special, Engine HUS-851201X004
...
74
Warning Decal (not shown) HUS-404764
...
74
Operator's Manual, English HUS-193732
...
74
Operator's Manual, French HUS-193734
...
74
Repair Parts Manual, English / French HUS-411645
