Husqvarna PO17H42STB (2003) Tractor

Model: PO17H42STB (2003)

Back To Assemblies

Save Part Not Listed?
product name

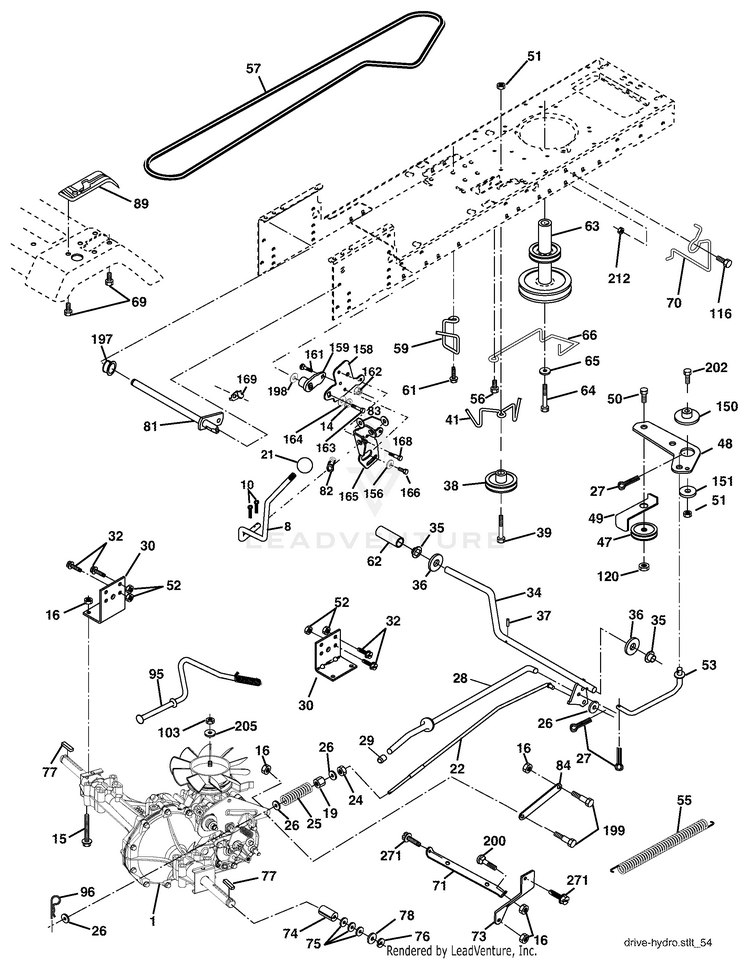

Drive

...
...
8
Rod, Shift HUS-165619
...
10
Pin, Cotter 1/8 x 1 HUS-76020416
...
14
Washer Lock 1/4 HUS-10040400
...
15
Bolt Hex Flghd 5/16-18 Gr. 5 HUS-74490544
...
16
Nut, Lock Hex w/Ins 5/16-18 Unc HUS-73800500
...
19
Nut, Lock Hex w/Wsh 3/8-16 Unc HUS-73800600
...
21
Knob Rd. 1/2-13 Plstc. Thds. Blk. HUS-106933X
...
22
Rod, Brake HUS-169498
...
24
Nut HUS-73350600
...
25
Spring, Rod, Brake HUS-106888X
...
26
Washer 13/32 x 13/16 x 16 Ga. HUS-19131316
...
27
Pin, Cotter 1/8 x 3/4 HUS-76020412
...
28
Rod, Parking Brake HUS-175765
...
29
Cap, Parking Brake HUS-71673
...
30
Bracket, Transmission HUS-174973
...
32
Bolt Hex 5/16-18 Unc x 3/4 HUS-74760512
...
34
Shaft, Foot Pedal HUS-175578
...
35
Bearing, Nylon HUS-120183X
...
36
Washer HUS-19211616
...
37
Pin, Roll HUS-1572H
...
38
Pulley, Idler, Composite HUS-179114
...
39
Bolt HUS-74760648
...
41
Keeper, Belt, Idler HUS-175556
...
47
Pulley, Idler, V-Belt HUS-127783
...
48
Bellcrank Clutch Grnd Drustl HUS-154407
...
49
Retainer, Belt HUS-123205X
...
50
Bolt 3/8-16 x 1-1/2 Gr. 5 HUS-72110612
...
51
Nut HUS-73680600
...
52
Nut Crownlock 5/16-28 HUS-73680500
...
53
Link, Clutch HUS-105710X
...
55
Spring, Return, Clutch HUS-105709X
...
56
Screw 3/8-16 x 1-1/4 HUS-17060620
...
57
V-Belt, Drive HUS-140294
...
59
Keeper, Belt, Center HUS-169691
...
61
Screw, 3/8-16 x .875 HUS-17120614
...
62
Cover, Pedal HUS-8883R
...
63
Pulley, Engine HUS-175410
...
64
Bolt Hex 7/16-20 x 4 HUS-173937
...
65
Washer HUS-10040700
...
66
Keeper, Belt Engine Hydro HUS-154778
...
69
Screw Hex Wsh Hi-Lo 1/4-1/2 Unc HUS-142432
...
70
Guide, Belt, Mower Drive RH HUS-134683
...
71
Strap, Torque, Lh HUS-169183
...
73
Strap, Torque, Rh HUS-169182
...
74
Spacer, Axle HUS-137057
...
75
Washer 25/32 x 1-1/4 x 16 Ga. HUS-121749X
...
76
Ring, E HUS-12000001
...
77
Key, Square HUS-123583X
...
78
Washer 25/32 x 1-5/8 x 16 Ga. HUS-121748X
...
81
Shaft Asm Cross HUS-165596
...
82
Spring, Torsion HUS-123782X
...
83
Washer 17/32 x 3/4 x 16 Ga. HUS-19171216
...
84
Link Transaxle HUS-169843
...
89
Console, Shift HUS-169373X428
...
95
Control Asm Bypass Hydro HUS-170201
...
96
Spring, Retainer 1" HUS-4497H
...
103
Nut, Hex Jam Toplock 1/2-20 Unf HUS-73940800
...
116
Bolt 3/8-16 x 1 HUS-72140608
...
120
Bolt Hex 3/8-16 x 1-1/2 HUS-73900600
...
150
Spacer Retainer HUS-175456
...
151
Washer 13/32 x 2 x 10 HUS-19133210
...
156
Washer 5/16 x 1.0 x 1.25 HUS-166002
...
158
Bracket Shift Mount HUS-165589
...
159
Hub Shift HUS-183900
...
161
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5 HUS-72140406
...
162
Nut Crownlock 1/4-20 Unc HUS-73680400
...
163
Bolt Hex Fin 1/4-20 x 1 HUS-74780416
...
164
Washer 5/8 x .281 x 10 Ga. HUS-19091010
...
165
Bracket Pivot Lever HUS-165623
...
166
Screw 5/16 x 1.0 x .125 HUS-166880
...
168
Bolt Shoulder 5/16-18 x .561 HUS-165492
...
169
Plate Fastening LT HUS-165580
...
197
Nyliner Snap-in 5/8" ID HUS-169613
...
198
Washer Nyl 7/8 ID x .105" HYD HUS-169593
...
199
Bolt Shoulder 5/16-18 Unc HUS-169612
...
200
Bolt Rdhd Sqnk 5/16-18 Unc x 1 HUS-72140508
...
202
Bolt Car SH 3/8-16 x 1-1/2 Gr 5 HUS-72110614
...
205
Washer 17/32 x 1 x 16 Ga HUS-19171616
...
212
Nut Hex Flange Lock HUS-145212
...
258
Screw 3/8-16 x 3/4 HUS-17000612
