Husqvarna PO17H42STA (2003) Tractor

Model: PO17H42STA (2003)

Back To Assemblies

Save Part Not Listed?
product name

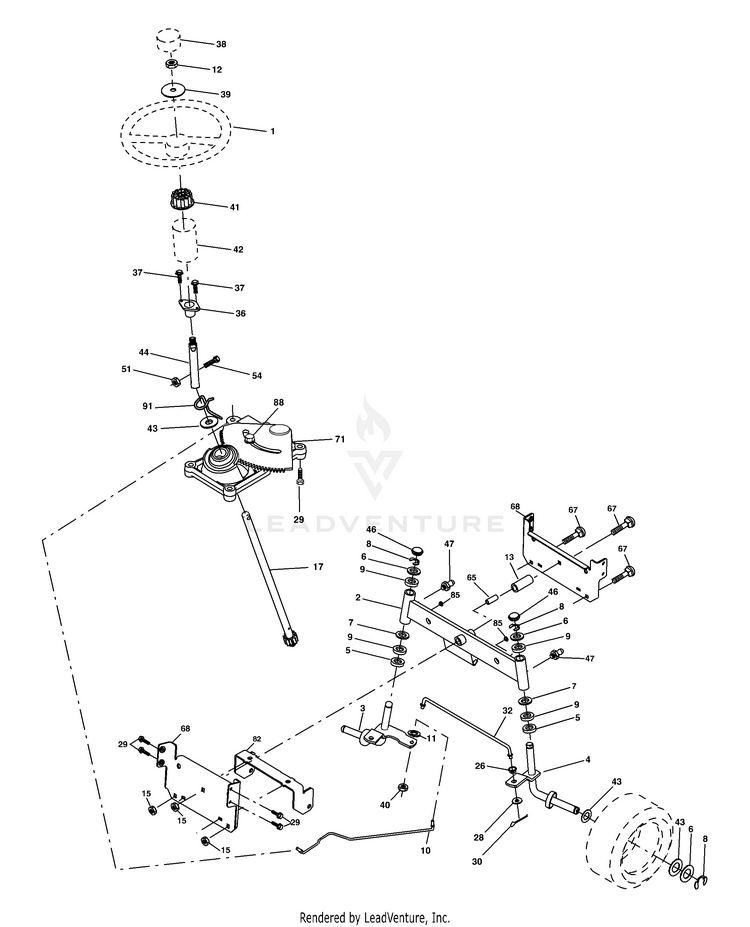

Steering Assembly

...
...
1
Wheel Steering Auto Black HUS-140044X428
...
2
Axle Asm Front HUS-175131
...
3
Spindle Asm Lh HUS-169840
...
4
Spindle Asm Rh HUS-169839
...
5
Bearing Race Thrust Harden HUS-6266H
...
6
Washer 25/32 X 1 5/8 X 16 ga HUS-121748X
...
7
Washer 27/32 X 1 1/4 X 16 Ga HUS-19272016
...
8
Ring Klip #t5304-75 HUS-12000029
...
9
Bearing Col Strg Blk HUS-3366R
...
10
Link Drag Extended HUS-175121
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
12
Nut Hex Jam Toplock 1/2-20 Unf HUS-73940800
...
13
Spacer Bearing Axle Front HUS-136518
...
15
Hex Flange Lock HUS-145212
...
17
Shaft Asm Strg HUS-180641
...
26
Bushing Rod Tie Blk Lt HUS-126847X
...
28
Washer 13/32 X 7/8 X 16ga HUS-19131416
...
29
Screw 3/8-16x3/4 HUS-17060612
...
30
Pin HUS-76020412
...
32
Rod Tie Wire Form 19 75 Mech HUS-130465
...
36
Bushing Strg 5/8 Id Dash HUS-155099
...
37
Screw TT #10-32 x 5 x 3/8 Flange HUS-152927
...
38
Insert Cap Strg HUS-140045X428
...
39
Washer 9/16 ID x 2-3/8 OD 12 Gr HUS-19183812
...
40
Locknut Center HUS-7810H
...
41
Adaptor Wheel Strg 640/ 635id HUS-100711L
...
42
Boot Dash Steering HUS-145054X428
...
43
Washer 25/32 X 1 1/4 X 16 Ga HUS-121749X
...
44
Extension Steering HUS-180640
...
46
Cap Spindle Fr Top Blk HUS-121232X
...
47
Fitting Grease HUS-183226
...
51
Nut Crownlock 1/4-28 HUS-73540400
...
54
Bolt Hex 1/4-28unf x 1-1/4 Gr. 8 HUS-71130420
...
65
Spacer Brace Axle HUS-160367
...
67
Bolt Rdhd Sq 3/8-16 Unc x 2-3/4 HUS-72140618
...
68
Brace Axle HUS-169827
...
71
Steering Asm HUS-175146
...
82
Bracket Susp Chassis Front HUS-169835
...
85
Fastener Christmas Tree HUS-133835
...
88
Bolt Shoulder 7/16-20 HUS-175118
...
91
Clip Steering HUS-175553
