Husqvarna PO175H42STB (2004) Tractor

Model: PO175H42STB (2004)

Back To Assemblies

Save Part Not Listed?
product name

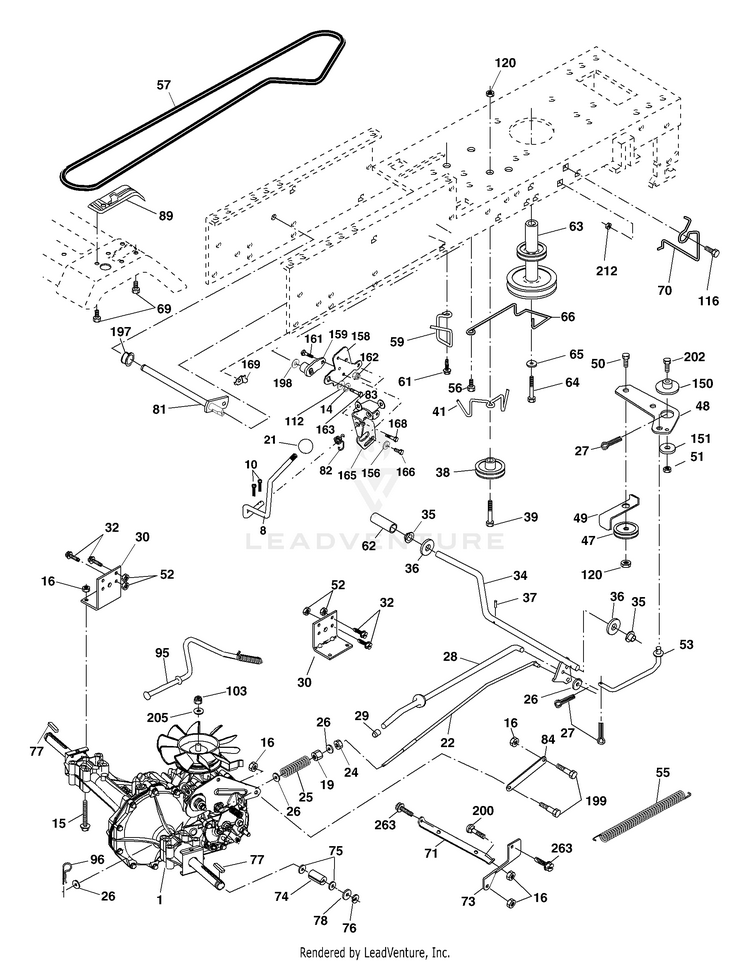

Drive

...
...
8
Rod Shift HUS-165619
...
10
Pin Cotter 1/8 X 1 HUS-76020416
...
14
Washer Lock 1/4 HUS-10040400
...
15
Bolt Hex FLGHD 5/16-18 Gr. 5 unc HUS-74490544
...
16
Nut Lock Hex w/ins 5/16-18 unc HUS-73800500
...
19
Nut Lock Hex w/wsh 3/8-16 unc HUS-73800600
...
21
Knob Rd 1/2-13 Plasc Thds Blk HUS-106933X
...
22
Rod Brake HUS-169498
...
24
Nut HUS-73350600
...
25
Spring Rod Brake HUS-106888X
...
26
Washer 13/32 x 13/16 x 16 Ga. HUS-19131316
...
27
Pin Cotter 1/8 x 3/4 HUS-76020412
...
28
Rod Brake Parking HUS-175765
...
29
Cap Brake Parking HUS-71673
...
30
Bracket Transmission HUS-174973
...
32
Bolt Hex Hd 5/16-18 unc x 3/4 HUS-74760512
...
34
Shaft Foot Pedal HUS-175578
...
35
Bearing Nylon HUS-120183X
...
36
Washer HUS-19211616
...
37
Pin Roll HUS-1572H
...
38
Pulley Idler Composite HUS-179114
...
39
Bolt HUS-72110622
...
41
Keeper Belt Idler HUS-175556
...
47
Pulley Idler V-Belt HUS-127783
...
48
Bellcrank Clutch Grnd Drustl HUS-154407
...
49
Retainer Belt HUS-123205X
...
50
Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5 HUS-72110612
...
51
Nut HUS-73680600
...
52
Nut Crownlock 5/16-28 HUS-73680500
...
53
Link Clutch HUS-105710X
...
55
Spring Return Clutch HUS-105709X
...
56
Screw 3/8-16 x 1-1/4 HUS-17060620
...
57
V-Belt Drive HUS-140294
...
59
Keeper Belt Center HUS-169691
...
61
Screw 3/8-16 x .875 HUS-17120614
...
62
Cover Pedal HUS-8883R
...
63
Engine Pulley HUS-175410
...
64
Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 THr. HUS-173937
...
65
Washer HUS-10040700
...
66
Keeper Belt Engine Hydro HUS-154778
...
69
Screw Hex wsh Hi Lo 1/4 x 1/2 unc HUS-142432
...
70
Guide Belt Mower Drive RH HUS-134683
...
71
Strap Torque, LH HUS-169183
...
73
Strap Torque, RH HUS-169182
...
74
Spacer Axle HUS-137057
...
75
Washer 25/32 x 1 1/4 x 16 Ga. HUS-121749X
...
76
Ring, E HUS-12000001
...
77
Key Square HUS-123583X
...
78
Washer 25/32 x 1-5/8 x 16 Ga. HUS-121748X
...
81
Shaft Asm Cross HUS-165594
...
82
Spring Torsion HUS-123782X
...
83
Washer 17/32 x 3/4 x 16 Ga. HUS-19171216
...
84
Link Transaxle HUS-169843
...
89
Console Shift HUS-169372X428
...
95
Control Asm Bypass Hydro HUS-170201
...
96
Retainer Spring 1" HUS-4497H
...
103
Nut, Hex Jam Top Lock 1/2-20 unf HUS-73940800
...
112
Washer 9/32 x 3/4 x 10 Ga. HUS-19091210
...
116
Bolt 3/8-16 x 1 HUS-72140608
...
120
Bolt Hex 3/8-16 x 1-1/2 HUS-73900600
...
150
Spacer Retainer HUS-175456
...
151
Washer 13/32 x 2 x 10 HUS-19133210
...
156
Washer 5/16 x 1.0 x 1.25 HUS-166002
...
158
Bracket Shift Mount HUS-165589
...
159
Hub Tapered Flange Shift HUS-183900
...
161
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5 HUS-72140406
...
162
Nut Crownlock 1/4-20 unc HUS-73680400
...
163
Bolt Hex Fin 1/4-20 x 1 HUS-74780416
...
165
Bracket Pivot Lever HUS-165623
...
166
Screw 5/16-18 x 1.0 x .125 HUS-17490510
...
168
Bolt Shoulder 5/16-18 x .561 HUS-165492
...
169
Plate Fastening HUS-165580
...
197
Nyliner Snap-In 5/8 HUS-169613
...
198
Washer Nyliner 7/8 ID x .105 HYD HUS-169593
...
199
Bolt Shoulder 5/16-18 unc HUS-169612
...
200
Bolt Rdhd Sqnk 5/16-18 unc x 1 HUS-72140508
...
202
Bolt Rd Hd 3/8-16 unc x 1-1/2 Gr. 5 HUS-72110614
...
205
Washer 17/32 x 1 x 16 Ga. HUS-19171616
...
212
Nut Hex flange Lock HUS-145212
...
263
Screw 3/8-16 x .75 HUS-17000612
