Husqvarna PO17542STC (2004) Tractor

Model: PO17542STC (2004)

Back To Assemblies

Save Part Not Listed?
product name

Mower Deck

...
...
1
Mower Deck Assembly, 42" HUS-165892
...
2
Bolt HUS-72140506
...
3
Bracket Asm Fr. Sway Bar 3/42 HUS-138017
...
4
Bracket Asm Deck 42" Sway Bar HUS-165460
...
5
Retainer Spring HUS-4939M
...
6
Bar Sway Deck HUS-178024
...
8
Bolt 3/8-24 x 25 Gr. 8 patched HUS-850857
...
9
Washer, Lock HUS-10030600
...
10
Washer, Hardened (The following blades are available) HUS-140296
...
11
Blade, 42" Mulching Std (For mulching mowers only) HUS-134149
...
11
Blade, 42" Mulching Premium (For better wear when mulching HUS-139775
...
11
Blade, 42" Hi-Lift (For bagging or discharging) HUS-138971
...
13
Shaft Assembly, Mandrel, Vented HUS-137645
...
14
Housing, Mandrel, Vented HUS-128774
...
15
Bearing, Ball, Mandrel HUS-110485X
...
16
Stripper, Mandrel Deck HUS-174493
...
18
Bolt, Carriage 5/16-18 x 5/8 HUS-72140505
...
19
Bolt, Shoulder HUS-132827
...
20
Baffle, Vortex HUS-159770
...
21
Nut HUS-73680500
...
23
Bracket, Deflector Mower 42" HUS-177563
...
24
Cap, Sleeve 80 x 112 Blk Mower HUS-105304X
...
25
Spring, Torsion, Deflector 2 52 HUS-123713X
...
26
Nut, Push Phos & Oil HUS-110452X
...
27
Shield, Deflector 42" Blk HUS-130968X428
...
28
Washer 11/32 x 5/8 x 16 Ga. HUS-19111016
...
29
Rod, Hinge 42" 6 75 W/G HUS-131491
...
30
Screw Thdrol Washer Head HUS-173984
...
31
Washer, Spacer Mower Vented HUS-187690
...
32
Pulley, Mandrel HUS-153535
...
33
Nut, Toplock 9/16 Flange HUS-178342
...
34
Bolt HUS-72110612
...
36
Pulley, Idler, Flat HUS-131494
...
37
Washer 13/32 x 13/16 x 16 Ga. HUS-19131316
...
40
Nut HUS-73900600
...
44
Guard, Mandrel, LH HUS-140088
...
45
Retainer HUS-4497H
...
46
Screw, Thdrol 1/4-20 x 5/8 T HUS-137729
...
48
Washer, Hardened HUS-133944
...
52
Bolt, Shoulder 5/16-18 unc HUS-139888
...
53
Arm Assembly, Pad, Brake HUS-184907
...
54
Washer, Hardened HUS-178515
...
55
Arm, Idler HUS-155046
...
56
Spacer, Retainer HUS-165723
...
59
Guard TUV Idler HUS-141043
...
67
Knob HUS-106932X
...
68
V-Belt, 42" Mower HUS-144959
...
142
Arm Spring Brake Mower HUS-165890
...
143
Bracket Arm Idler 42" HUS-157109
...
144
Keeper Belt 42" Clutch Cable HUS-158634
...
145
Pulley Idler Flat HUS-165888
...
146
Bolt Carriage Idler HUS-171977
...
147
Spring Extension HUS-131335
...
148
Spring Return Idler HUS-169022
...
149
Retainer Spring Yellow HUS-165898
...
150
Washer 9/32 x 3/4 x 10 Ga. HUS-19091210
...
152
Clutch Cable 42" HUS-169676
...
158
Screw Hex Thd Cut 1/4-20 x 1/2 HUS-17720408
...
159
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 HUS-72140614
...
184
Washer 13/32 x 7/8 x 10 Ga. HUS-19131410
...
185
Head Asm Cable Clutch HUS-188234
...
xx
Mandrel Assembly (Includes Housing, Shaft and Shaft Hardware Only-Pulley Not Included) HUS-130794
...
xx
Replacement Mower, Complete HUS-171639

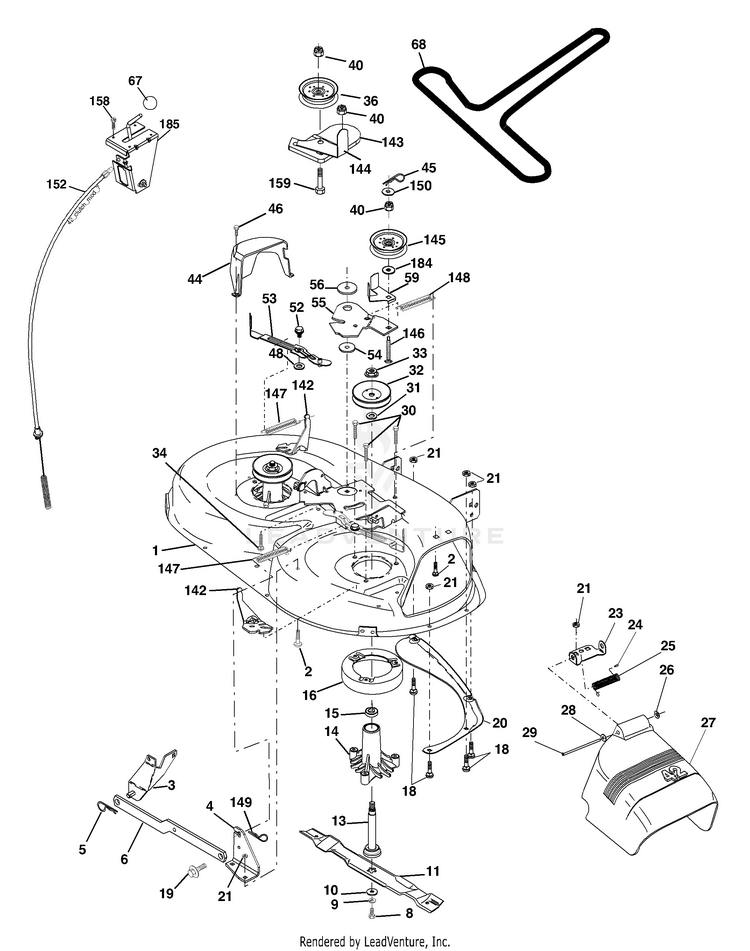

Schematic Image Zoomed
