Husqvarna PO17542STC (2004) Tractor

Model: PO17542STC (2004)

Back To Assemblies

Save Part Not Listed?
product name

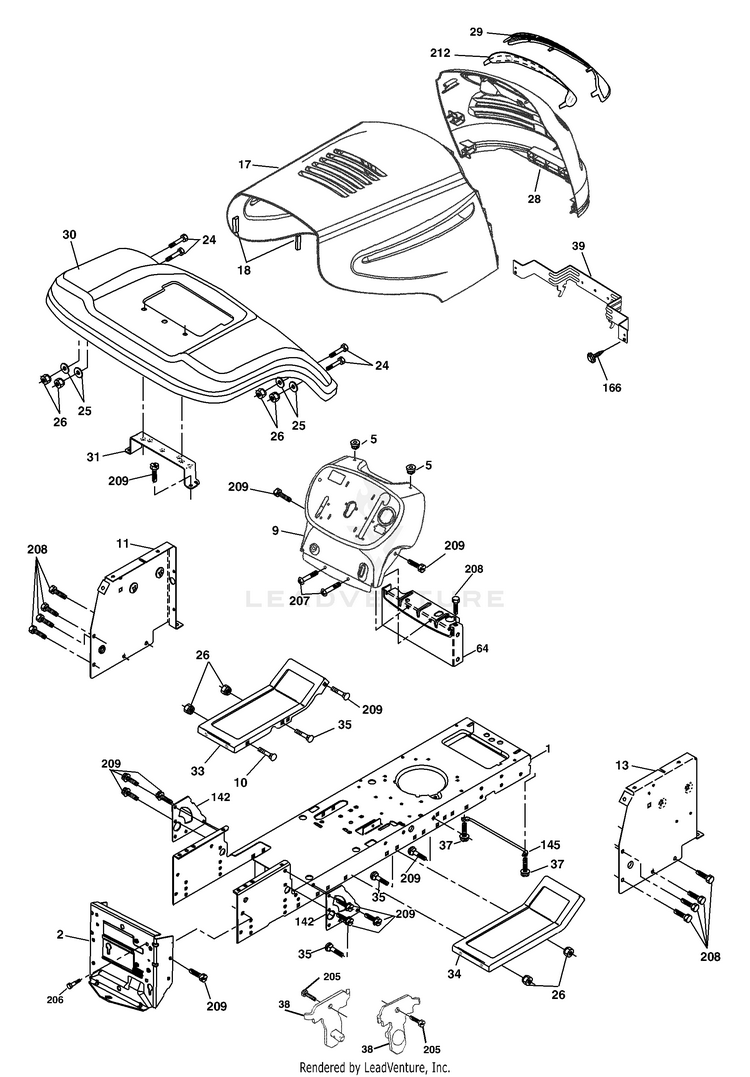

Chassis And Enclosures

...
...
1
Chassis HUS-174619
...
2
Drawbar HUS-176554
...
5
Bumper Hood/Dash HUS-155272
...
9
Dash HUS-187846X012
...
10
Bolt Carriage 3/8-16 x 1 HUS-72140608
...
11
Panel Dash Lh HUS-174996
...
13
Panel Dash Rh HUS-179174X010
...
17
Hood HUS-183394X428
...
18
Bumper Hood HUS-126938X
...
24
Bolt Fin Hex 3/8-16 x 1 Gr. 5 HUS-74780616
...
25
Washer 13/32 x 13/16 x 12 Ga. HUS-19131312
...
26
Nut Lock Hex W/Ins 3/8-16 unc HUS-73800600
...
28
Grille HUS-183826
...
29
Lens HUS-183824X599
...
30
Fender Footrest STLT Pnt HUS-169468X428
...
31
Bracket Support Fender HUS-136619
...
33
Footrest Pnt Lh HUS-179716X428
...
34
Footrest Pnt Rh HUS-179717X428
...
35
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 HUS-72110606
...
37
Screw Thdrol 6/16-18 x 1/2 TYT HUS-17490508
...
38
Bracket Asm. Pivot Mower Rear HUS-175710
...
39
Bracket Pivot HUS-174714
...
64
Dash Lower STLT HUS-154798
...
142
Plate Reinforcement STLT HUS-175702
...
145
Rod Pivot Chassis/Hood HUS-156524
...
166
Screw HWHD Hi-Lo #13-16 x 5/8 HUS-171875
...
205
Screw Thdrol 3/8-16 x 1-1/4 HUS-17490608
...
206
Bolt Shoulder 5/16-18 HUS-170165
...
207
Screw Thdrol 5/16-18 x 1/2 HUS-17670508
...
208
Screw Thdrol 3/8-16 x 1/2 HUS-17670608
...
209
Screw Hex Wsh Thdr. 3/8-16 x 3/4 HUS-17000612
...
212
Insert Lens Reflect HUS-183823
...
xx
Plug Btn Blk .359 HUS-5479J
...
xx
Plug Dome Plastic (Choke Hole) HUS-187801
