Husqvarna PO165H42STB (2002) Tractor

Model: PO165H42STB (2002)

Back To Assemblies

Save Part Not Listed?
product name

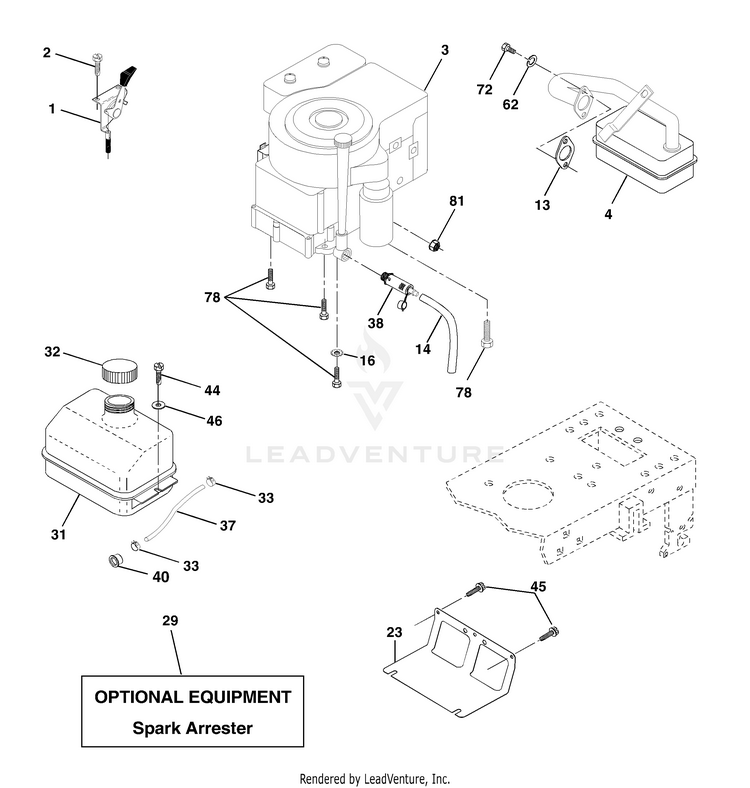

Engine

...
...
1
Control Throt /Ch Flag HUS-170551
...
2
Screw Hex Thd Cut 1/4-20x1/2 HUS-17720408
...
4
Muffler Exhaust B&S Lt HUS-137352
...
13
Gasket 1 313 Id Tin Plated HUS-165291
...
14
Tube Drain Oil Easy HUS-148456
...
16
Washer Lock Ext Tooth 3/8 HUS-11050600
...
23
Shield Browning/Debris Guard HUS-169837
...
29
Arrestor Spark HUS-137180
...
31
Tank Fuel 1 25 Fr HUS-109202X
...
32
Cap Asm Fuel W/sym Vented HUS-140527
...
33
Clamp Hose Blk HUS-123487X
...
37
Line Fuel 20" HUS-137040
...
38
Plug Drain Oil Easy HUS-148315
...
40
Bushing Snap Nyl Blk Fuel Line HUS-124028X
...
44
Screw Hexwsh Thdrol 1/4-20x3/4 HUS-17670412
...
45
Screw Hex Wsh Thdrol 3/8-16 HUS-17000612
...
46
Washer 9/32 X 7/8 X 16ga HUS-19091416
...
62
Washer Lock Hvy Hlcl Spr 5/16 HUS-10040500
...
72
Screw Hexhd Cap 5/16-18x3/4 HUS-71070512
...
78
Screw Thdrol 3/8-16x1-1/4 HUS-17060620
...
81
Nut Keps Hex 1/4-20 Unc HUS-73510400
