Husqvarna PO16542B (2002) Tractor

Model: PO16542B (2002)

Back To Assemblies

Save Part Not Listed?
product name

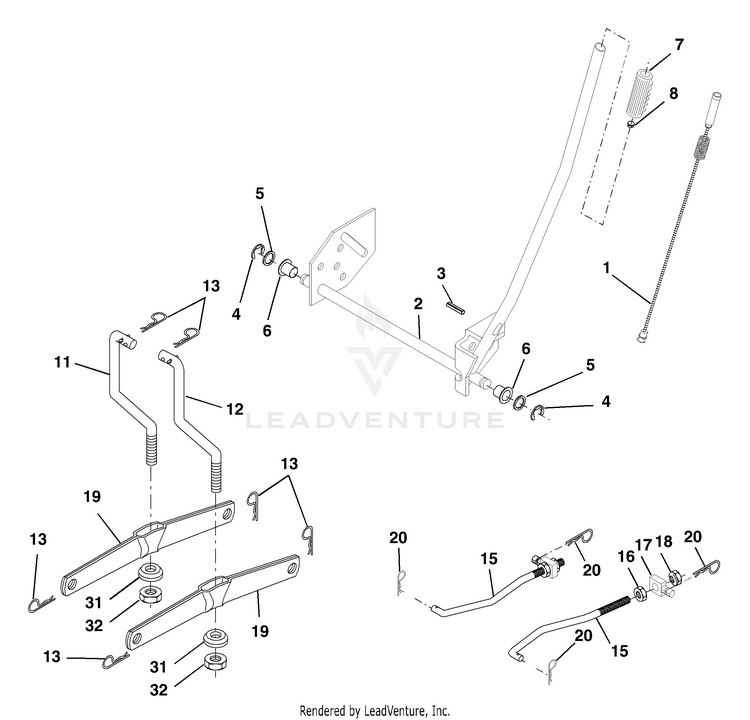

Mower Lift

...
...
1
Wire Asm Inner/Sprg w/Plunger HUS-159460
...
2
Shaft Asm Lift HUS-159471
...
3
Pin Groove HUS-105767X
...
4
E Ring #5133-62 HUS-12000002
...
5
Washer 21/32 x 1 x 21 Ga. HUS-19211621
...
6
Bearing Nylon HUS-120183X
...
7
Grip Handle HUS-109413X
...
8
Button Plunger HUS-124526X
...
11
Link Lift Lh HUS-139865
...
12
Link Lift Rh HUS-139866
...
13
Retainer Spring HUS-4939M
...
15
Link Front HUS-173288
...
16
Nut Jam Hex 1/2-13 Unc HUS-73350800
...
17
Trunnion HUS-175689
...
18
Nut Lock w/Wsh 1/2-13 Unc HUS-73800800
...
19
Arm Suspension Rear HUS-139868
...
20
Retainer Spring HUS-163552
...
31
Bearing Pvt Lift HUS-169865
...
32
Nut Crownlock 3/8-24 HUS-73540600
Schematic Image Zoomed
