Husqvarna PO15538LT 96012006806 (2009-11) Tractor/Ride Mower

Model: PO15538LT 96012006806 (2009-11)

Back To Assemblies

Save Part Not Listed?
product name

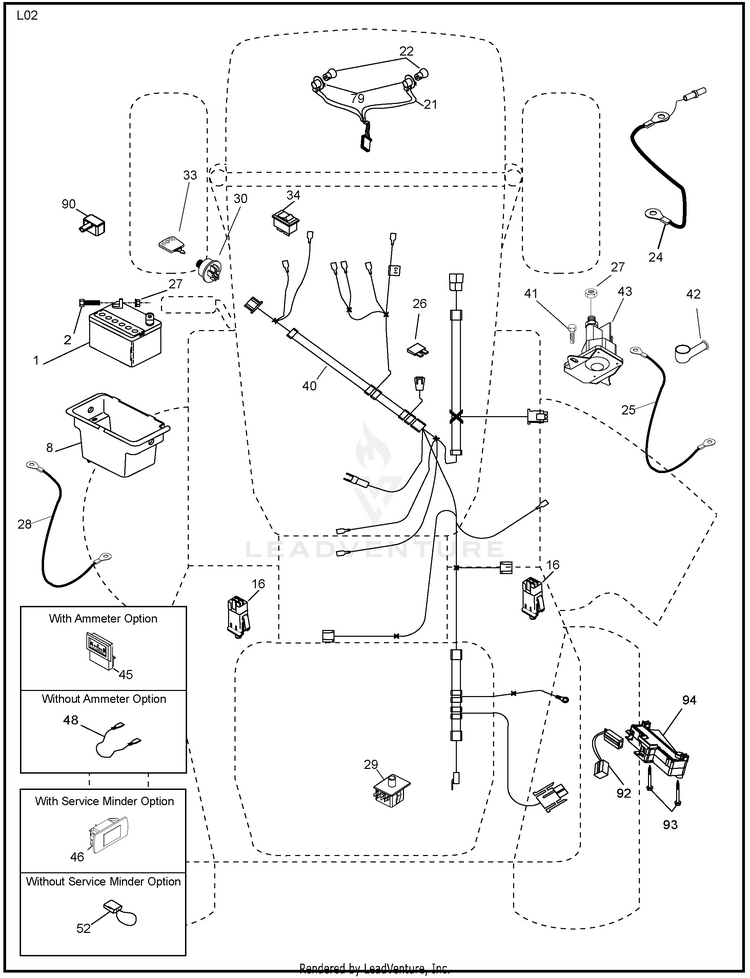

Electrical

...
...
1
Battery HUS-163465
...
2
Bolt Hex Hd 1/4-20 unc x 3/4 HUS-74760412
...
8
Box Battery HUS-176689
...
16
Switch Interlock HUS-176138
...
21
Harness Asm Light w/4152j HUS-175688
...
22
Bulb Light #1156 HUS-4152J
...
24
Cable Battery 6 Ga. 11" Red HUS-421299
...
25
Cable Battery HUS-421997
...
26
Fuse 20 AMP HUS-175158
...
27
Nut Keps Hex 1/4-20 unc HUS-73510400
...
28
Cable Ground 6 Ga. 12" Black HUS-421298
...
29
Switch HUS-192749
...
30
Switch Ign HUS-193350
...
33
Key/Chain HUS-411935
...
34
Switch Light/Reset HUS-110712X
...
40
Harness Ign HUS-197428
...
41
Bolt Blk Fin Hex 1/4-20 HUS-71110408
...
42
Cover Terminal Red HUS-131563
...
43
Solenoid HUS-192507
...
48
Adapter Ammeter HUS-140844
...
52
Protection Wire Loop HUS-141940
...
79
Socket Asm. Bulb HUS-175242
...
90
Cover Terminal Battery HUS-180449
...
92
Harness Pigtail HUS-196615
...
93
Screw Plastite 10-14 x 2.0 HUS-192540
...
94
Module Reverse HUS-191834
