Husqvarna PO1538B (2002) Tractor

Model: PO1538B (2002)

Back To Assemblies

Save Part Not Listed?
product name

Mower Lift

...
...
1
Wire Asm Inner/Sprg w/plunger HUS-159460
...
2
Shaft Asm Lift RH HUS-159471
...
3
Pin Groove 1 500 Zinc HUS-105767X
...
4
E Ring #5133-62 HUS-12000002
...
5
Washer 21/32 X 1 X 21 Ga HUS-19211621
...
6
Bearing Nylon Blk 629 Id HUS-120183X
...
7
Grip Handle Bicycle Matte Blk HUS-109413X
...
8
Button Plunger Black HUS-124526X
...
11
Link Lift LH Fixed Length HUS-139865
...
12
Link Lift RH Fixed Length HUS-139866
...
13
Retainer Spring HUS-4939M
...
15
Link Front HUS-173288
...
16
Nut Jam Hex 1/2-13 Unc HUS-73350800
...
17
Trunnion HUS-175689
...
18
Nut Lockw/Wsh 1/2-13 Unc HUS-73800800
...
19
Arm Suspension Rear HUS-139868
...
20
Retainer, Spring HUS-163552
...
31
Bearing Pvt Lift HUS-169865
...
32
Nut Crownlock 3/8-24 HUS-73540600

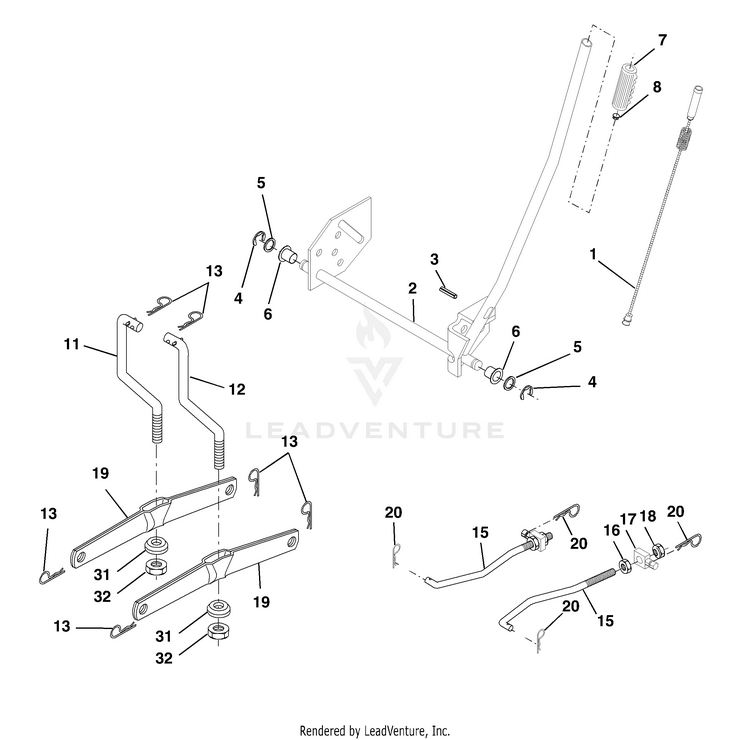

Schematic Image Zoomed
