Husqvarna PO10527ESA (2004) Snow Thrower

Model: PO10527ESA (2004)

Back To Assemblies

Save Part Not Listed?
product name

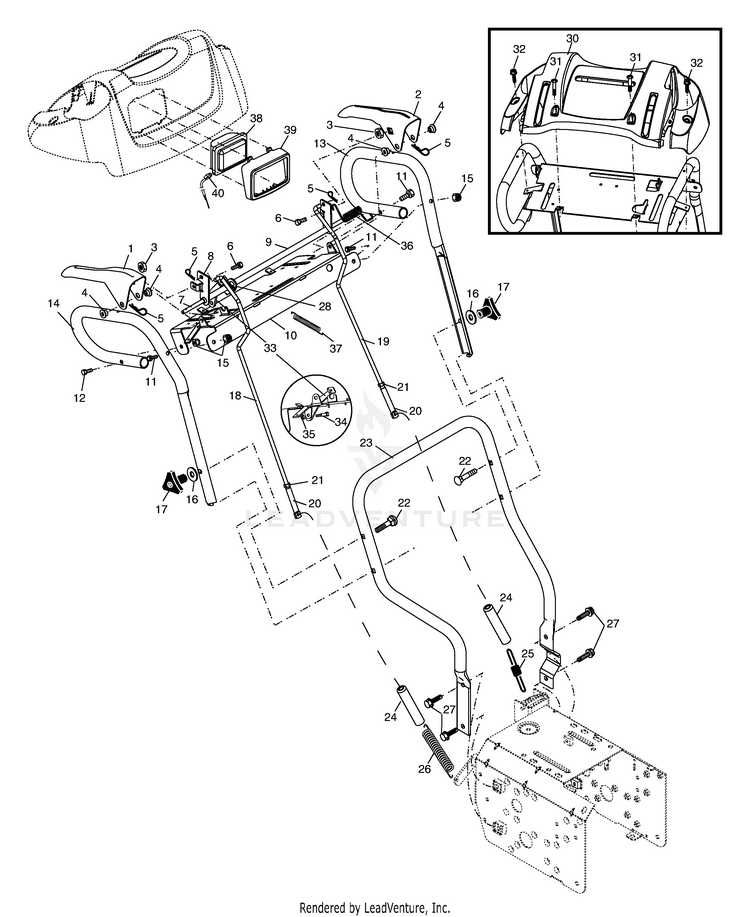

Handles

...
...
1
Lever, Auger Control, RH HUS-178875X479
...
2
Lever, Traction Drive Control, LH HUS-178648X479
...
3
Nut, Cage 1/4-20 HUS-179439
...
4
Bushing, Flange HUS-178888
...
5
Retainer, Hairpin HUS-169675
...
6
Screw, Hex Head 1/4-20 x 3/4 HUS-180402
...
7
Rod, Interlock HUS-178652
...
8
Tube Assembly, Interlock, RH HUS-184003
...
9
Tube Assembly, Interlock, LH HUS-178651
...
10
Panel, Control HUS-178645X479
...
11
Screw, Hex Head 5/16-18 x 1-1/2 HUS-74780524
...
12
Screw, Hex Head 5/16-18 x 1-3/4 HUS-74780528
...
13
Handle Tube, LH HUS-178646X479
...
14
Handle Tube, RH HUS-178696X479
...
15
Nut, Lock 5/16-18 HUS-73800500
...
16
Washer, Flat 3/8 HUS-19131316
...
17
Knob, Handle HUS-178899
...
18
Rod, Auger Control HUS-184594
...
19
Rod, Traction Control HUS-193081
...
20
End, Control Rod HUS-180428
...
21
Nut, Hex, Jam 5/16-18 HUS-73350500
...
22
Bolt, Carriage 3/8-16 x 2-1/4 HUS-72120618
...
23
Handle Tube, Lower HUS-178643X479
...
24
Sleeve, Spring HUS-180447
...
25
Spring, Traction Drive HUS-180926
...
26
Spring, Auger Control HUS-178669
...
27
Screw, Hex Head 3/8-16 x 1 HUS-71210616
...
28
Clip, Panel HUS-180494
...
30
Console, Panel HUS-182906
...
31
Screw, Hex Head, Tapping #10-24 x 1-1/4 HUS-175262
...
32
Screw, Hex Head, Tapping #10-24 x 1/2 HUS-184471
...
33
Latch, Interlock HUS-175339X008
...
34
Bolt, Shoulder HUS-183518
...
35
Nut, Lock 1/4-20 HUS-68038
...
36
Spring, Torsion HUS-178831
...
37
Spring, Interlock HUS-178658
...
38
Headlight, Flood HUS-180927
...
39
Bezel, Headlight HUS-178668
...
40
Harness, Headlight (Flood) HUS-178770
