product name

Husqvarna PLS 2610R (2010) Log Splitters

Model: PLS 2610R (2010)

Save Part Not Listed?
product name

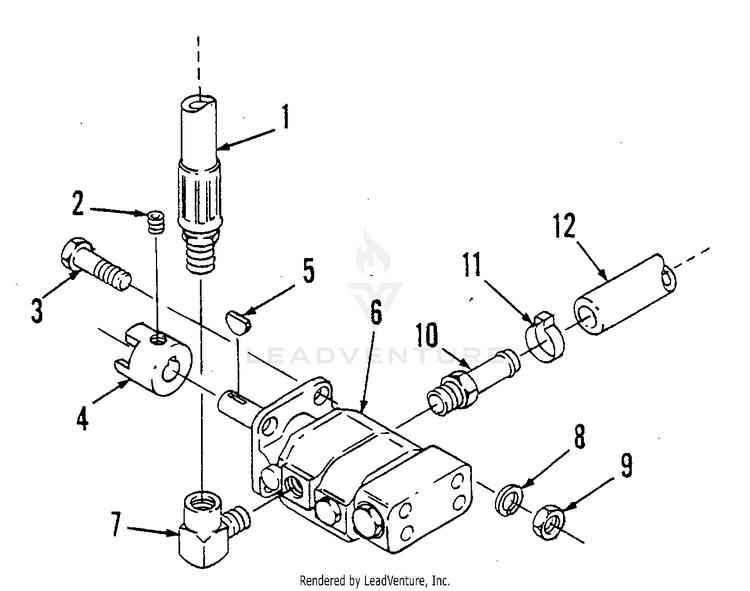

Pump - Style "B" Pump

...
...
1
Pressure Hose Assembly HUS-58025
...
2
Set Screw HUS-58057
...
3
Hex Head Bolts (5/16-18 x 1", Gr. 8) (4 used) HUS-58058
...
4
Hub Coupling (1/2") HUS-58004
...
5
Woodruff Key (1/8") HUS-58092
...
6
Hydraulic pump (Style "B") HUS-58006
...
7
90deg Street Ell (1/2 NPT) HUS-58099
...
8
Split Lock Washers (5/16) (4 used) HUS-58055
...
9
Fin. Hex Nut (5/16-18) (4 used) HUS-58051
...
10
Straight fitting (1/2 NPT x 5/8) HUS-58101
...
11
Hose clamp (2 used) HUS-58064
...
12
Suction hose HUS-58096

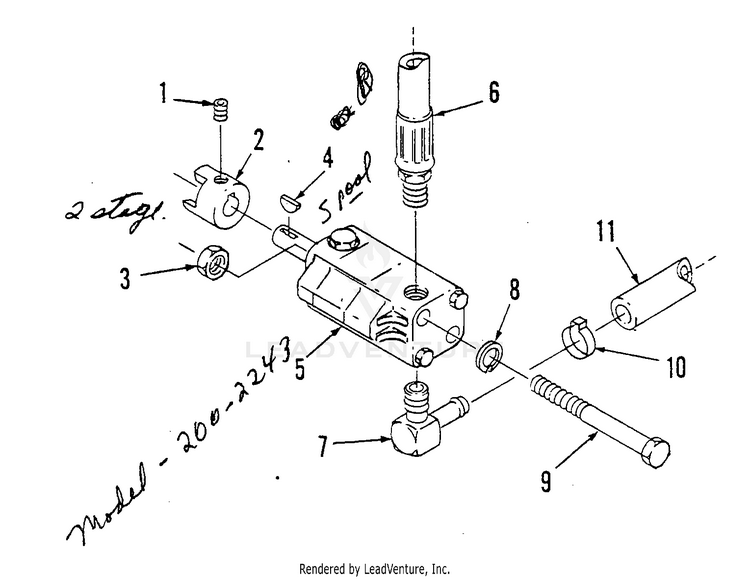

Pump - Style "M" Pump

...
...
1
Set Screw HUS-58057
...
2
Coupling hub (7/16") HUS-58005
...
3
Fin. Hex nut (5/16-18) (2 used) HUS-58051
...
4
Woodruff Key (3/32") HUS-58091
...
5
Hydraulic pump (Style "M") HUS-58007
...
6
Pressure hose assembly HUS-58025
...
7
90deg Male Elbow (1/2 NPT x 5/8) HUS-58066
...
8
Split lock washer (5/16) (2 used) HUS-58055
...
9
Hex head bolts (5/16-18 x 6) (2 used) Two bolts are an integral part of this pump and are included when ordering the pump. HUS-58093
...
10
Hose Clamps (2 used) HUS-58064
...
11
Suction hose HUS-58144

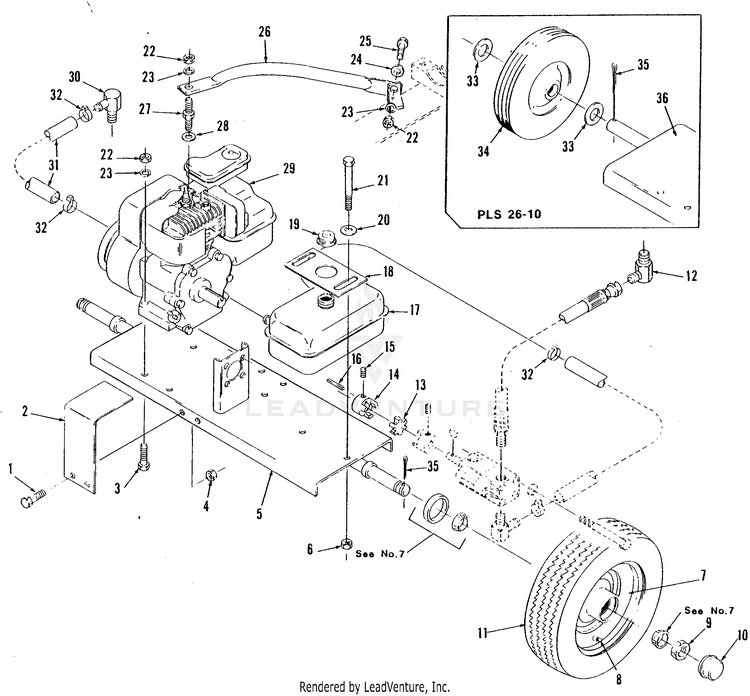

Repair Parts

...
...
1
Hex head bolt (3/8-16 x 1/2) (2 used) HUS-58062
...
2
Coupling shield HUS-58073
...
3
Hex head bolt (5/16-18 x 1-1/2) (4 used) HUS-58054
...
4
Hex lock nut (3/8-16) (2 used) HUS-58047
...
5
Engine mounting channel assy. (PLS 26-10R only) HUS-58079
...
6
Fin. hex nut (3/8-16) (2 used) HUS-58061
...
7
Wheel w/bearings, seal & valve stem (PLS 26-10R only) HUS-58083
...
8
Valve stem only (PLS 26-10R only) HUS-58087
...
9
Hex jam lock nut (1-14) (2 used) (PLS 26-10R only) HUS-58085
...
10
Dust cap (2 used) (PLS 26-10R only) HUS-58086
...
11
Tire & wheel assy. (PLS 26-10R only) HUS-58081
...
12
90deg elbow (3/4 NPT x 3/4-16JIC) HUS-58068
...
13
Rubber spider HUS-58003
...
14
Coupling hub (3/4") HUS-58002
...
15
Set screw HUS-58057
...
16
Key HUS-58056
...
17
Oil reservoir HUS-58023
...
18
Tank mounting plate HUS-58052
...
19
Filler cap HUS-58048
...
20
Flat washer (3/8 x 7/8 x .083) (2 used) HUS-58074
...
21
Hex head bolt (3/8-16 x 5-1/2) (2 used) HUS-58049
...
22
Fin. Hex nut (5/16-18) (6 used) HUS-58051
...
23
Split lock washer (5/16) (6 used) HUS-58055
...
24
Flat washer (5/16") (1 used) HUS-58143
...
25
Hex head bolt (5/16-18 x 1) (1 used) HUS-58058
...
26
Vibration strap HUS-58098
...
27
Double-end head bolt HUS-58076
...
28
Flat washer HUS-58077
...
29
Engine 5 HP HUS-58089
...
30
90deg elbow (3/4 NPT x 5/8 hose) HUS-58065
...
31
Return hose HUS-58097
...
32
Hose clamps (4 used on complete unit) HUS-58064
...
33
Flat washer (4 used) (PLS 26-10 only) HUS-58044
...
34
Tire & wheel assy. (PLS 26-10 only) HUS-58043
...
35
Cotter pin (2 used) HUS-58045
...
36
Engine mounting channel assy. (PLS 26-10 only) HUS-58078

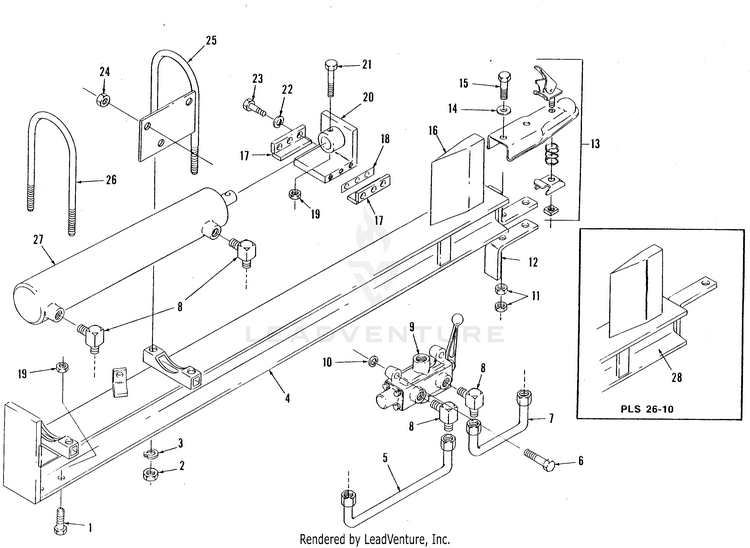

Repair Parts

...
...
1
Hex Head Bolt (3/8-16 x 1") (4 used) HUS-58046
...
2
Fin. Hex Nut Nut (1/2-13) (4 used) HUS-58122
...
3
Split Lock Washer (1/2) (4 used) HUS-58121
...
4
Main Beam Assy. (PLS 26-10R) HUS-58114
...
5
Steel Cylinder Tube (18") HUS-58027
...
6
Hex Head Bolt (3/8-16 x 1-3/4) (3 used) HUS-58113
...
7
Steel Cylinder Tube (6") HUS-58026
...
8
90deg Elbow (1/2 NPT x 3/4-16 JIC) (4 used) HUS-58029
...
9
Control Valve HUS-58017
...
10
Split Lock Washer (3/8) (3 used) HUS-58059
...
11
Hex Lock Nut (7/16-14) (4 used) HUS-58126
...
12
Coupler Mounting Bracket HUS-58123
...
13
Hitch Coupler HUS-58024
...
14
Flat Washer (1/2 x 1-1/4 x .083) (2 used) HUS-58125
...
15
Hex Head Bolt (7/16-14 x 2-1/2) (2 used) HUS-58124
...
16
Wedge HUS-58031
...
17
Side Bar Assy. HUS-58022
...
18
Side Bar Spacer HUS-58145
...
19
Hex Lock Nut (3/8-16) (5 used) HUS-58047
...
20
Plunger Block Assy. HUS-58021
...
21
Hex Head Bolt (3/8-16 x 2-1/2) HUS-58118
...
22
Split Lock Washer (5/16) (6 used) HUS-58055
...
23
Hex Head Bolt (5/16-18 x 1, Gr. 8) (6 used) HUS-58058
...
24
Fin. Hex Nut (3/8-16) (3 used) HUS-58061
...
25
U-Bolt & Valve Plate Assy. HUS-58119
...
26
U-Bolt HUS-58112
...
27
Hydraulic Cylinder HUS-58116
...
28
Main Beam Assy. (PLS 26-10) HUS-58115

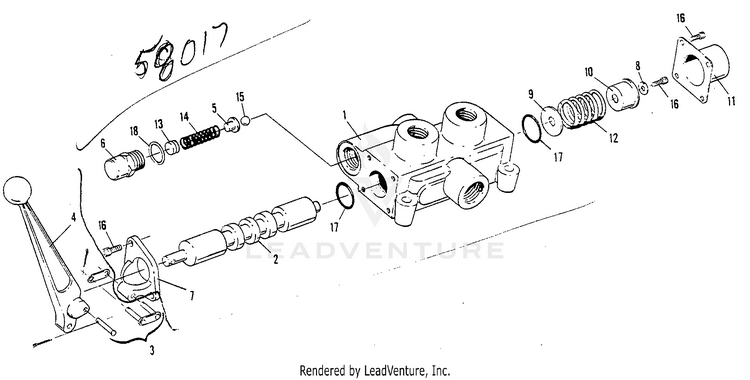

Repair Parts

...
...
1
Valve Housing (1-Spool w/relief) The Select-Fit Honing Process at the factory, which fits a spool to an individual valve body eliminates the possibility of ordering the valve body or spool as separate items. HUS-58151
...
2
4-Way Spool (Open Center) The Select-Fit Honing Process at the factory, which fits a spool to an individual valve body eliminates the possibility of ordering the valve body or spool as separate items. HUS-58151
...
3
Pin Kit HUS-58018
...
4
Handle HUS-58154
...
5
Relief Spring Plug HUS-58155
...
6
Relief O-Ring Guide HUS-58156
...
7
Handle Bracket HUS-58019
...
8
Centering Spring Washer HUS-58158
...
9
Stop Washer HUS-58159
...
10
Stop Collar HUS-58161
...
11
End Cap HUS-58162
...
12
Light Centering Spring HUS-58163
...
13
Shim HUS-58164
...
14
Relief Spring (1750-2250 psi) HUS-58165
...
15
Ball (7/16 Steel) HUS-58166
...
16
Machine Screw HUS-58167
...
17
Spool Seal HUS-58168
...
18
Relief Plug O-Ring HUS-58169
