Husqvarna PDGT26H54A (2004) Tractor

Model: PDGT26H54A (2004)

Back To Assemblies

Save Part Not Listed?
product name

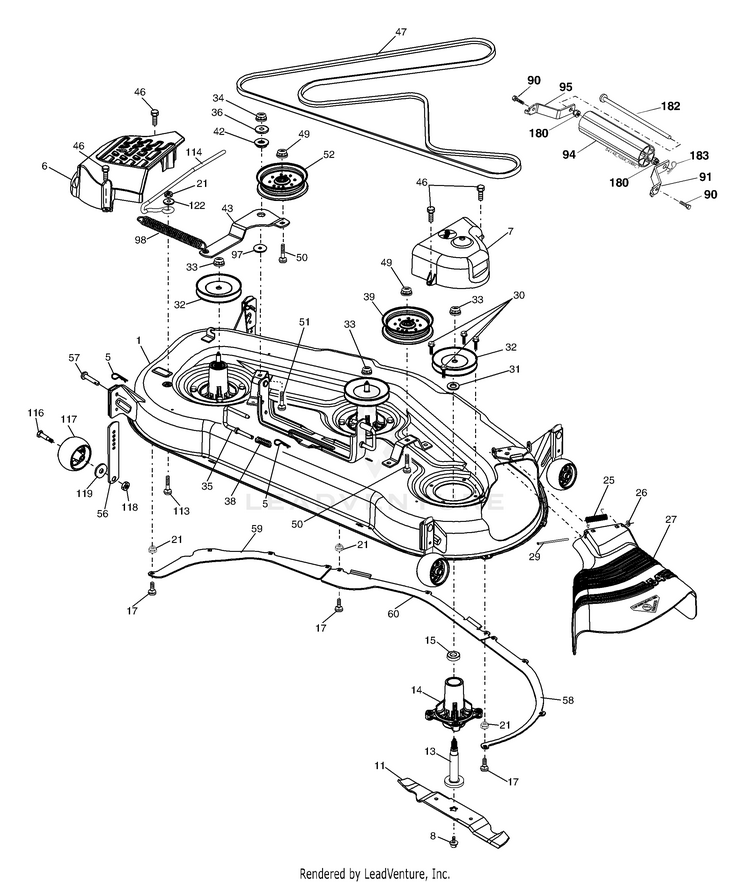

Mower Deck

...
...
1
Deck Weldment Mower HUS-187295X421
...
5
Retainer Spring HUS-4939M
...
6
Cover Mandrel LH HUS-187297
...
7
Cover Mandrel RH HUS-188187
...
8
Bolt 7/16 Asm. Blade HUS-174365
...
11
Blade, Standard (For mulching mowers only) HUS-187254
...
13
Shaft Asm. w/Lower Bearing HUS-187291
...
14
Housing, Mandrel HUS-187281
...
15
Bearing, Ball, Mandrel HUS-110485X
...
17
Bolt, Carriage 5/16-18 x 5/8 HUS-72140505
...
21
Nut, Crownlock 5/16-18 unc HUS-73680500
...
25
Spring, Torsion HUS-178102
...
26
Nut, Push HUS-110452X
...
27
Deflector Shield HUS-187257X428
...
29
Rod, Hinge HUS-131491
...
30
Screw, Thdroll Washer Head HUS-173984
...
31
Washer, Spacer Mower Vented HUS-187690
...
32
Pulley, Mandrel HUS-177865
...
33
Nut, Flg. Top Lock Cntr. 9/16 HUS-178342
...
34
Nut HUS-73680600
...
35
Pin Suspension Rear HUS-188635
...
38
Spring Compression HUS-188657
...
39
Pulley, Idler, Stationary HUS-187284
...
42
Spacer, Retainer HUS-122052X
...
43
Arm, Idler HUS-187278
...
46
Screw, Thdroll. 1/4-20 x 5/8 HUS-137729
...
47
V-Belt, Mower, Secondary HUS-191273
...
49
Nut, Lock Flg. 3/8-16 unc HUS-73900600
...
50
Bolt, Carr. 3/8-16 x 2 HUS-72110616
...
51
Bolt HUS-72110610
...
52
Pulley Idler Clutching HUS-188460
...
56
Bar Pnt Adj. HUS-155986
...
57
Pin Head Rivet HUS-156941
...
58
Baffle Right HUS-187342
...
59
Baffle Left HUS-187344
...
60
Baffle Center HUS-187607
...
90
Bolt 5/16-18 x 1 HUS-74760516
...
91
Bracket Asm N Roller RH HUS-180535
...
94
Roller Nose 48" HUS-176066
...
95
Bracket Asm N Roller LH HUS-180534
...
97
Washer Hardened HUS-19133210
...
98
Spring Clutch Drive HUS-187282
...
113
Bolt Rdhd Sqnk 5/16-18 x 3/4 HUS-72110508
...
114
Rod Tension Relief HUS-187556
...
116
Bolt, Shoulder HUS-184219
...
117
Gauge Wheel HUS-174873
...
118
Nut, Centerlock 3/8-16 unc HUS-73930600
...
119
Washer 3/8 x 7/8 x 14 Ga. HUS-19121414
...
122
Bushing Tension Relief HUS-187557
...
180
Nut 5/16-18 HUS-73800500
...
182
Rod Roller Nose Narrow HUS-179127
...
183
Retainer Spring HUS-163552
...
xx
Mandrel Asm. Service (Includes Key Nos. 13-15 and 33) HUS-187292
...
xx
Replacement Mower, Complete (Std. Deck-Order separately nose roller components key nos. 90, 91, 94, 95, 180, 182, 183) HUS-188271
