product name

Husqvarna PDGT26H54A (2004) Tractor

Model: PDGT26H54A (2004)

Back To Assemblies

Save Part Not Listed?
product name

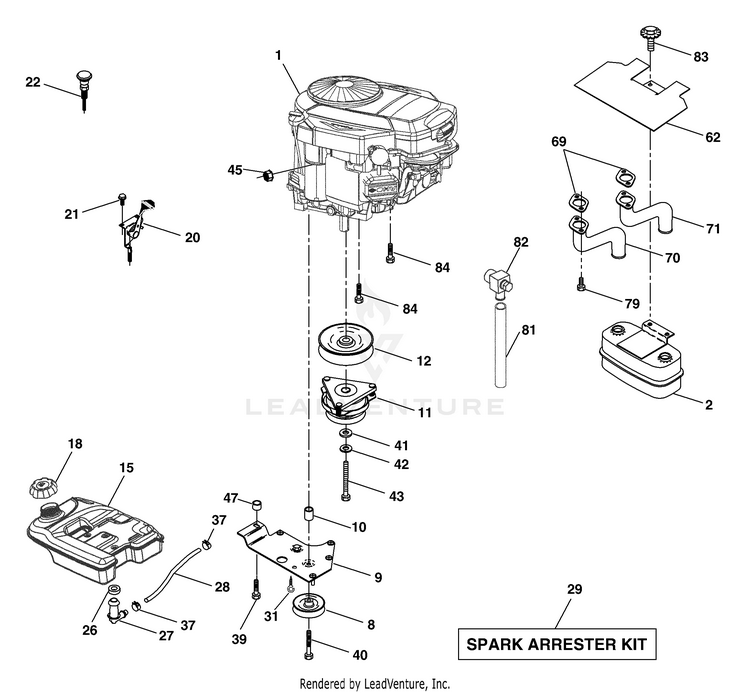

Engine

...
...
2
Muffler Side HUS-149723
...
8
Pulley V-Idler HUS-121361X
...
9
Keeper Asm. Belt Engine VGT HUS-177748
...
10
Bushing HUS-175287
...
11
Clutch Electric HUS-179335
...
12
Pulley Engine VGT Elect Clutch HUS-143996
...
15
Tank Fuel Rear 5.0 HUS-179115
...
18
Cap Asm. Fuel HUS-179124X428
...
20
Control Throttle HUS-175437X428
...
21
Screw Hw Hd Hi-Lo #13-16 x 3/4 HUS-171875
...
22
Control Choke HUS-187767X428
...
26
Bushing HUS-3645J
...
27
Stem Tank Fuel HUS-139277
...
28
Fuel Line HUS-7834R
...
29
Spark Arrester Kit HUS-137180
...
31
Clip HUS-145006
...
37
Clamp Hose HUS-123487X
...
39
Screw TT 3/8-16 x 2-1/4 unc HUS-17490636
...
40
Screw TT 3/8-16 x 4 unc HUS-17490664
...
41
Washer 1-1/2 OD x 15/32 ID x .250 HUS-126197X
...
42
Washer Lock 7/16 HUS-10040700
...
43
Bolt Hex 7/16-20 x 3.75 Gr. 5 HUS-179953
...
45
Nut Keps Hex 1/4-20 HUS-73510400
...
47
Spacer HUS-175288
...
62
Shield Heat Muffler CV-Intek HUS-146629
...
69
Gasket HUS-165391
...
70
Tube Exhaust LH HUS-176069
...
71
Tube Exhaust RH HUS-176070
...
79
Screw Socket Head 5/16-18 x 1 HUS-183906
...
81
Tube Drain Oil HUS-188800
...
82
Valve Oil Drain HUS-188799
...
83
Bolt 5/16-18 Unc x 1-3/4 W/Sems HUS-171877
...
84
Screw Thdrol 3/8-16 x 1-1/2 HUS-17060624
