Husqvarna PDGT26H48A (2003) Tractor

Model: PDGT26H48A (2003)

Back To Assemblies

Save Part Not Listed?
product name

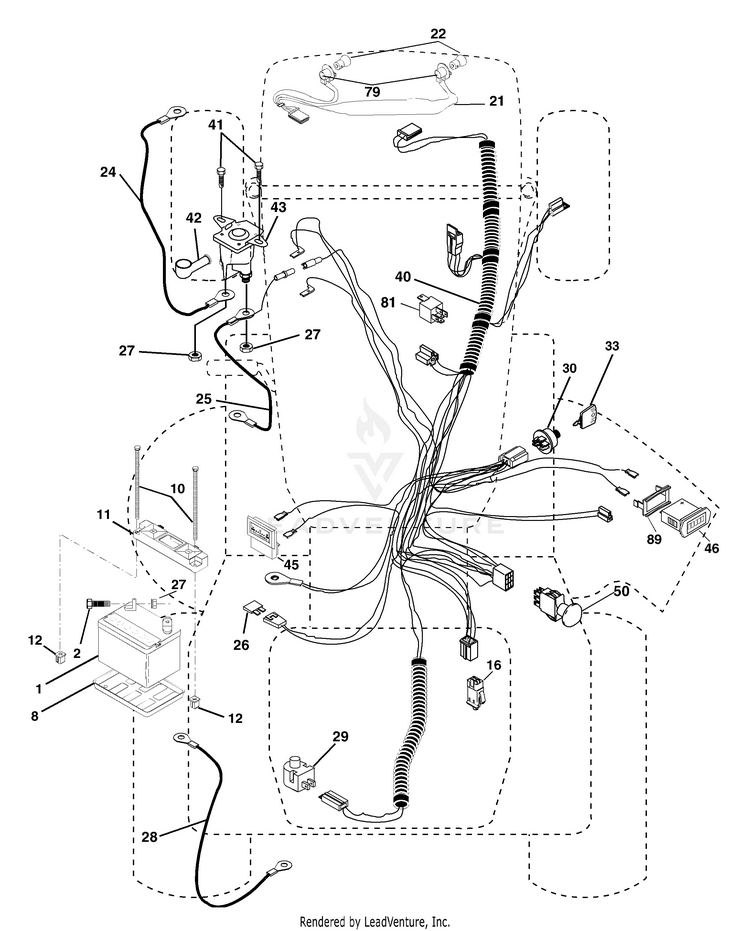

Electrical

...
...
1
Battery HUS-144927
...
2
Bolt Hex Head 1/4-20 x 3/4 HUS-74760412
...
8
Tray, Battery HUS-7603J
...
10
Bolt Btr Frt 1/4-20 X 7.5 zinc HUS-145211
...
11
Holdown Battery Front Mount HUS-150109
...
12
Nut Push Nylon 1/4" HUS-145769
...
16
Switch Interlock Push-In HUS-176138
...
21
Harness Headlight w/Bulbs HUS-175688
...
22
Bulb Light HUS-4152J
...
24
Cable, Battery HUS-185464
...
25
Cable, Battery HUS-146149
...
26
Fuse HUS-108824X
...
27
Nut Keps Hex 1/4-20 Unc HUS-73510400
...
28
Cable, Ground HUS-170697
...
29
Switch, Plunger HUS-160784
...
30
Switch, Ign HUS-175566
...
33
Key HUS-140401
...
40
Harness, Ignition HUS-170238
...
41
Screw 1/4-20 x 1/2 HUS-17720408
...
42
Cover, Terminal Red HUS-131563
...
43
Solenoid HUS-178861
...
45
Ammeter HUS-122822X
...
46
Hourmeter Snap-In HUS-169635
...
50
Switch, PTO HUS-174653
...
79
Socket, Light Bulb HUS-175242
...
81
Relay Asm. HUS-109748X
...
89
Bracket Snap-In HUS-169639
