Husqvarna PDB18H42STA (2003) Tractor

Model: PDB18H42STA (2003)

Back To Assemblies

Save Part Not Listed?
product name

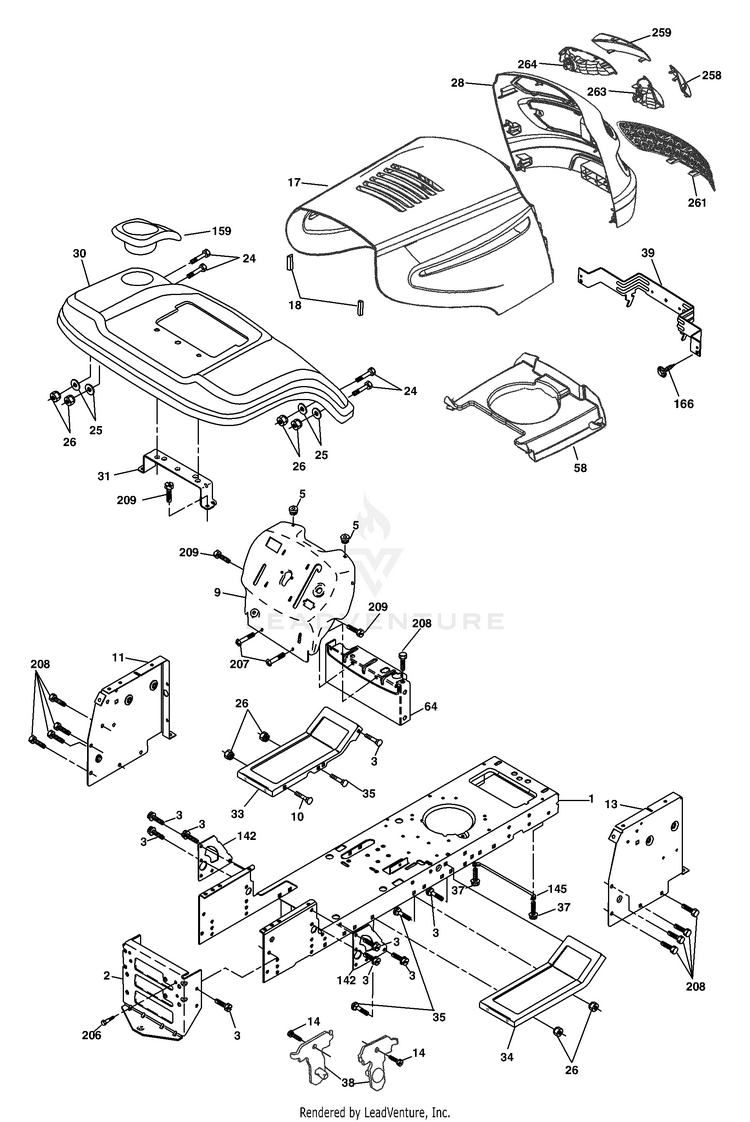

Chassis And Enclosures

...
...
1
Chassis HUS-174619
...
2
Drawbar HUS-176554
...
3
Screw 3/8-16 x 3/4 HUS-17060612
...
5
Bumper Hood/Dash HUS-155272
...
9
Dash HUS-168337X012
...
10
Bolt Rd Hd Sqnk. 3/8-16 Unc x 1 HUS-72140608
...
11
Panel Asm. Dash Lh HUS-174996
...
12
Clip Tinnerman Grile P/L HUS-145660
...
13
Panel Dash Rh HUS-175255
...
14
Screw Thdrol 3/8-16 x 1/2 HUS-17490608
...
17
Hood HUS-183393X428
...
18
Bumper Hood HUS-126938X
...
24
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-74780616
...
25
Washer 13/32 x 13/16 x 12 Ga. HUS-19131312
...
26
Nut Lock Hex w/Insert 3/8-16 Unc HUS-73800600
...
28
Grill/Lens Asm HUS-1838 28
...
30
Fender Asm HUS-169470X428
...
31
Bracket Fender HUS-136619
...
33
Footrest LH HUS-179716X428
...
34
Footrest RH HUS-179717X428
...
35
Bolt Rd Hd Sht. Sqnk. 3/8-16 x 3/4 HUS-72110606
...
37
Screw Thdrol 5/16-18 x 1/2 Tyt HUS-17490508
...
38
Bracket Asm. Pivot Mower Rear HUS-175710
...
39
Bracket Pivot HUS-174714
...
58
Air Duct HUS-184322
...
64
Dash Lower HUS-154798
...
142
Plate Reinforcement HUS-175702
...
145
Rod Pivot Chassis/Hood HUS-156524
...
159
Cupholder HUS-169473X428
...
166
Screw #13-16 x 3/4 HUS-171875
...
206
Bolt shoulder 5/16-18 HUS-170165
...
207
Screw Thdrol 5/16-18 x 1/2 HUS-17670508
...
208
Screw Thdrol 3/8-16 x 1/2 HUS-17670608
...
209
Screw 3/8-16 x 3/4 HUS-17000612
...
258
Lens Grille RH HUS-183835X599
...
259
Lens Grille LH HUS-183834X599
...
261
Insert Grille HUS-183829X428
...
263
Bezel Grille LH HUS-183832
...
264
Bezel Grille RH HUS-183833
...
xx
Plug Btn Blk HUS-5479J
