Husqvarna PD22H42STC (2004) Tractor

Model: PD22H42STC (2004)

Back To Assemblies

Save Part Not Listed?
product name

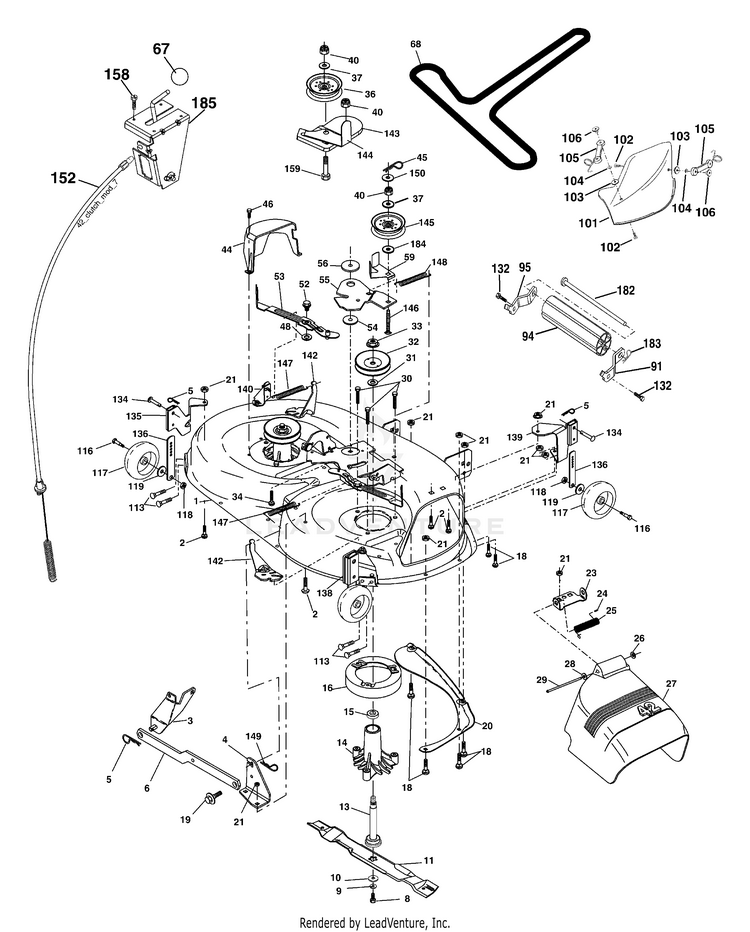

Mower Deck

...
...
1
Mower Deck Assembly, 42" HUS-182032X421
...
2
Bolt HUS-72140506
...
3
Bracket Asm Fr. Sway Bar 3/42 HUS-138017
...
4
Bracket Asm Deck 42" Sway Bar HUS-165460
...
5
Retainer Spring HUS-4939M
...
6
Bar Sway Deck HUS-178024
...
8
Bolt 3/8-24 x 1.25 Gr. 8 patched HUS-850857
...
9
Washer, Lock HUS-10030600
...
10
Washer, Hardened HUS-140296
...
11
Blade, Mulching 42" Std (for mulching mowers only) HUS-134149
...
11
Blade Mulching 42" Premium (For better wear when mulching) HUS-139775
...
11
Blade Mower 42" Hi-Lift (for bagging and discharging) HUS-138971
...
13
Shaft Assembly, Mandrel, Vented HUS-137645
...
14
Housing, Mandrel, Vented HUS-128774
...
15
Bearing, Ball, Mandrel HUS-110485X
...
16
Stripper, Mandrel Deck HUS-174493
...
18
Bolt, Carriage 5/16-18 x 5/8 HUS-72140505
...
19
Bolt, Shoulder HUS-132827
...
20
Baffle, Vortex HUS-159770
...
21
Nut HUS-73680500
...
23
Bracket, Deflector Mower 42" HUS-177563
...
24
Cap, Sleeve 80 x 112 Blk Mower HUS-105304X
...
25
Spring, Torsion, Deflector 2 52 HUS-123713X
...
26
Nut, Push Phos & Oil HUS-110452X
...
27
Shield, Deflector 42" Blk HUS-130968X428
...
28
Washer 11/32 x 5/8 x 16 Ga. HUS-19111016
...
29
Rod, Hinge 42" 6 75 W/G HUS-131491
...
30
Screw Thdrol HUS-173984
...
31
Washer, Spacer Mower Vented HUS-187690
...
32
Pulley, Mandrel HUS-173436
...
33
Nut, Toplock HUS-178342
...
34
Bolt Carr SH 3/8-16 x 1-1/2 Gr.5 HUS-72110612
...
36
Pulley, Idler, Flat HUS-173438
...
40
Nut Lock 3/8-16 HUS-73900600
...
44
Guard, Mandrel, LH HUS-140088
...
45
Retainer HUS-4497H
...
46
Screw, Thdrol 1/4-20 x 5/8 T HUS-137729
...
48
Washer, Hardened HUS-133944
...
52
Bolt, Shoulder 5/16-18 unc HUS-139888
...
53
Arm Assembly, Pad, Brake HUS-184907
...
54
Washer, Hardened HUS-178515
...
55
Arm, Idler HUS-155046
...
56
Spacer, Retainer HUS-122052X
...
59
Guard TUV Idler HUS-173442
...
67
Knob Round HUS-171598
...
68
V-Belt, 42" Mower HUS-144959
...
91
Bracket Asm Noseroller LH HUS-180532
...
92
Nut Lock Hex w/Ins 3/8-16 unc HUS-73800600
...
94
Roller Nose 38 & 42 HUS-132264
...
95
Bracket Asm Noseroller RH HUS-180533
...
101
Mulcher Cover HUS-136420
...
102
Screw, Pan Hd Phillip 10-24 x 5/8 HUS-71081010
...
103
Washer, Flat HUS-19061216
...
104
Washer, Lock HUS-10071000
...
105
Latch Assembly HUS-160793
...
106
Nut, Weld HUS-2029J
...
113
Screw 5/16-18 x 3/4 HUS-17060512
...
116
Bolt, Shoulder HUS-184219
...
117
Wheel, Gauge HUS-133957
...
118
Nut Centerlock 3/8-16 HUS-73930600
...
119
Washer 3/8 x 7/8 x 14 Ga. HUS-19121414
...
129
Washer 13/32 x 13/16 x 12 Ga. HUS-19131312
...
130
Bolt Fin HEx 3/8-16 unc x 1 Gr. 5 HUS-74780616
...
131
Bolt RDHD SQNK 3/8-16 unc x 1 HUS-72140608
...
132
Screw 3/8-16 x .75 HUS-17000612
...
134
Pin Head Rivet HUS-156941
...
135
Bracket Asm. Whl Ga. R LH HUS-159765X421
...
136
Bar Adjusting Gauge Wheel HUS-155986
...
138
Bracket Asm Whl Ga. R RH HUS-159763X421
...
139
Bracket Asm. Whl Ga. F RH HUS-159767X421
...
140
Bracket Asm Whl Ga. F LH HUS-159768X421
...
142
Arm Spring Brake Mower HUS-165890
...
143
Bracket Arm Idler 42" HUS-157109
...
144
Keeper Belt 42" Clutch Cable HUS-173441
...
145
Pulley Idler Flat HUS-173437
...
146
Bolt Carriage Idler HUS-173443
...
147
Spring Extension HUS-131335
...
148
Spring Return Idler HUS-169022
...
149
Retainer Spring Yellow HUS-165898
...
150
Washer 9/32 x 3/4 x 10 Ga. HUS-19091210
...
152
Clutch Cable 42" HUS-169676
...
158
Screw Hex Thd Cut 1/4-20 x 1/2 HUS-17720408
...
159
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 HUS-72140614
...
182
Rod Roller Nose HUS-179126
...
183
Retainer Spring HUS-163552
...
184
Washer 13/32 x 7/8 x 10 Ga. HUS-19131410
...
185
Head Asm Cable Clutch HUS-188234
...
xx
Mandrel Assembly (Includes Housing Shaft and Shaft Hardware Only - Pulley Not Included) HUS-130794
...
xx
Replacement Mower, Complete (Std. deck Order separately mulcher cover, nose roller and gauge wheel components Key Nos. 101-106, 91, 94, 95, 132, 182, 183 and 116-119) HUS-184563
