Husqvarna PD22H42STA (2004) Tractor

Model: PD22H42STA (2004)

Back To Assemblies

Save Part Not Listed?
product name

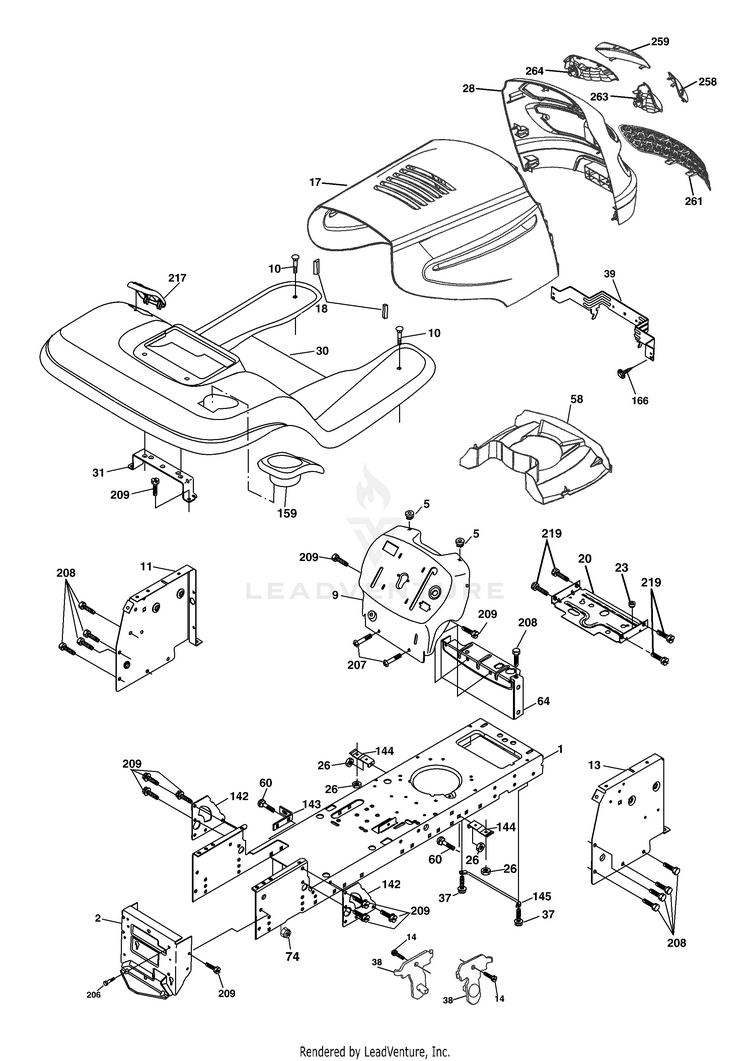

Chassis

...
...
1
Chassis HUS-174619
...
2
Drawbar HUS-176554
...
5
Bumper Hood/Dash HUS-155272
...
9
Dash P/L HUS-168337X012
...
10
Bolt Carriage 3/8-16 x 1 HUS-72140608
...
11
Panel Dash Lh HUS-174996
...
13
Panel Dash Rh HUS-175255
...
14
Screw Thdrol 3/8-16 x 1/2 HUS-17490608
...
17
Hood HUS-183393X428
...
18
Bumper Hood HUS-126938X
...
20
Plate Battery HUS-180679
...
23
Bushing HUS-124028X
...
26
Nut Lock Hex W/Ins 3/8-16 unc HUS-73800600
...
28
Grille/Lens Asm HUS-1838 28
...
30
Fender Footrest STLT Pnt HUS-179131X428
...
31
Bracket Fender HUS-139976
...
37
Screw Thdrol 6/16-18 x 1/2 TYT HUS-17490508
...
38
Bracket Asm Pivot Mower Rear HUS-175710
...
39
Bracket Pivot HUS-174714
...
58
Duct Air HUS-189350
...
60
Bolt RDHD Sqnk 3/8-16 unc x 3/4 HUS-72140606
...
64
Dash Lower STLT HUS-154798
...
74
Nut Crownlock 3/8-16 unc HUS-73680600
...
90
Nut Self Thd Wsh - HD 1/4 Zinc HUS-124346X
...
142
Plate Reinforcement STLT HUS-175702
...
143
Bracket Swaybar Chassis HUS-186689
...
144
Bracket Footrest Step-thru HUS-175582
...
145
Rod Pivot Chassis/Hood HUS-156524
...
159
Cupholder HUS-179950X428
...
166
Screw Hwhd Hi-Lo #13-16 x 3/4 HUS-171875
...
206
Bolt Shoulder 5/16-18 HUS-170165
...
207
Screw Thdrol 5/16-18 x 1/2 HUS-17670508
...
208
Screw Thdrol 3/8-16 x 1/2 HUS-17670608
...
209
Screw Hexwsh Thdr 3/8-16 x 3/4 HUS-17000612
...
217
Console Fuel Window HUS-179132X428
...
219
Screw 5/16-18 x 3/4 HUS-17000512
...
258
Lens Grille Pro RH HUS-183835X599
...
259
Lens Grille Pro LH HUS-183834X599
...
261
Insert Grille HUS-183829Z428
...
263
Bezel Grille LH HUS-183832
...
264
Bezel Grille RH HUS-183833
