Husqvarna PD22H42STA (2004) Tractor

Model: PD22H42STA (2004)

Back To Assemblies

Save Part Not Listed?
product name

Engine

...
...
1
Control, Throttle HUS-170771
...
2
Screw Hex Thd Cut 1/4-20 x 1/2 HUS-17720408
...
4
Muffler, Asm. Twin Lo-Tone HUS-149723
...
5
Pipe Exhaust Intek 20 RH HUS-160589
...
6
Pipe Exhaust Intek 20 LH HUS-159955
...
8
Bolt 5/16-18 unc x 3/4 w/Sems HUS-171877
...
10
Shield Browing B&S Intek II HUS-162797
...
13
Muffler Gasket HUS-165391
...
14
Tube Oil Drain HUS-148456
...
17
Screw 3/8-16 x 1-1/2 HUS-17060624
...
23
Shield, Browning/Debris Guard HUS-169837
...
25
Control Choke HUS-145996
...
26
Nut Keps 3/8-24 unf HUS-73920600
...
29
Arrester, Spark HUS-137180
...
31
Tank, Fuel HUS-179022
...
32
Cap Gauge, Fuel HUS-179124X428
...
33
Clamp, Hose Blk HUS-123487X
...
37
Line, Fuel HUS-8543R
...
38
Plug Drain Oil Easy HUS-181654
...
41
Stem Tank Fuel HUS-139277
...
45
Screw Hex Wsh Thdrol 3/8-16 x 3/4 HUS-17000612
...
72
Screw Socket Head 5/16-18 x 1 HUS-183906
...
81
Nut Keps Hex 1/4-20 unc HUS-73510400
...
112
Bushing HUS-3645J

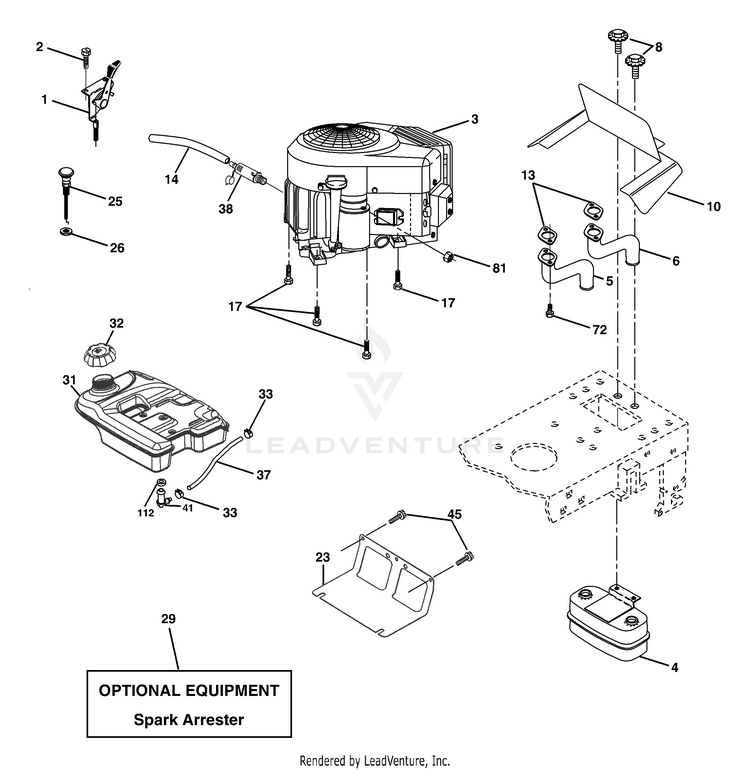

Schematic Image Zoomed
