product name

Husqvarna PD185H42STC (2004) Tractor

Model: PD185H42STC (2004)

Back To Assemblies

Save Part Not Listed?
product name

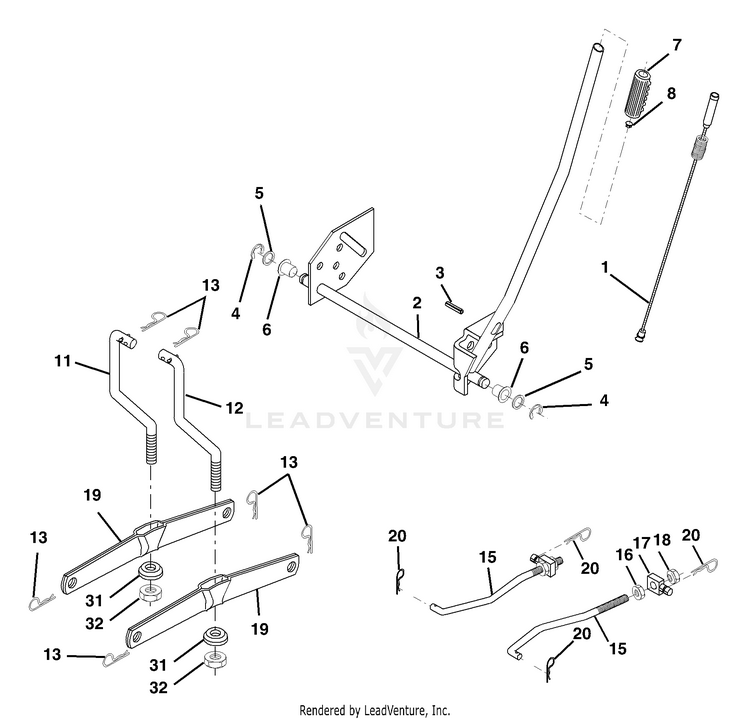

Mower Lift

...
...
1
Wire Asm Inner/Sprg W/plunger HUS-159461
...
2
Shaft Asm Lift RH w/Inf HUS-159476
...
3
Pin Groove 5/16 Dia x 1.875 HUS-188822
...
4
E Ring #5133-62 HUS-12000002
...
5
Washer 21/32 x 1 x 21 Ga. HUS-19211621
...
6
Bearing Nylon Blk 629 Id HUS-120183X
...
7
Grip Handle HUS-125631X
...
8
Button Plunger HUS-124526X
...
11
Link Lift LH Fixed Length HUS-139865
...
12
Link Lift RH Fixed Length HUS-139866
...
13
Retainer Spring HUS-4939M
...
15
Link Front HUS-173288
...
16
Nut Jam Hex 1/2-13 unc HUS-73350800
...
17
Trunnion HUS-175689
...
18
Nut Lock W/Wsh 1/2-13 unc HUS-73800800
...
19
Arm Suspension Rear HUS-139868
...
20
Retainer Spring HUS-163552
...
31
Bearing Pvt Lift HUS-169865
...
32
Nut Crownlock 3/8 - 24 HUS-73540600
