Husqvarna PD185H42STC (2004) Tractor

Model: PD185H42STC (2004)

Back To Assemblies

Save Part Not Listed?
product name

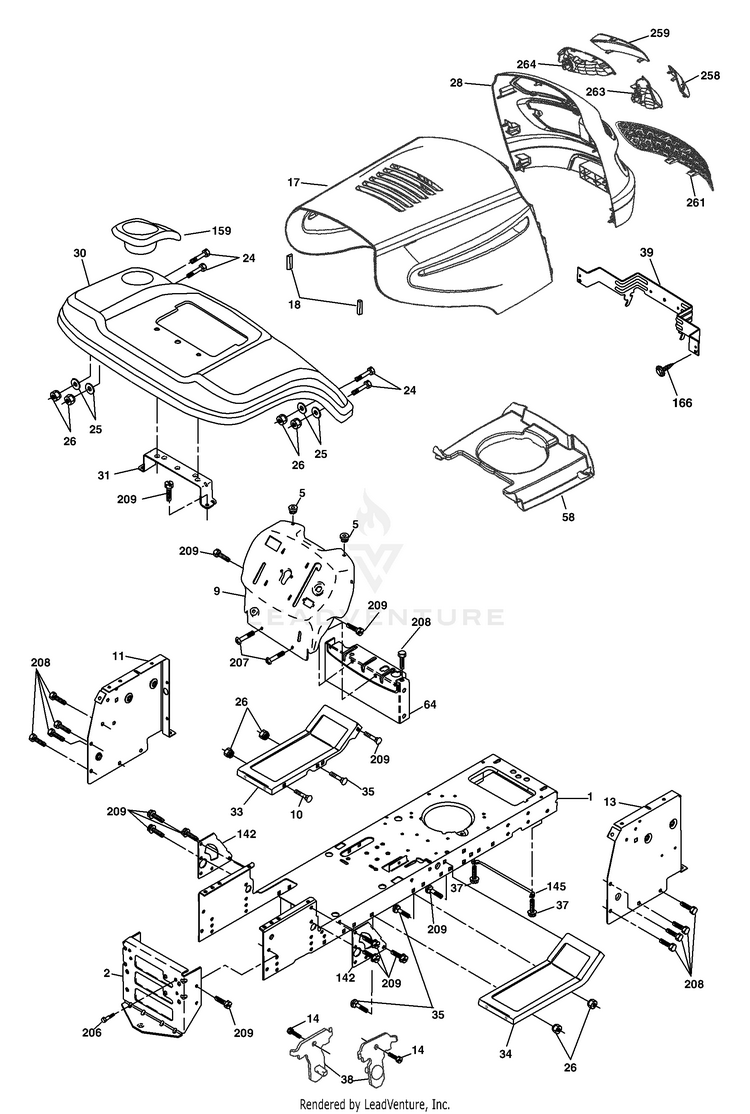

Chassis

...
...
1
Chassis HUS-174619
...
2
Drawbar HUS-176554
...
5
Bumper Hood/Dash HUS-155272
...
9
Dash P/L HUS-187846X012
...
10
Bolt Carriage 3/8-16 x 1 HUS-72140608
...
11
Panel Dash Lh HUS-174996
...
13
Panel Dash Rh HUS-179174X010
...
14
Screw Thdrol 3/8-16 x 1/2 HUS-17490608
...
17
Hood HUS-183393X428
...
18
Bumper Hood HUS-184921
...
24
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 HUS-74780616
...
26
Nut Lock Hex W/Ins 3/8-16 unc HUS-73800600
...
28
Grille/Lens Asm (Includes Nos. 258, 259, 261, 263, 264) HUS-1838 28
...
30
Fender HUS-169470X428
...
31
Bracket Fender HUS-136619
...
33
Footrest LH HUS-179716X428
...
34
Footrest RH HUS-179717X428
...
35
Bolt RDHD SHT SQNK 3/8-16 x 3/4 HUS-72110606
...
37
Screw Thdrol 6/16-18 x 1/2 TYT HUS-17490508
...
38
Bracket Asm Pivot Mower Rear HUS-175710
...
39
Bracket Pivot HUS-174714
...
58
Duct Air HUS-184322
...
64
Dash Lower STLT HUS-154798
...
142
Plate Reinforcement STLT HUS-175702
...
145
Rod Pivot Chassis/Hood HUS-156524
...
159
Cupholder HUS-169473X428
...
166
Screw 10 x 3/4 Single Lead-Hex HUS-191611
...
206
Bolt Shoulder 5/16-18 HUS-170165
...
208
Screw Thdrol 3/8-16 x 1/2 HUS-17670608
...
209
Screw Hexwsh Thdr 3/8-16 x 3/4 HUS-17000612
...
258
Lens Grille Pro RH HUS-183835X599
...
259
Lens Grille Pro LH HUS-183834X599
...
261
Insert Grille HUS-183829Z428
...
263
Bezel Grille LH HUS-183832
...
264
Bezel Grille RH HUS-183833
...
xx
Plug BTN Bl K HUS-5479J
...
xx
Plug Dome Plastic HUS-187801
