Husqvarna PC1844A (1991) Tractor

Model: PC1844A (1991)

Back To Assemblies

Save Part Not Listed?
product name

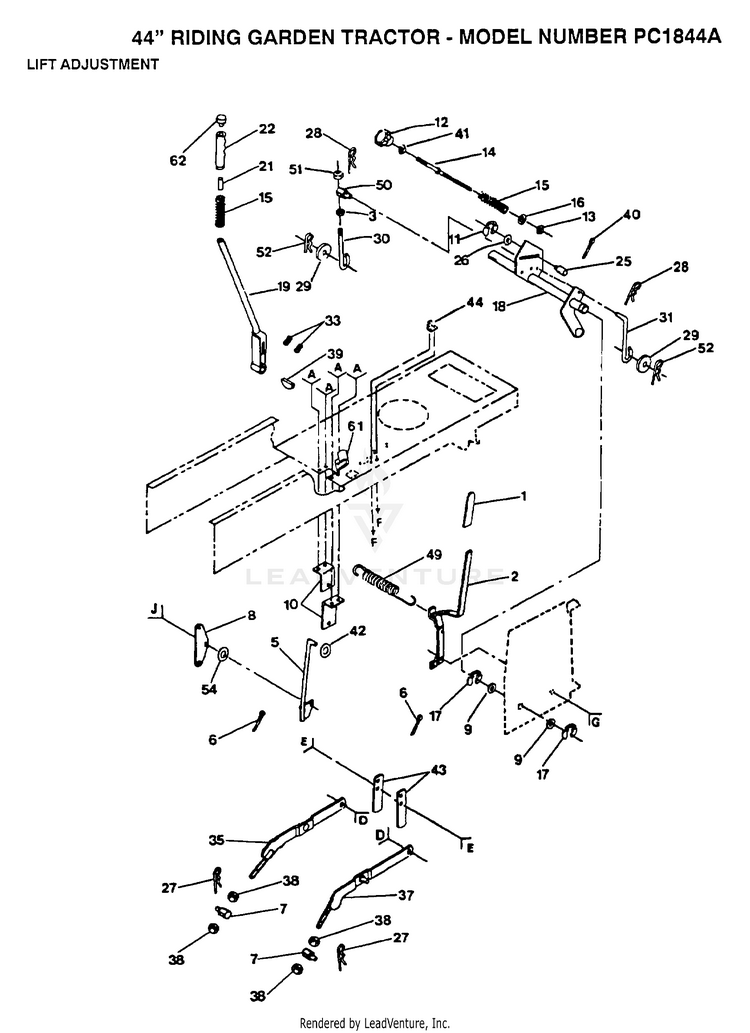

LIFT ADJUSTMENT

...
...
1
SUB= 532131861 HUS-4617J
...
2
HANDLE YT HUS-106983X
...
3
NUT LOCK YTH HUS-73710700
...
4
SUB= 74780612 HUS-74760612
...
5
ROD ASSEM YT HUS-108451X
...
6
COTTER PIN HUS-76020412
...
7
SUB= 130171 HUS-106308X
...
8
"T, BELLCRANK" HUS-109728X
...
9
WASHER HUS-19292016
...
10
"BRKT,BELLCRAN T" HUS-106444X
...
11
KLIP RING HUS-12000037
...
12
SUB= 138057 HUS-100734K
...
13
NUT T HUS-110807X
...
14
ROD LIFT LT HUS-110729X
...
15
SPRING T HUS-2876H
...
16
WASHER HUS-19131016
...
17
E-RING HUS-12000022
...
18
SHAFT T HUS-120174X
...
19
LEVER LIFT HUS-121718X
...
20
SUB= 73690600 HUS-73680600
...
21
SUB= 125925X HUS-122364X
...
22
GRIP HUS-109413X
...
23
BOLT LT HUS-74760412
...
25
TRUNION LT HUS-110810X
...
26
WASHER HUS-19151216
...
27
SPRING H HUS-9135R
...
28
SUB= 85902 HUS-4939M
...
29
WASHER T HUS-19171516
...
30
PIVOT PIN T HUS-110448X
...
31
LIFT LINK LT HUS-110029X
...
33
SCREW HUS-23180606
...
35
LH SUSP ARM ASM HUS-121599X
...
36
"BOLT, SHOULDER LT" HUS-105848X
...
37
RH SUSP ARM ASM HUS-121598X
...
38
NUT HUS-73220800
...
39
KEY STD HUS-8330H
...
40
SUB= 3145 HUS-76020308
...
41
NUT HUS-73350600
...
42
WASHER HUS-19131312
...
43
UPSTOP HUS-121252X
...
44
BRACKET LT HUS-108236X
...
45
SCREW HUS-17021008
...
46
SUB= 74930624 HUS-74760624
...
47
WASHER LT HUS-19121612
...
48
BUSHING YT HUS-108056X
...
49
"SPRING.EXT.8.5""" HUS-102727X
...
50
SUB= 132793 HUS-110447X
...
51
NUT HUS-73360700
...
52
SPRING.RETAINER HUS-4921H
...
53
SUB= 72110608 HUS-72140608
...
54
WASHER HUS-19131410
...
55
WASHER T HUS-110739X
...
56
NUT SPECIAL T HUS-73980600
...
58
SUB= 73690400 HUS-73680400
...
59
WASHER HUS-19091616
...
61
SUB= 5320R HUS-5320J
...
62
SUB= 125925X HUS-124385X
