Husqvarna PC1844A (1991) Tractor

Model: PC1844A (1991)

Back To Assemblies

Save Part Not Listed?
product name

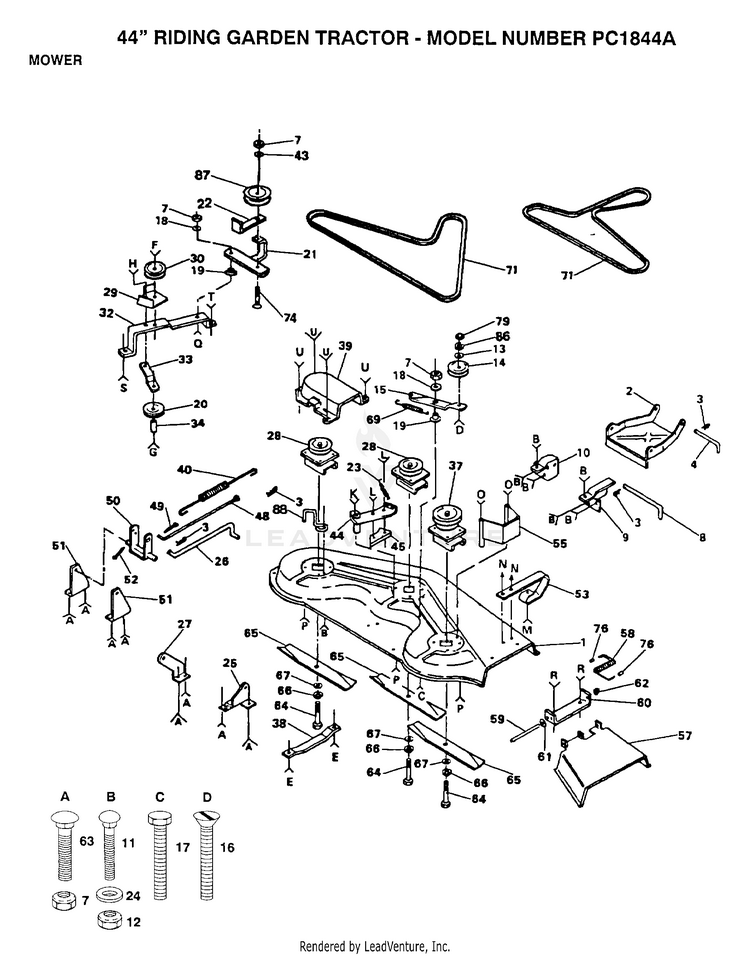

MOWER

...
...
1
SUB= 144729 HUS-121423X
...
2
LINK.PARALLEL HUS-105662X
...
3
SPRING.RETAINER HUS-4921H
...
4
"ROD, FRT. PARAL T" HUS-105744X
...
5
LINK STOP HUS-105872X
...
6
SUB= 74780612 HUS-74760612
...
7
SUB= 73690600 HUS-73680600
...
8
HINGE PIN T HUS-109835X
...
9
BRACKET RH YT HUS-106512X
...
10
BRACKET LH YT HUS-106511X
...
11
BOLT HUS-72140506
...
12
SUB= 73690500 HUS-73680500
...
13
WASHER HUS-19131614
...
14
IDLER.FLAT.GTV HUS-102932X
...
15
ARM-IDLER YT HUS-106526X
...
16
SCREW YT HUS-74110632
...
17
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
18
"WASHER, WEAR LT" HUS-106513X
...
19
SPACER RETAINER HUS-106902X
...
20
IDLER-FLAT T HUS-102403X
...
21
ARM ASSY HUS-121424X
...
22
GUIDE BELT HUS-121426X
...
23
SPRING-EXT YT HUS-106530X
...
24
WASHER M HUS-19111216
...
25
BRKT SUSP REAR RH HUS-123807X
...
26
ROD LT HUS-108235X
...
27
BRKT SUSP REAR LH HUS-123808X
...
28
SUB= 136819 HUS-121622X
...
29
GUIDE-BELT YT HUS-106529X
...
30
IDLER-INSIDE T HUS-677A451
...
32
"SUPPORT YT, BAR" HUS-106523X
...
33
BRACE-IDLER YT HUS-106522X
...
34
SPACER HUS-121236X
...
35
BOLT - HEX 3/8 - 16 X 3 HUS-74760648
...
36
SUB= 72110608 HUS-72140608
...
37
SUB= 121705X HUS-121704X
...
38
RUNNER-LH M HUS-7631J
...
39
GUARD YT HUS-106214X
...
40
SPRING EXT HUS-121427X
...
41
BOLT SHOULDER HUS-121827X
...
42
LOCKNUT HUS-73930600
...
43
WASHER HUS-19131316
...
44
BRAKE ARM LT HUS-106606X
...
45
BRAKE-BLOCK YTV HUS-102951X
...
46
WASHER HUS-19111116
...
47
BOLT HUS-74760520
...
48
ROD BRAKE YT HUS-108394X
...
49
SUB= 3145 HUS-76020312
...
50
ROCKSHAFT T HUS-110384X
...
51
SUPPORT SHAFT YT HUS-108393X
...
52
SUB= 76020624 HUS-76020616
...
53
SUB= 136321 HUS-8418J
...
55
ASSY RH BELT GRD HUS-102924X
...
56
BOLT HUS-74760580
...
57
DEFLECTOR SHIELD HUS-109785X
...
58
SUB= 123713X HUS-106734X
...
59
ROD-HINGE T HUS-106735X
...
60
SUB= 137607 HUS-109743X
...
61
WASHER HUS-19111016
...
62
NUT PUSH M HUS-110452X
...
63
BOLT HUS-72140606
...
64
BOLT.3/8-24X1-1/2 HUS-74610624
...
65
SUB= 25034 HUS-106635X
...
66
SUB= 10040600 HUS-10030600
...
67
WASHER HUS-19132012
...
68
SCREW HUS-17490612
...
69
SPRING T HUS-7644J
...
70
BOLT HUS-72140612
...
71
BELT-V.79.1.MWR HUS-106085X
...
74
BOLT HUS-72140616
...
76
CAP-SLEEVE LT HUS-105304X
...
77
BOLT HUS-74760616
...
79
NUT.HEX.3/8-16UNC HUS-73220600
...
80
NUT.HEX.5/16-18 HUS-73220500
...
81
LOCKWASHER HUS-10040500
...
83
BOLT HUS-72110505
...
84
SUB= 68478 HUS-1685H
...
85
SUB= 72270506 HUS-72110506
...
86
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
87
PULLEY IDLER HUS-121316X
...
88
BELT RETIANER HUS-121352X
...
89
WASHER HUS-19131410
...
xx
MOWER ASS'Y HUS-122219X
...
xx
DECAL-INST YT HUS-105185X
...
xx
DECAL YT HUS-106223X
...
xx
DECAL WARNING HUS-121349X
