Husqvarna PBV200LE Type 2 (2006-12) Blower

Model: PBV200LE Type 2 (2006-12)

Back To Assemblies

Save Part Not Listed?
product name

Housing - Type 2

...
...
1
Air Dam (kit) HUS-530071459
...
2
Gasket-Adapter (kit) HUS-530071458
...
3
Carburetor Adaptor HUS-530035561
...
4
Screw HUS-530016441
...
5
Gasket-Carburetor (kit) HUS-530071458
...
6
Kit-Carb Ass’y. Walbro-(WT-606) HUS-530071775
...
6
Kit-Carb Ass’y. Walbro-(WT-784) HUS-530071775
...
7
Air Box HUS-530056629
...
8
Screw-Carb. HUS-530015849
...
9
Filter-Air HUS-530049383
...
10
Cover-Air Filter HUS-530056581
...
11
Screw HUS-530016349
...
12
Guard-Muffler HUS-545085001
...
13
Handle HUS-530095469
...
14
Foam - 71.12mm (kit) HUS-530071459
...
15
Screw HUS-530015886
...
16
Isolator HUS-530049323
...
17
Nut HUS-530015197
...
18
Knob-Tube Clamp HUS-530016322
...
19
Reflector-Heat (kit) HUS-530071458
...
20
Assy-Shroud RH (incl. 21) HUS-545018204
...
21
Spring-Cover Latch HUS-530402044
...
22
Guide-Starter Rope HUS-530049617
...
23
Shroud - LH HUS-545018103
...
24
Isolator-Crankcase HUS-530036792
...
25
Assy-Fuel Tank HUS-545058007
...
26
Gasket-Fuel Tank HUS-530049527
...
27
Assy-Fuel Cap HUS-530057973
...
28
Fitting-Fuel Line HUS-530023877
...
29
Grommet-Shroud HUS-530049656
...
30
Kit-Line Carb/Purge HUS-530069247
...
31
Kit-Line Tank/Purge HUS-530069216
...
32
Assy-Fuel Pick-up HUS-530095646
...
33
Grommet-Fuel line (kit) HUS-530071459
...
34
Tube-Blower HUS-530095593
...
34
Operator Manual Not Shown HUS-545117516
...
34
Warning Decal Not Shown HUS-530057414
...
34
Decal-Inst./Warning Not Shown HUS-545003023

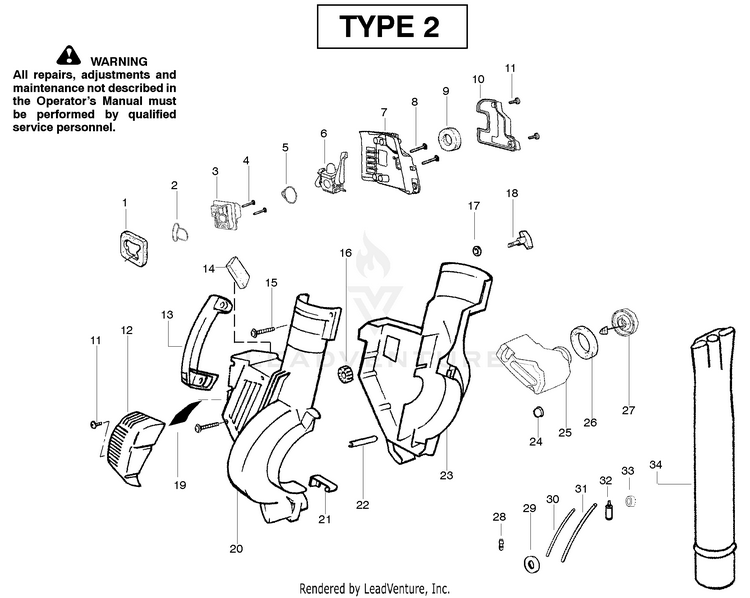

Schematic Image Zoomed
