Husqvarna PBGTGE/96042003100 (2006) Tractor

Model: PBGTGE/96042003100 (2006)

Back To Assemblies

Save Part Not Listed?
product name

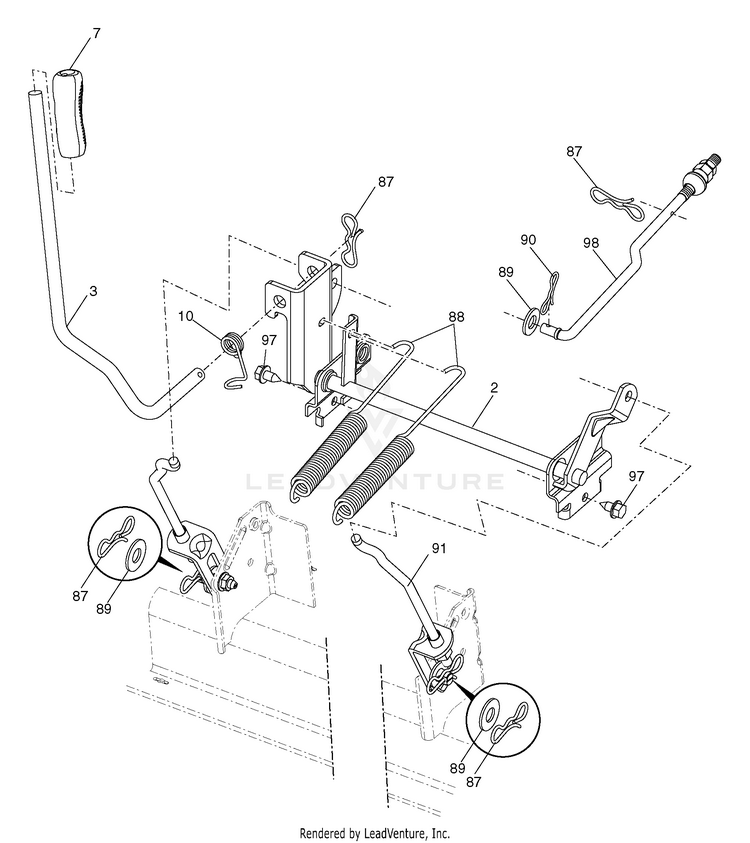

Mower Lift

...
...
2
Shaft Asm., Lift HUS-195223
...
3
Lever Asm., Lift Rh HUS-195230
...
7
Grip, Lever HUS-196492
...
10
Spring Torsion HUS-196314
...
87
Pin Cotter 7/16 Bow Tie Lock HUS-194209
...
88
Spring Lift Assist HUS-195304
...
89
Washer Clear Zinc HUS-19191912
...
90
Pin Cotter 5/16 Bow Tie Lock HUS-194208
...
91
Link Lift Susp Mower Rear HUS-403407
...
97
Screw 3/8-16 x .75 Smgml Tap/R.Z HUS-17060612
...
98
Link Lift Susp. Front Mower HUS-195264
Schematic Image Zoomed
