Husqvarna PBGTGE/96042003100 (2006) Tractor

Model: PBGTGE/96042003100 (2006)

Back To Assemblies

Save Part Not Listed?
product name

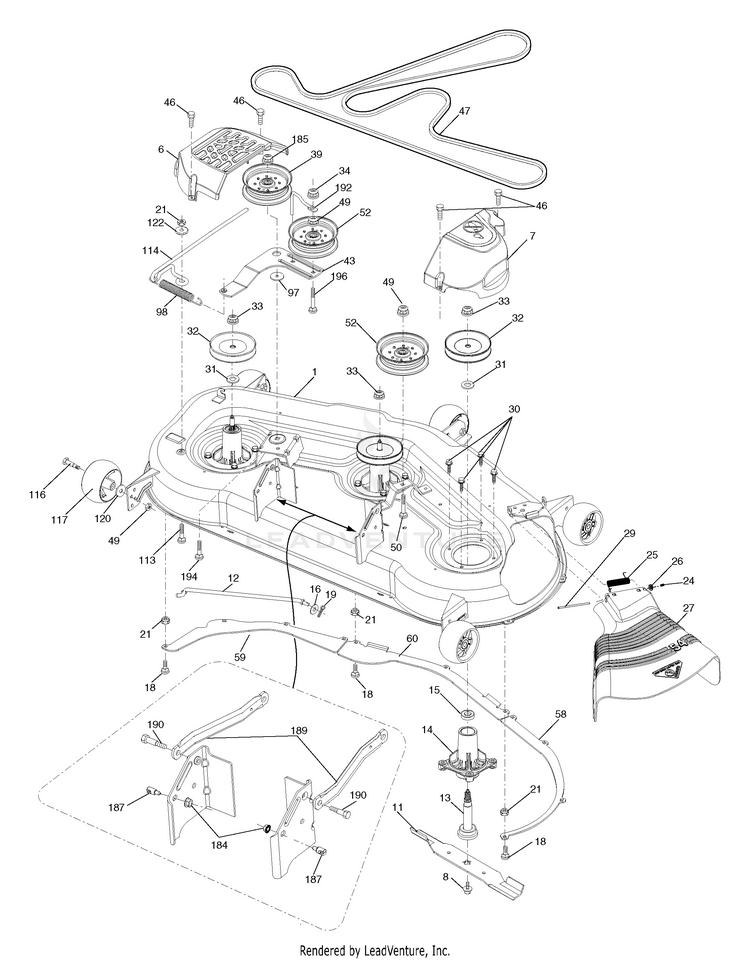

Mower Deck

...
...
1
Deck Weldment Mower HUS-195632X421
...
6
Cover Mandrel LH HUS-196066
...
7
Cover Mandrel RH HUS-197181
...
8
Bolt 7/16 Asm. Blade HUS-174365
...
11
Blade Bagging HUS-187256
...
11
Blade High Lift HUS-187254
...
11
Blade Mulching HUS-187255
...
12
Rod Anti-Sway HUS-400337
...
13
Shaft Asm. w/Lower Bearing HUS-187291
...
14
Housing, Mandrel HUS-187281
...
15
Bearing, Ball, Mandrel HUS-110485X
...
16
Washer 13/32 x 13/16 x 12 Ga. HUS-19131312
...
18
Bolt RDHD SQNK 5/16-18 x 4/8 HUS-72140505
...
19
Pin Cotter 5/16 Bow Tie Lock HUS-194208
...
21
Nut, Crownlock 5/16-18 unc HUS-73680500
...
24
Cap Sleeve HUS-105304X
...
25
Spring, Torsion HUS-178102
...
26
Nut, Push HUS-110452X
...
27
Deflector Shield HUS-187257X428
...
29
Rod, Hinge HUS-131491
...
30
Screw, Thdroll Washer Head HUS-173984
...
31
Washer, Spacer Mower Vented HUS-187690
...
32
Pulley, Mandrel HUS-173436
...
33
Nut, Flg. Top Lock HUS-400234
...
34
Nut Crownlock 3/8-16 unc HUS-73680600
...
39
Pulley, Idler, Stationary HUS-196104
...
43
Arm, Idler HUS-196065
...
46
Screw, Thdroll. 1/4-20 x 5/8 HUS-137729
...
47
V-Belt, Mower HUS-196103
...
49
Nut, Lock Flg. 3/8-16 unc HUS-73900600
...
50
Bolt Rdhd Sqnk 3/8-16 unc x 2 HUS-72110616
...
52
Pulley Idler Clutching HUS-196106
...
58
Baffle Right HUS-187342
...
59
Baffle Left HUS-187344
...
60
Baffle Center HUS-187607
...
97
Washer Hardened HUS-178515
...
98
Spring Drive HUS-196105
...
113
Bolt Rdhd Sqnk 5/16-18 x 3/4 HUS-72110508
...
114
Rod Tension Relief HUS-187556
...
116
Bolt, Shoulder HUS-193406
...
117
Gauge Wheel HUS-174873
...
120
Washer 13/32 x 1-1/4 x 12 Ga. HUS-19132012
...
122
Bushing Tension Relief HUS-187557
...
184
Nut Lock Hex Flange 5/16-18 HUS-73900500
...
185
Nut Lock Flange 7/16-14 Gr. 5 HUS-73900700
...
187
Stud Fastener w/"D" Anti-Rotation HUS-195161
...
189
Arm Susp. Mower Rear HUS-195185
...
190
Bolt Shoulder HUS-196539
...
192
Keeper Belt Idler HUS-198468
...
194
Bolt Carr Sqnk 3/8-16 x 2-1/4 HUS-72140716
...
196
Bolt RDHD SQNK 23/8-16 x 2-1/2 Gr.5 HUS-72140620
...
xx
Mandrel Asm. Service HUS-187292
...
xx
Replacement Mower, Complete HUS-197701
