Husqvarna PBGT22H54 (2006-03) Tractor/Ride Mower

Model: PBGT22H54 (2006-03)

Back To Assemblies

Save Part Not Listed?
product name

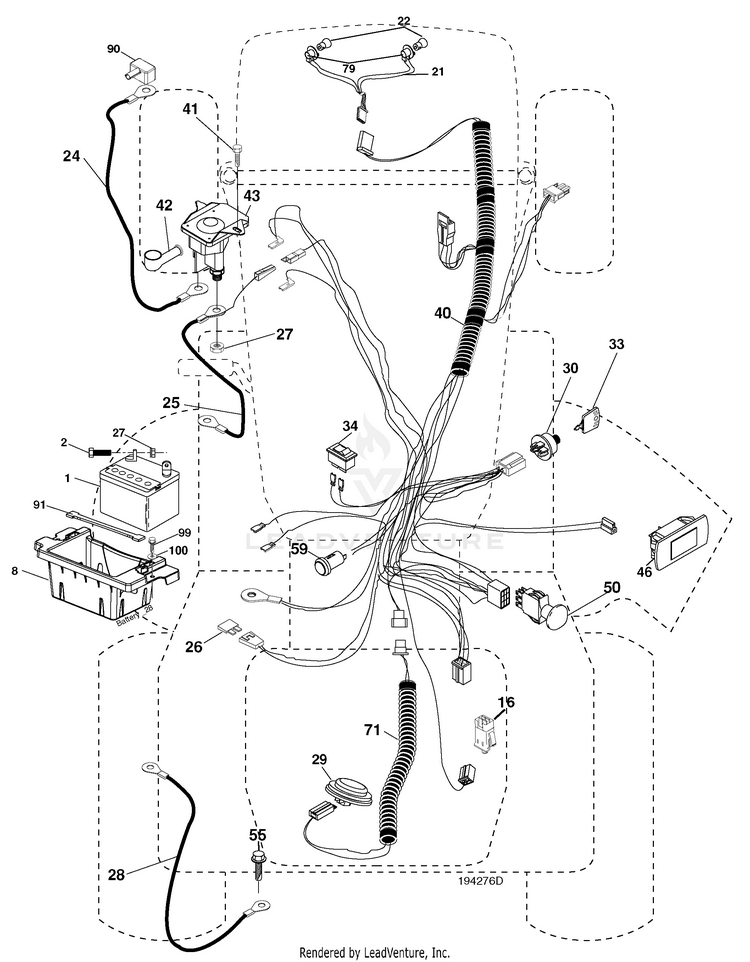

Electrical

...
...
1
Battery HUS-144927
...
2
Bolt Hex Head 1/4-20 x 3/4 HUS-74760412
...
8
Box Battery HUS-186491
...
16
Switch Interlock Push-In HUS-176138
...
21
Harness Socket Light W/4152J HUS-175688
...
22
Bulb Light HUS-4152J
...
24
Cable Battery HUS-400253
...
25
Cable Start Red HUS-198893
...
26
Fuse HUS-175158
...
27
Nut Keps Hex 1/4-20 unc HUS-73510400
...
28
Cable, Ground HUS-145491
...
29
Switch, Seat HUS-401545
...
30
Switch, Ignition HUS-193350
...
33
Key, Ignition HUS-140401
...
34
Switch Light / Reset HUS-110712X
...
40
Harness Ignition HUS-194276
...
41
Screw Thd Cut 1/4-20 x 1/2 HUS-17720408
...
42
Cover, Terminal HUS-131563
...
43
Solenoid HUS-192507
...
46
Gauge Hourmeter HUS-198138
...
50
Switch, PTO HUS-174653
...
55
Screw Thdrol 5/16-18 x 3/4 TYTT HUS-17490512
...
59
Outlet 12-Volt HUS-400303
...
71
Harness Ign. Dash HUS-400260
...
79
Bulbholder Asm. Incan Descent HUS-175242
...
90
Cover Terminal Battery HUS-400724
...
91
Strap Battery Mount Front HUS-190270
...
99
Screw Hexwsh Thdrol 1/4-20 x 3/4 HUS-17670412
...
100
Washer 9/32 x 7/8 x 16 Ga. HUS-19091416
...
100
Harness Pigtail Trans. HUS-404454
