Husqvarna PBGT22H54 (2006-03) Tractor/Ride Mower

Model: PBGT22H54 (2006-03)

Back To Assemblies

Save Part Not Listed?
product name

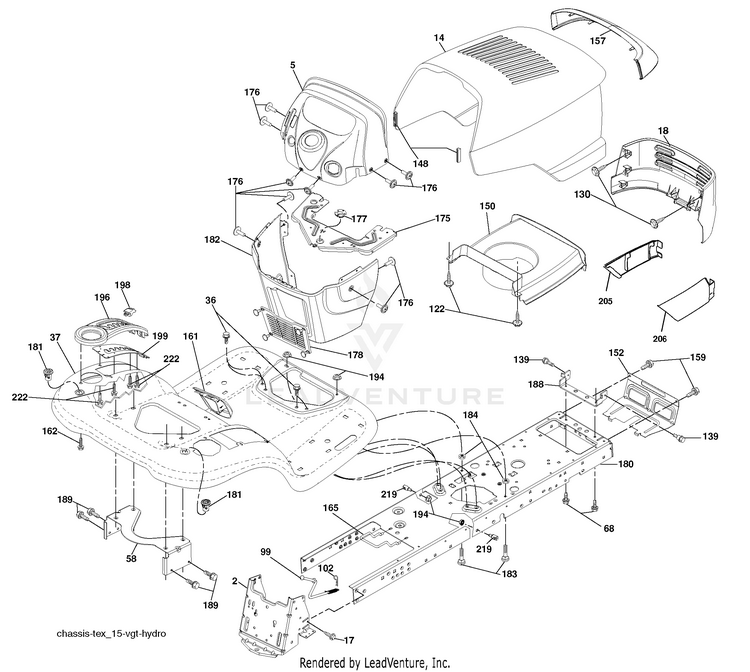

Chassis

...
...
2
Drawbar HUS-401140
...
5
Dash HUS-195102X428
...
14
Hood HUS-175260X428
...
17
Screw 3/8-16 x .75 HUS-17060612
...
18
Grille HUS-175289X428
...
36
Screw 5/16-18 x 3/4 HUS-17060512
...
37
Fender HUS-400009X428
...
58
Bracket Fender HUS-194314
...
68
Screw Thdrol 5/16-18 x 1/2 HUS-17490508
...
99
Rod Bypass Asm. HUS-401996
...
102
Retainer Spring 1" HUS-4497H
...
122
Screw WSHD Hex 10-32 x 5/8 HUS-192512
...
130
Screw 10 x 3/4 Single Lead-Hex HUS-191611
...
139
Bolt Shoulder 5/16-18 HUS-171873
...
148
Bumper HUS-164655
...
150
Duct Heat Hood HUS-175351
...
152
Shield Browning/Debris HUS-194329
...
157
Lens Bar HUS-179761
...
159
Screw Hexwsh Thdrol 3/8-16 x 3/4 HUS-17000612
...
161
Console Fuel Window HUS-193097X428
...
162
Screw Hex Wsh Hi-Lo 1/4 x 1/2 HUS-142432
...
165
Bracket Support Tank HUS-194330
...
175
Crossmember HUS-193236
...
176
Screw #10-24 x 5/8 Rnd Qudrx HUS-400776
...
177
Bushing Steering HUS-195227
...
178
Cargo Asm. Net HUS-195651
...
180
Chassis HUS-194260
...
181
Bushing Mtg. Fender Crgo. HUS-193102X428
...
182
Dash Lower HUS-192551
...
183
Bolt Fin Hex 5/16-18UNC x 1-1/4 HUS-74780520
...
184
Spacer Fender HUS-195780
...
188
Bracket Pickoff Hood HUS-194316
...
189
Screw 5/16-18 x 3/4 HUS-17000512
...
194
Nut Lock Hex Flange 5/16-18 HUS-73900500
...
196
Console Asm. Deck Lift HUS-193098X428
...
198
Indicator Deck Lift HUS-197300X505
...
199
Plate Deck Lift HUS-196377
...
205
Skirt Hood RH HUS-169847X428
...
206
Skirt Hood LH HUS-169848X428
...
219
Stud Fastener HUS-195161
...
222
Screw thd Roll 1/4-20 x 5/8 HUS-137729
