Husqvarna PB2042YT, 96042011200 (2010-01) Tractor/Ride Mower

Model: PB2042YT, 96042011200 (2010-01)

Back To Assemblies

Save Part Not Listed?
product name

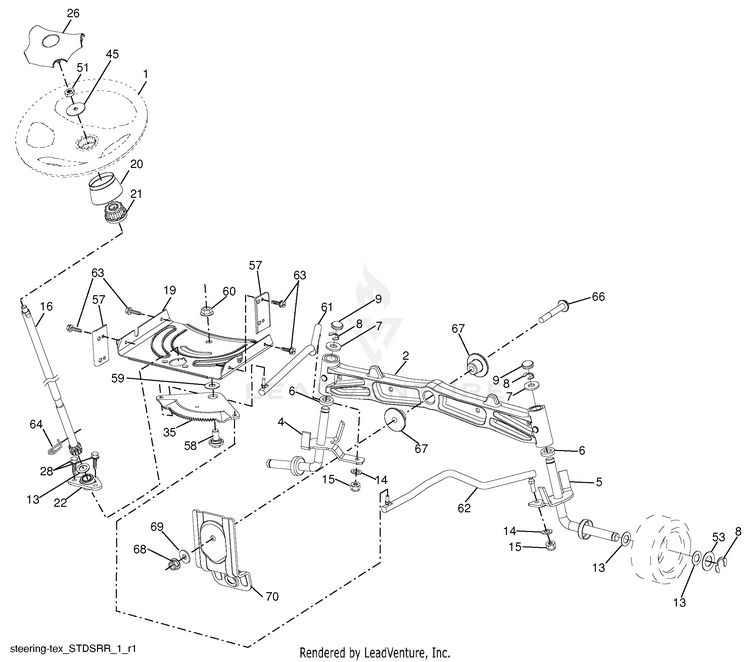

Steering Assembly

...
...
1
Wheel, Steering HUS-414851X421
...
2
Axle Asm., Front HUS-195968
...
4
Spindle Asm., LH HUS-403087
...
5
Spindle Asm., RH HUS-403088
...
6
Bearing, Race Thrust Harden HUS-6266H
...
7
Washer 25/32 x 1-5/8 x 16 Ga. HUS-121748X
...
8
Ring, Clip #T5304-75 HUS-12000029
...
9
Cap, Spindle HUS-121232X
...
13
Washer 25/32 x 1-1/4 x 16 Ga. HUS-121749X
...
14
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
15
Nut, Crown Lock 3/8-24 unf HUS-73540600
...
16
Shaft Steering HUS-408219
...
19
Plate Steering HUS-194729
...
20
Boot, Steering HUS-199743X428
...
21
Adapter, Wheel Steering HUS-186737
...
22
Steering Support Lower HUS-420537
...
26
Insert, Wheel Steering HUS-414854X421
...
28
Screw 3/8-16 x 3/4 HUS-17000612
...
35
Gear, Sector Plate HUS-194732
...
45
Washer 9/16 ID x 2-3/8 x 12 Ga. HUS-19183812
...
51
Nut Hex Jam Toplock 1/2-20 unf HUS-73940800
...
53
Washer Hardened .793 x 1.637 x .060 HUS-188967
...
57
Bracket Upstop HUS-407465
...
58
Bolt Shoulder Sector Pivot CFM HUS-194747
...
59
Washer Thrust Sector Steering HUS-194748
...
60
Nut Flange Lock 5/8-11 HUS-73971000
...
61
Draglink, LH HUS-194740
...
62
Draglink, RH HUS-194741
...
63
Screw 5/16-18 x 3/4 HUS-17000512
...
64
Retainer Clip Spring Steering HUS-199849
...
66
Bolt Hex Fghd 7/16-14 x 3 Serr HUS-71020748
...
67
Bushing PM Front Axle HUS-194737
...
68
Nut Lock Flange 7/16-14 Gr. 5 HUS-73900700
...
69
Washer 1.5 x .505 x .118 HUS-199162
...
70
Bracket Deck Susp. Front HUS-196197
