Husqvarna PB2042YT, 96042011200 (2010-01) Tractor/Ride Mower

Model: PB2042YT, 96042011200 (2010-01)

Back To Assemblies

Save Part Not Listed?
product name

Mower Lift

...
...
2
Shaft Asm., Lift HUS-422027
...
3
Lever Asm., Lift RH HUS-195231
...
7
Grip, Lever HUS-196492X428
...
10
Spring Torsion HUS-196314
...
87
Pin Cotter 7/16 Bow Tie Lock HUS-194209
...
88
Spring Lift Assist HUS-410710
...
89
Washer Clear Zinc HUS-19191912
...
90
Pin Cotter 5/16 Bow Tie Lock HUS-194208
...
91
Link Asm. Lift Rear HUS-195181
...
97
Screw 3/8-16 x .75 Smgml Tap/R.Z HUS-17000612
...
98
Link Lift Susp. Front Mower HUS-195270
...
100
Nut Centerlock 3/8-16 unc HUS-73930600
...
101
Link Asm. Lift Fixed HUS-407003

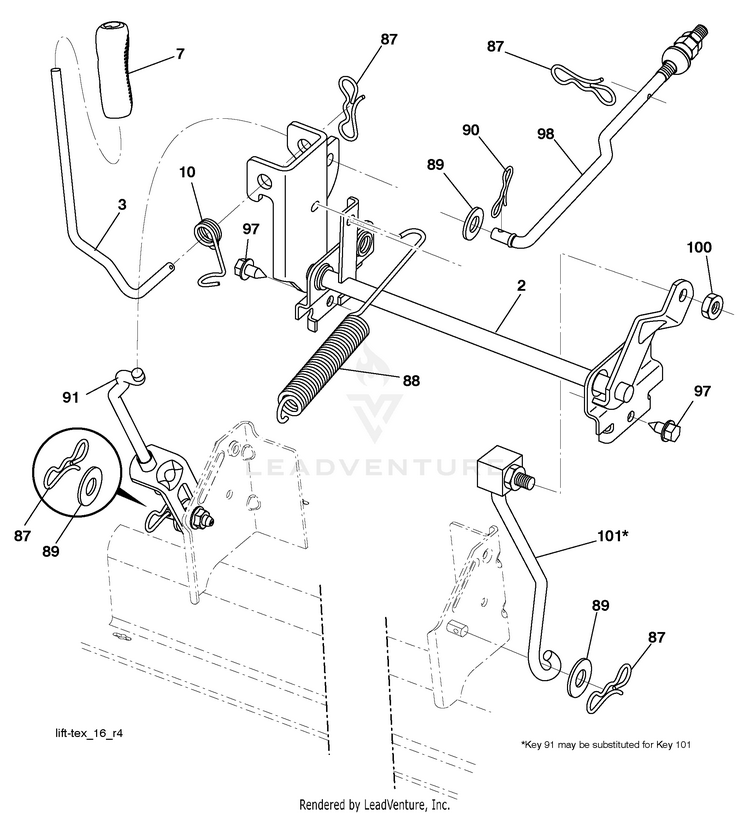

Schematic Image Zoomed
