Husqvarna PB2042YT, 96042011200 (2010-01) Tractor/Ride Mower

Model: PB2042YT, 96042011200 (2010-01)

Back To Assemblies

Save Part Not Listed?
product name

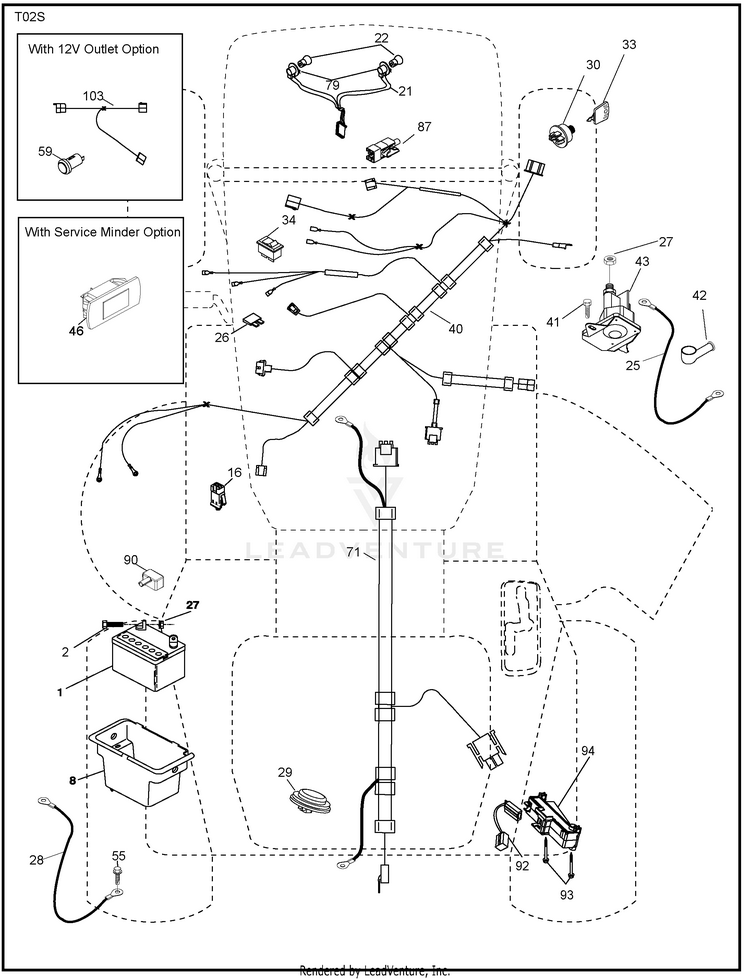

Electrical

...
...
1
Battery HUS-163465
...
2
Bolt Hex Head 1/4-20 x 3/4 HUS-74760412
...
8
Box Battery HUS-193228
...
16
Switch Interlock Push-In HUS-176138
...
21
Harness Socket Light w/4152J HUS-183759
...
22
Bulb Light HUS-4152J
...
25
Cable Starter HUS-412894
...
26
Fuse HUS-175158
...
27
Nut Keps Hex 1/4-20 unc HUS-73510400
...
28
Cable, Ground HUS-198885
...
29
Switch, Seat HUS-401545
...
30
Switch, Ignition HUS-193350
...
33
Key/Chain HUS-411935
...
34
Switch Light/Reset HUS-110712X
...
40
Harness Ignition Dash HUS-401098
...
41
Screw Thd Cut 1/4-20 x 1/2 HUS-17720408
...
42
Cover, Terminal HUS-131563
...
43
Solenoid HUS-192507
...
46
Gauge SRVCMNDR HRMTR HUS-401763
...
55
Screw Thdrol 5/16-18 x 3/4 TYTT HUS-17060512
...
71
Harness Ignition HUS-400449
...
79
Socket Asm Bulb Twistlock HUS-175242
...
87
Switch Interlock Clutch Cable HUS-197802
...
90
Cover Terminal Battery HUS-400725
...
92
Harness Pigtail Console ROS HUS-196615
...
93
Screw Plastite 10-14 x 2.0 HUS-192540
...
94
Module Reverse ROS HUS-191834
