Husqvarna PB1842LT, 96012004500 (2006-01) Tractor/Ride Mower

Model: PB1842LT, 96012004500 (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

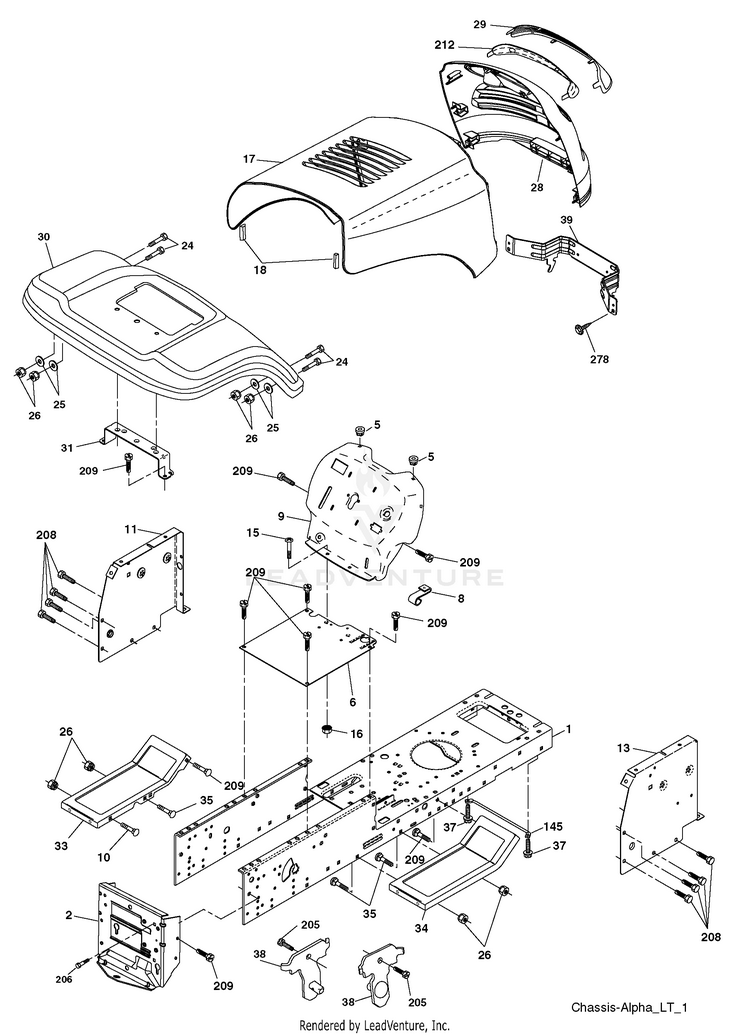

Chassis

...
...
1
Chassis HUS-174620
...
2
Drawbar, Stretch HUS-176554
...
5
Bumper, Hood/Dash HUS-155272
...
6
Saddle HUS-184419
...
8
Clip Retainer Slide-On HUS-155138
...
9
Dash HUS-193518X013
...
10
Bolt, Carriage 3/8-16 x 1 HUS-72140608
...
11
Panel Dash LH HUS-174996
...
13
Panel Slkscr Dash RH HUS-172105X010
...
15
Screw Mach TRHD 5/16-18 unc x 3/4 HUS-74180512
...
16
Nut Keps 5/16-18 unc HUS-73510500
...
17
Hood HUS-187559X428
...
18
Bumper Hood HUS-184921
...
24
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 HUS-74780616
...
25
Washer 13/32 x 13/16 x 12 Ga. HUS-19131312
...
26
Nut Lock Hex w/Ins 3/8-16 unc HUS-73800600
...
28
Grille/Lens Asm. (Include Key Nos. 29 and 212) HUS-187598
...
29
Lens Grille Bar HUS-187567X599
...
30
Fender HUS-192525X428
...
31
Bracket Fender Repl 109873X HUS-136619
...
33
Footrest Pnt LH HUS-179716X428
...
34
Footrest Pnt RH HUS-179717X428
...
35
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 HUS-72110606
...
37
Screw Thdrol 5/16-18 x 1/2 TYT HUS-17490508
...
38
Bracket Asm. Pivot Mower HUS-175710
...
39
Bracket Pivot HUS-187568
...
145
Rod Pivot Chassis/Hood HUS-156524
...
205
Screw Thdrol 3/8-16 x 1/2 HUS-17490608
...
206
Bolt Shoulder 5/16-18 HUS-170165
...
208
Screw Thdrol 3/8-16 x 1/2 HUS-17670608
...
209
Screw Hex Wsh Thdrol 3/8-16 HUS-17000612
...
212
Insert Lens Reflect HUS-187569
...
278
Screw 10 x 3/4 Single Lead Hex HUS-191611
...
278
Plug Button Blk 359 Dia Choke HUS-5479J
...
278
Plug Dome Plastic HUS-187801
