Husqvarna PB1638LT, 96012004401 (2006-10) Tractor/Ride Mower

Model: PB1638LT, 96012004401 (2006-10)

Back To Assemblies

Save Part Not Listed?
product name

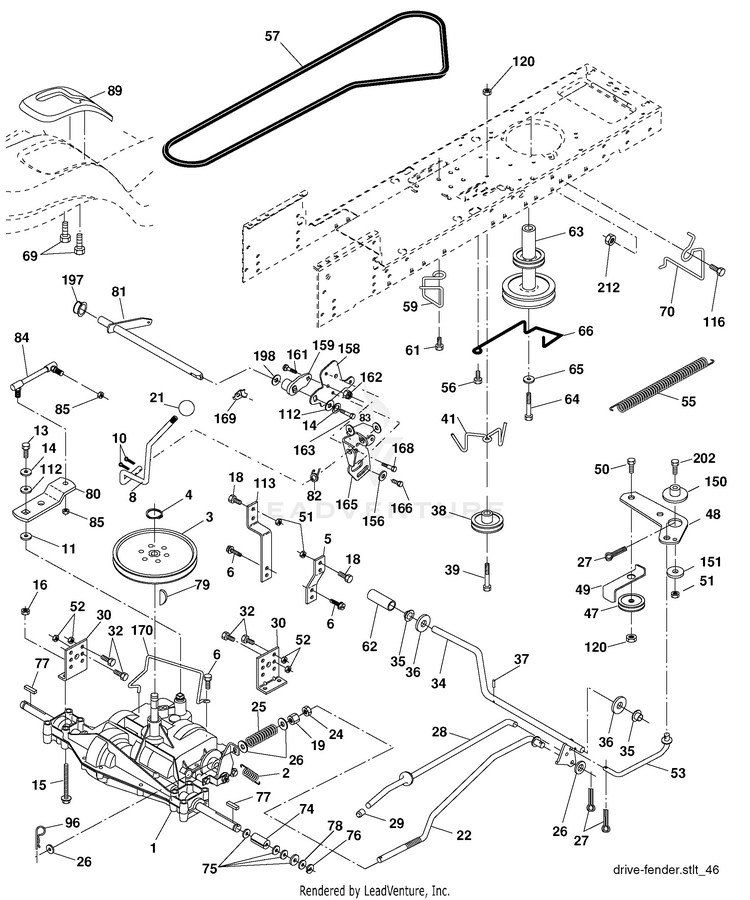

Drive

...
...
2
Spring Brake Return HUS-146682
...
3
Pulley Transaxle HUS-123666X
...
4
Ring Retainer HUS-12000028
...
5
Strap Torque 30 Degrees HUS-121520X
...
6
Screw 5/16-18 x 3/4 HUS-17000512
...
8
Rod Shift Fender Adjust HUS-192706
...
10
Pin Cotter 1/8 x 1 CAD HUS-76020416
...
11
Washer Plate Shift HUS-105701X
...
13
Bolt 1/4-28 unf Gr. 8 W/Patch HUS-74550412
...
14
Washer Lock Hvy Helical HUS-10040400
...
15
Bolt Hex FLGHD 5/16-18 x Gr. 5 HUS-74490544
...
16
Nut Lock Hex W/Ins. 5/16-18 unc HUS-73800500
...
18
Bolt Fin Hex 3/8-16 x 1 Gr. 5 HUS-74780616
...
19
Nut Lock Hex W/Wsh 3/8-16 unc HUS-73800600
...
21
Knob HUS-106933X
...
22
Rod, Brake HUS-130804
...
24
Nut, Hex Jam 3/8-16 unc HUS-73350600
...
25
Spring, Brake Rod HUS-106888X
...
26
Washer 13/32 x 13/16 Ga. HUS-19131316
...
27
Pin Cotter 1/8 x 3/4 CAD. HUS-76020412
...
28
Rod, Parking Brake HUS-175765
...
29
Cap, Parking Brake HUS-71673
...
30
Bracket, Transaxle HUS-174973
...
32
Bolt Hex Hd 5/16-18 unc x 3/4 HUS-74760512
...
34
Shaft, Foot Pedal HUS-175578
...
35
Bearing, Nylon HUS-120183X
...
36
Washer HUS-19211616
...
37
Pin, Roll HUS-1572H
...
38
Pulley, Composite, Flat HUS-179114
...
39
Bolt Fin Hex 3/8-16 x 2-3/4 HUS-72110622
...
41
Keeper, Belt Idler HUS-175556
...
47
Pulley, Idler, V-Groove HUS-127783
...
48
Bellcrank, Clutch HUS-154407
...
49
Retainer, Belt HUS-123205X
...
50
Bolt Carr 3/8-16 x 1-1/2 HUS-72110612
...
51
Nut Crownlock 3/8-16 unc HUS-73680600
...
52
Nut, Crownlock 5/16-18 unc HUS-73680500
...
53
Link, Clutch HUS-199652
...
55
Spring, Return, Clutch HUS-105709X
...
56
Screw 3/8-16 x 1-1/4 HUS-17060620
...
57
V-Belt HUS-160855
...
59
Keeper, Center Span HUS-169691
...
61
Screw, 3/8-16 x .875 HUS-17120614
...
62
Cover, Pedal HUS-8883R
...
63
Pulley, Engine HUS-175410
...
64
Bolt Hex 7/16-20 x 4 Gr. 5-1.5 HUS-173937
...
65
Washer Lock 7/16 HUS-10040700
...
66
Keeper Belt Engine Hydro HUS-154778
...
69
Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc HUS-142432
...
70
Keeper Belt Engine HUS-134683
...
74
Spacer HUS-109502X
...
75
Washer 25/32 x 1-1/4 x 16 Ga. HUS-121749X
...
76
E-Ring HUS-12000001
...
77
Key, Square HUS-123583X
...
78
Washer 25/32 x 1-5/8 x 16 Ga. HUS-121748X
...
79
Key Woodruff HUS-2228M
...
80
Arm Shift HUS-131488
...
81
Shaft Asm Cross Tapered HUS-165594
...
82
Spring Torsion HUS-165711
...
83
Washer 17/32 x 3/4 x 16 Ga. HUS-19171216
...
84
Link Transaxle HUS-166229
...
85
Nut Lock Center 1/4-20 HUS-150360
...
89
Console, Shift HUS-192054X428
...
96
Retainer Spring 1" Zinc/Cad HUS-4497H
...
112
Washer 9/32 x 3/4 x 10 Ga. HUS-19091210
...
113
Strap Torque 90 Degrees HUS-127285X
...
116
Bolt Rdhd Sqneck 3/8-16 x 1.25 HUS-72140608
...
120
Nut Lock Flg 3/8-16 HUS-73900600
...
150
Spacer Retainer HUS-175456
...
151
Washer 13/32 x 2 x 10 Ga. HUS-19133210
...
156
Washer Srrted 5/16 ID x 1.125 HUS-166002
...
158
Bracket Shift Mount HUS-165589
...
159
Hub Shift HUS-183900
...
161
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5 HUS-72140406
...
162
Nut Crownlock 1/4-20 unc HUS-73680400
...
163
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 HUS-74780416
...
165
Bracket Pivot Lever HUS-165623
...
166
Screw 5/16-18 x 5/8 HUS-17490510
...
168
Bolt Shoulder 5/16-18 x .561 HUS-165492
...
169
Plate Fastening HUS-165580
...
170
Keeper Belt T/A HUS-187414
...
197
Nyliner Snap-In 5/8’’ID HUS-169613
...
198
Washer Nyl HUS-169593
...
202
Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5 HUS-72110614
...
212
Nut Hex Flg. Lock HUS-145212
