Husqvarna PB1638LT, 96012004401 (2006-10) Tractor/Ride Mower

Model: PB1638LT, 96012004401 (2006-10)

Back To Assemblies

Save Part Not Listed?
product name

Engine

...
...
1
Control Th/ch Flag HUS-170551
...
2
Screw Hex Thd Cut 1/4-20 x 1/2 HUS-17720408
...
4
Muffler Exhaust B&S HUS-137352
...
13
Gasket Eng 1 313 Id Tin Plated HUS-165291
...
14
Tube Drain Oil Easy HUS-148456
...
23
Shield BRN/DBR Guard HUS-169837
...
29
Kit Spark Arrestor (Flat Scrn) HUS-137180
...
31
Tank Fuel Front HUS-187750
...
32
Cap Asm Fuel HUS-140527
...
33
Clamp Hose HUS-123487X
...
37
Line Fuel 20" HUS-401137
...
38
Plug Drain Oil HUS-181654
...
40
Bushing Snap Nyl Blk Fuel Line HUS-124028X
...
44
Screw Thdrol 1/4-20 x 3/4 HUS-17670412
...
45
Screw Hex Wsh Thdrol 3/8-16 HUS-17000612
...
46
Washer 9/32 x 7/8 x 16 Ga. HUS-19091416
...
62
Washer Split HUS-10010500
...
72
Screw Socket Hd 5/16-18 x .75 HUS-192334
...
78
Screw 3/8-16 x 1-1/4 HUS-17060620
...
81
Nut Keps Hex 1/4-20 unc HUS-73510400

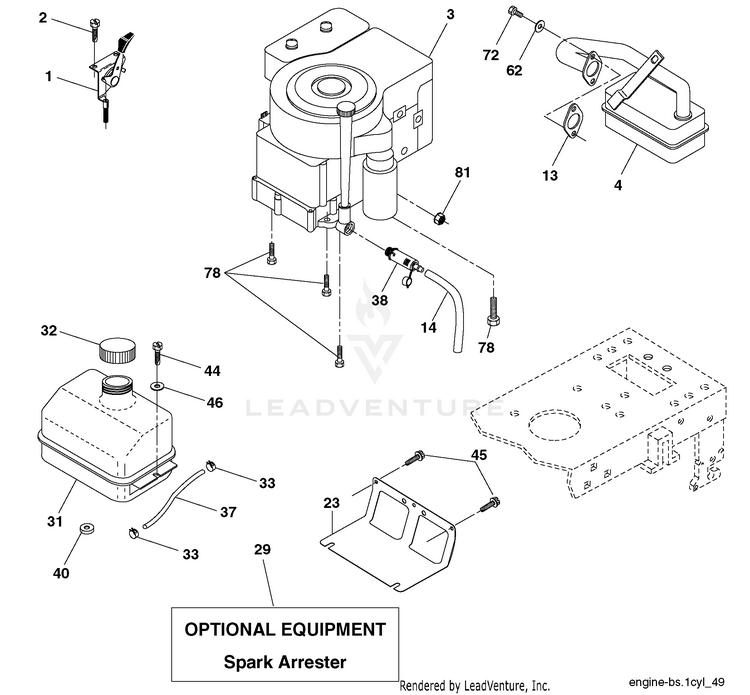

Schematic Image Zoomed
