Husqvarna PB 19546 LT (96042003500) (2008-02) Ride Mower

Model: PB 19546 LT (96042003500) (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

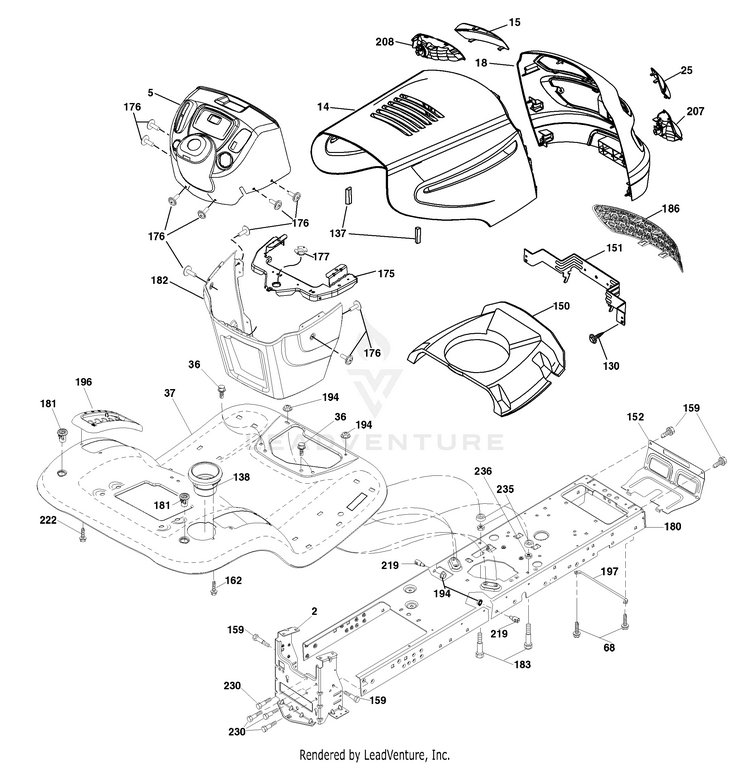

Chassis

...
...
2
Drawbar HUS-194263
...
5
Dash HUS-197783X428
...
14
Hood HUS-183393X428
...
15
Lens Grille LH HUS-183834X599
...
18
Grille HUS-183828
...
25
Lens Grille RH HUS-183835X599
...
36
Screw 5/16-18 x 3/4 HUS-17060512
...
37
Fender HUS-193218X428
...
68
Screw Thdrol 5/16-18 x 1/2 HUS-17490508
...
130
Screw 10 x 3/4 Single Lead-Hex HUS-191611
...
137
Bumper Hood HUS-184921
...
138
Cupholder HUS-193224X428
...
150
Duct Heat Hood HUS-184322
...
151
Bracket Pivot HUS-407807
...
152
Shield Browning/Debris HUS-194329
...
159
Screw Hexwsh Thdrol 3/8-16 x 3/4 HUS-17000612
...
162
Screw Hex Wsh Hi-Lo 1/4 x 1/2 HUS-142432
...
175
Crossmember HUS-193243
...
176
Screw 10-24 x 5/8 Wshd Qdrx HUS-400776
...
177
Bushing Steering HUS-195228
...
180
Chassis HUS-194260
...
181
Bushing Mtg. Fender Crgo. HUS-193102X428
...
182
Dash Lower HUS-193057
...
183
Bolt Fin Hex 5/16-18 x 1-1/4 HUS-74780520
...
186
Insert Grille HUS-183829X428
...
194
Nut Lock Hex Flange 5/16-18 HUS-73900500
...
196
Console Asm. Deck Lift HUS-410584
...
197
Rod Pivot Chassis HUS-156524
...
207
Bezel Grille RH HUS-183833
...
208
Bezel Grille LH HUS-183832
...
219
Stud Fastener HUS-195161
...
222
Screw Thd Roll 1/4-20 x 5/8 HUS-137729
...
230
Bolt Shoulder 5/16-18 HUS-170165
...
235
Spacer Fender HUS-406129
...
236
Nut center Lock 5/16-18 HUS-73930500
