Husqvarna PB 19546 LT (96042003500) (2008-02) Ride Mower

Model: PB 19546 LT (96042003500) (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

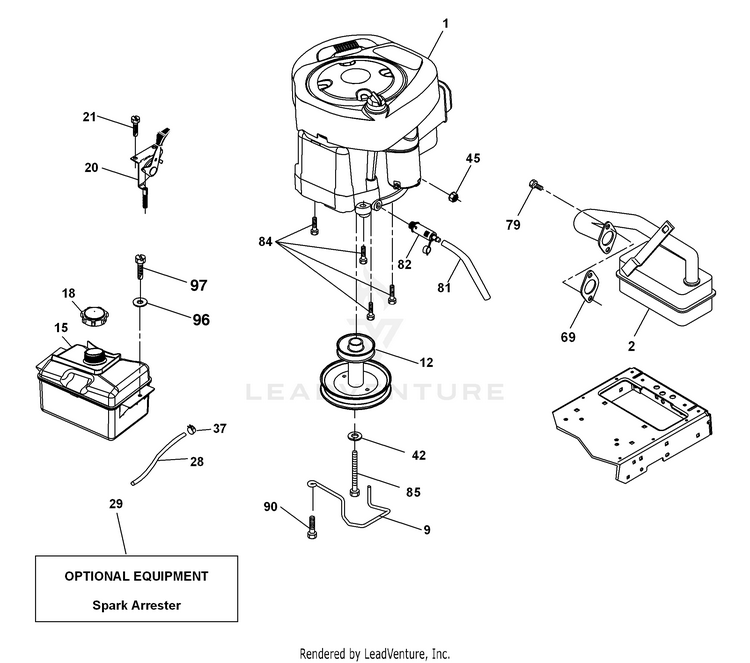

Engine

...
...
2
Muffler HUS-137352
...
9
Keeper Belt Engine HUS-194319
...
12
Pulley Engine HUS-405140
...
15
Tank Fuel 1.50 HUS-407545
...
18
Cap Asm HUS-197725
...
20
Control Throttle/Choke HUS-176636X421
...
21
Screw 10 x 3/4 Single Lead-Hex HUS-191611
...
28
Fuel Line HUS-401137
...
29
Spark Arrester Kit HUS-137180
...
37
Clamp Hose HUS-123487X
...
42
Washer Lock 7/16 HUS-10040700
...
45
Nut Keps Hex 1/4-20 unc HUS-73510400
...
69
Gasket HUS-165291
...
79
Screw Socket Hd 5/16-18 x .75 HUS-192334
...
81
Tube Drain Oil Easy HUS-148456
...
82
Plug Drain Oil HUS-181654
...
84
Screw 3/8-16 x 1-1/4 HUS-17060620
...
85
Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 HUS-173937
...
90
Screw 3/8-16 x 1.0 HUS-17000612
...
96
Washer 9/32 x 7/8 x 16 Ga. HUS-19091416
...
97
Screw 1/4-20 x 3/4 HUS-17670412
